Alvin Children's Adjustable-Height Easel CE101 Assembly Instructions

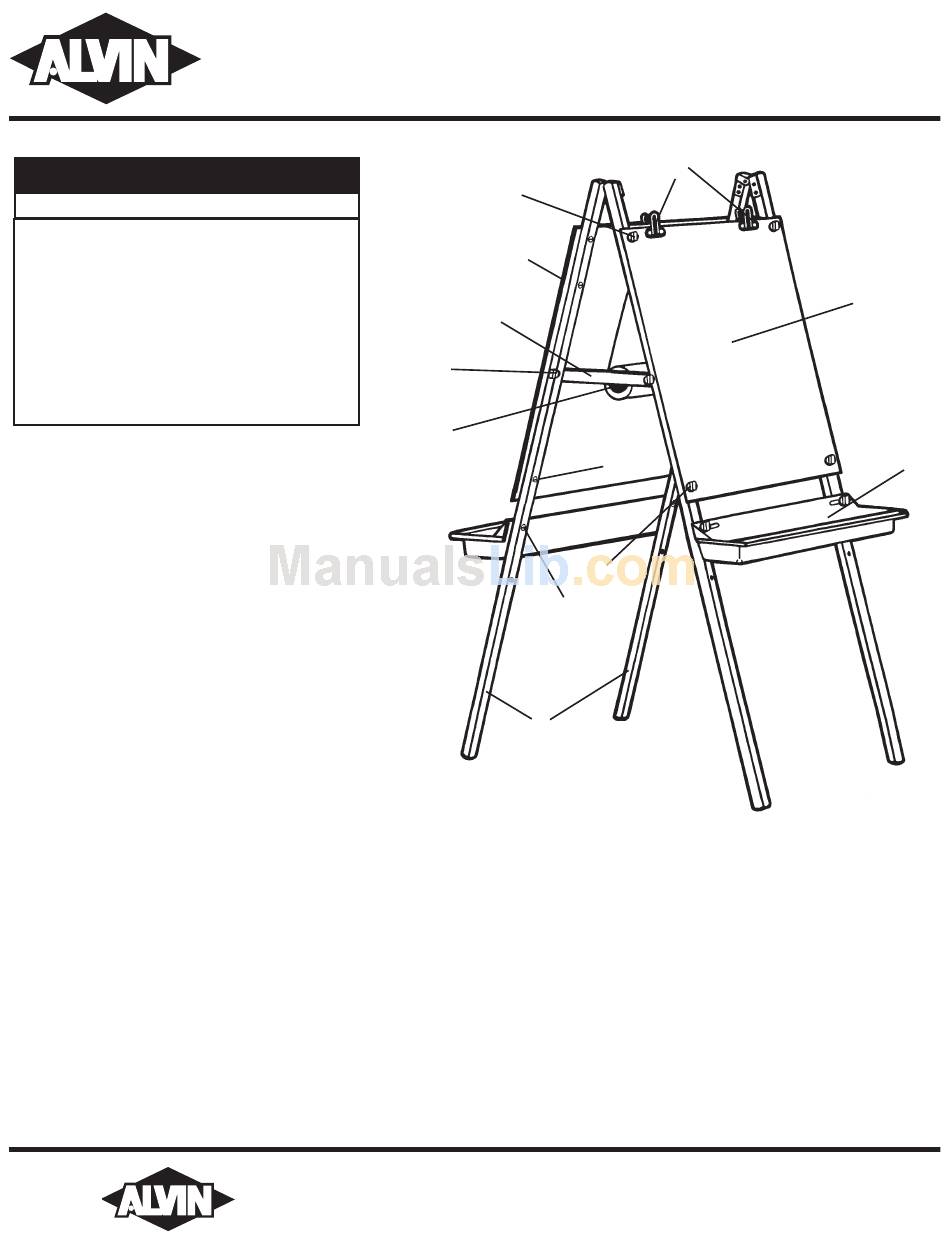

PARTS LIST

Key Qty. Description
A 2 Sets of Hinged Legs
B 2 Leg Cross Bars
C 2 Plastic Storage Trays
D 1 Green Chalkboard
E 1 White Dry Erase Board
F 1 Paper Roll Holder
G 4 2" Bolts
H 8 1 1 ⁄ " Bolts
2
I 16 Plastic Bolt Caps
J 2 Jumbo Paper Clips
K 4 1 ⁄ " Bolts
1
4
ASSEMBLY INSTRUCTIONS
1. Before assembly, check to see that you
have all parts shown on list.
2. Lay one of the hinged legs sets (A)
on the floor with the hinges facing up.
3. Open the legs and lay one of the leg
cross bars (B) with the notched side
facing you and the opening of the notch
pointing towards the hinges.
4. Align the holes and insert a 2" bolt (G).
Fasten with plastic bolt cap (I). Bolt
cap should be on the opposite side of leg
from the hinge.
5. Repeat for other set of legs.
6. Position both sets of legs in the upright
position with hinges facing one another.
7. Based on the height of the children to be
using the easel, determine whether the
upper set or the lower set of holes will be
used to mount the 2 boards.
8. Attach the green chalkboard (D) to one
side of the legs using 4 of the 1
(H) and bolt caps (I).
Assembly Instructions for CE101
Children's Adjustable-Height Easel
G
F
9. Align one of the plastic storage trays (C) with the set of
10. Repeat steps 8 and 9 to attach the white board (E) and
11. Place the paper roll holder (F) into the notches in each
1 ⁄ " bolts
2
Alvin & Company, Inc.
I
E
B
H
I
K
A
holes just below the chalkboard (D) and attach to legs
using 1 " bolts (Part K) and caps (I).
1 ⁄
4
storage tray (C) on the opposite side.
of the leg cross bars (B).
Bloomfield, CT
www.alvinco.com
