Homelite UT10544 Repair Sheet

14 in. 35cc chain saw; 16 in. 38cc chain saw; 18 in. 42cc chain saw
Hide thumbs Also See for UT10544:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Operator's Manual
HOMELITE

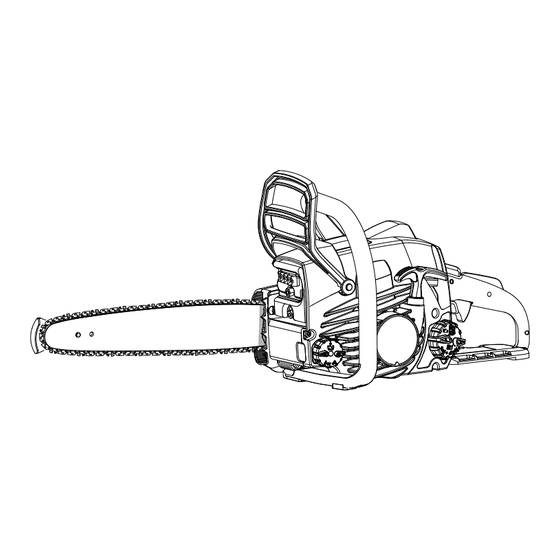

UT10544, UT10546 / 14 in. 35cc CHAIN SAW
UT10564, UT10566 / 16 in. 38cc CHAIN SAW
UT10584, UT10586 / 18 in. 42cc CHAIN SAW
(ALL VERSIONS)
REPAIR SHEET

Advertisement

loading

Related Manuals for Homelite UT10544

Summary of Contents for Homelite UT10544

  • Page 1 HOMELITE UT10544, UT10546 / 14 in. 35cc CHAIN SAW UT10564, UT10566 / 16 in. 38cc CHAIN SAW UT10584, UT10586 / 18 in. 42cc CHAIN SAW (ALL VERSIONS) REPAIR SHEET...
  • Page 2 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) Figure A (See Figure C) 14 15 16...

  • Page 3: Parts List

    HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your CHAIN SAW or when ordering repair parts.
  • Page 4 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) Figure B (See Figure D) 30 43 42 44...
  • Page 5 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your CHAIN SAW or when ordering repair parts.
  • Page 6 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) Figure C PARTS LIST (FIGURE PART PART NUMBER DESCRIPTION NUMBER DESCRIPTION 518796001 Clutch Cover Ring ............. 1 610711001 Chain Adjustment Gear ..........1 518767001 Adjustment Knob ............1 678072001 Adjustment Rod ............
  • Page 7 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) Figure D...
  • Page 8 HOMELITE 35cc/38cc/42cc CHAIN SAWS MODEL NOs. UT10544, UT10546, UT10564, UT10566, UT10584, UT10586 (ALL VERSIONS) The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your CHAIN SAW or when ordering repair parts.

This manual is also suitable for:

Ut10546Ut10564Ut10566Ut10584Ut10586
