Ferris Derby Colts 48607 Parts List

This kit replaces the roller
mounts with a new version
that includes bushings to
provide extended usage and
reduce wear.
REF NO. PART NO.
1 2848604
2 25126
3 25011-10
4 25155
5 23155
6 25154
7 25010-6
8 22845
9 20594
10 25095
11 2846901
12 22846
13 25010-10
14 20441
15 20785
16 2848603
17 2846900
18 25139
19 46903
© Copyright 2003 Ferris Industries. All Rights Reserved.
1 2
5
6
7
8
9
10
11 12 13
QTY. DESCRIPTION
1 MOUNT, Striper-RH
8 NUT, Hex Serrated Flange, 1/4-20
4 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
4 WASHER, 5/16
4 BUSHING
8 WASHER, 1/4
8 CAPSCREW, Hex Head, 1/4-20 x 3/4
2 SPRING, Compression
2 COLLAR, Double Split, 3/4
4 NUT, Hex, Nylon Lock, 1/4-20
1 SHAFT, Striper Guide-RH
2 BEARING, Flange, 5/8
4 CAPSCREW, Hex Hd, 1/4-20 x 1-1/4
3 COLLAR, Split, 5/8
2 ROLLER
1 MOUNT, Striper-LH
1 SHAFT, Striper Guide-LH
4 NUT, Hex, Serrated Flange, 5/16-18
1 SHAFT, Roller Mount

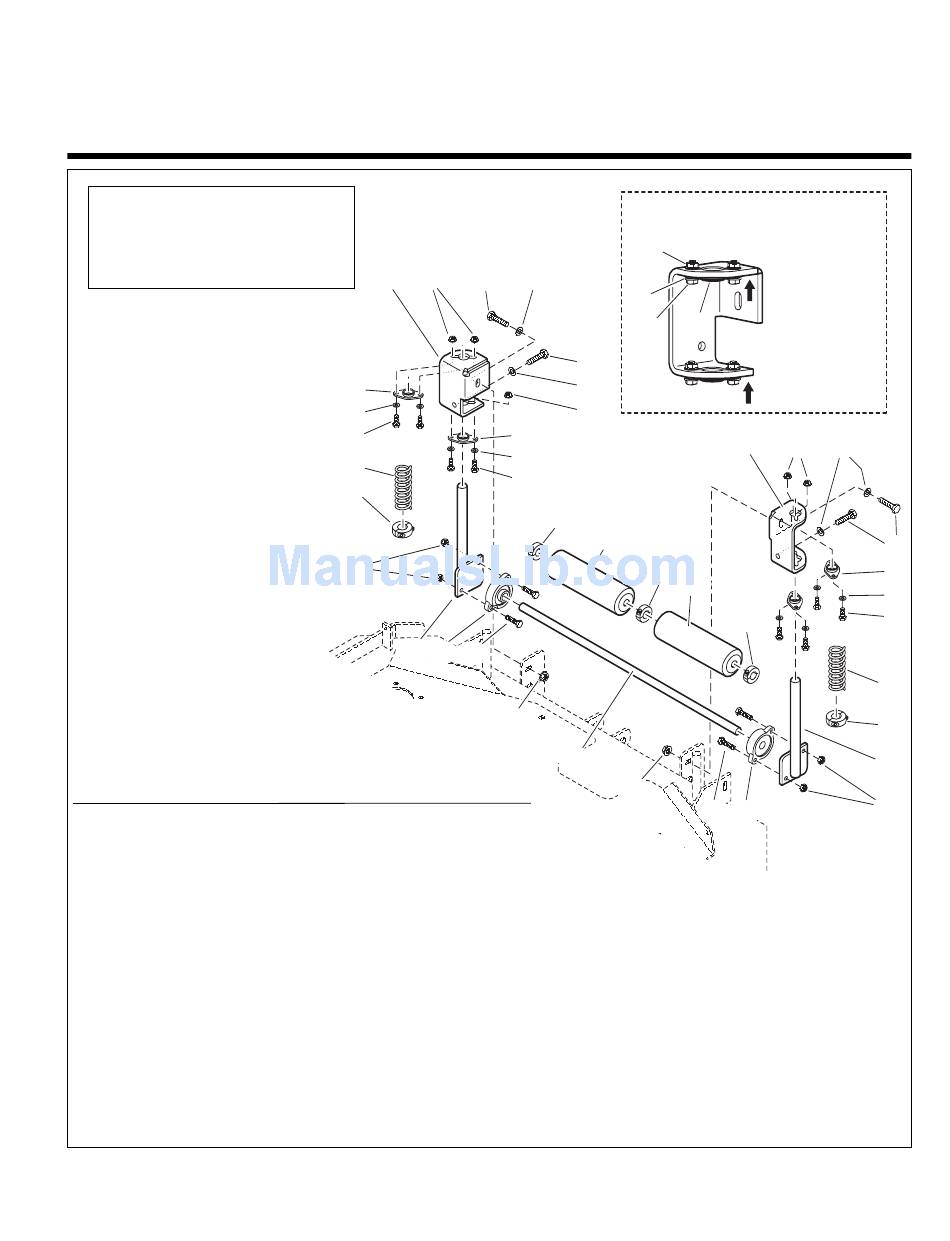

Striper Roller Upgrade Kit
2
3 4
6
7
3
4
2
5
6
7
14
15
18
19
18
1
Part No. 48607
For All Derby Colts
Mount/Bushing
Assembly Detail
Bushing must
5
be assembled
from this side.
(see arrows)
16
2
14
15
14
13 12
Rev. 02/2003
TP 200-7122-00-SK-D
3
4
5
6
7
8
9
17
10
48616
