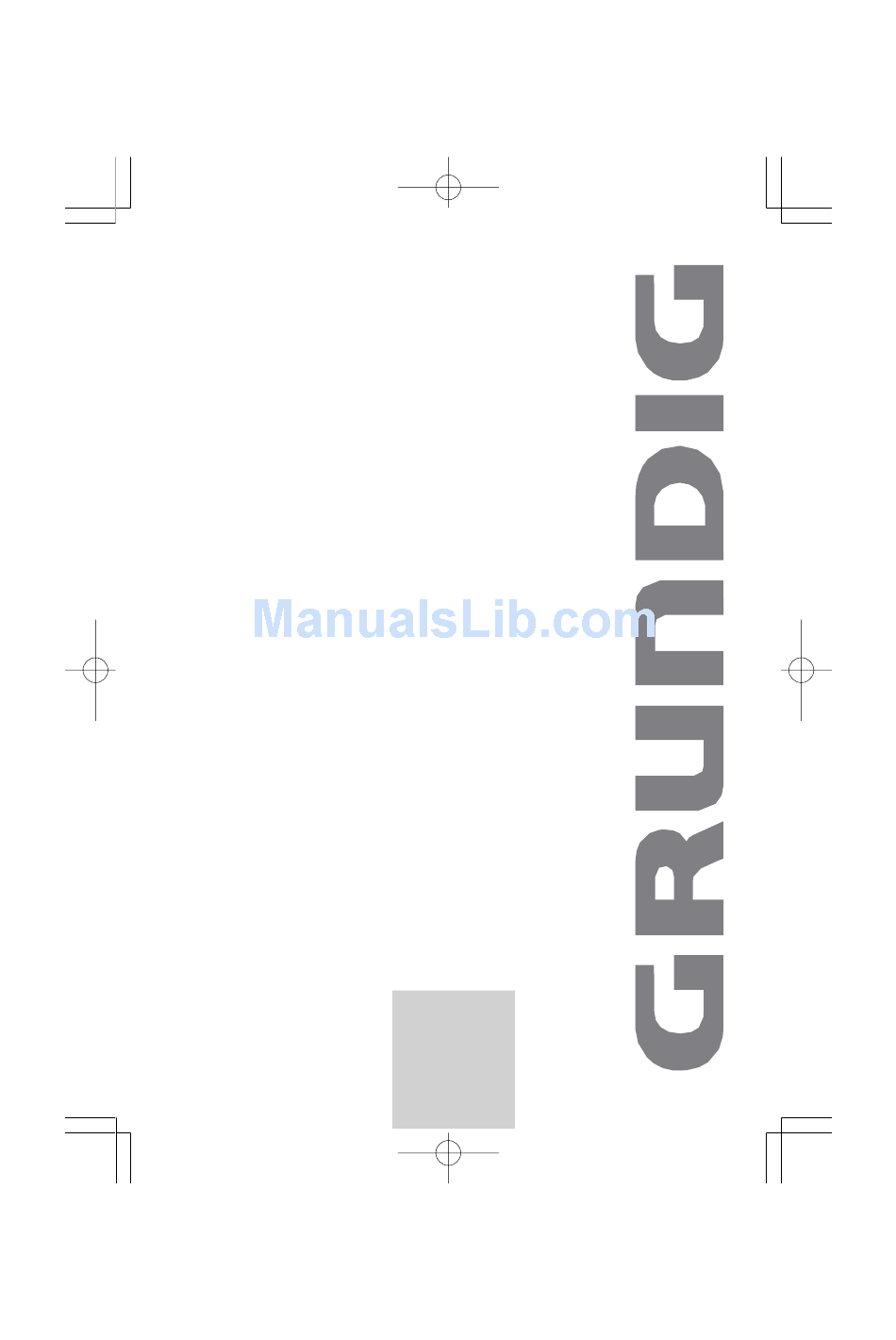

  • Page 1 PROTABLE DVD PLAYER DVD-P 7644 ENGLISH...

  • Page 3: Table Of Contents

    Content A. Introduction ............ 1 B. Cautions and Warnings ........1 C. Contents ............4 D. Powering and installation ........ 6 E. Controls, Indicators, and Connectors ....7 F. Loading and Playing a Disc ......8 G. Setup............. 9 H. Basic Operation ..........15 I.

  • Page 4: Introduction

    You no longer need to worry about bringing your entertainment with you; rain and splashes from the kids at the pool are no match for the GRUNDIG DVD-P 7644 Portable DVD Player! The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home.
  • Page 5 operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equiva- lent type, in order to protect the environment, please dispose the battery properly.
  • Page 6 7. Water Resistance The unit is designed to perform in wet environments. Water resistan does not mean water proof. Complete submersion in water will damage the unit. In order to function correctly in wet environments, these guidlines MUST be followed: a.

  • Page 7: Contents

    C. Packaging Contents 1. DVD-P7644 7" Water Resistant DVD Portable Player 2. Remote Control 3. 1 Lithium battery 3V CR2025 for remote control 4. DC Jack Connector - 4 -...
  • Page 8 5. Rechargeable battery 6. Car adapter for power supply in the vehicle 7. Audio-Video cable 8. Mains adapter 9. Operating manual - 5 -...

  • Page 9: Powering And Installation

    D: Powering and installation (Refer to figure 1) 1. Powering the system indoors You can operate the DVD player using the main adapter sup- plied or with the rechargeable battery supplied.If the DVD player is supplied with a voltage from the mains adapter and the player turns to power on,the battery charge function will automatically switch off.

  • Page 10: Controls, Indicators, And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) Figure 2 11) Remote Control Sensor 1) Charge Indicator LED 12) Picture mode Button 2) Power LED (4:3 or 16:9) 3) Power On/Off Botton 13) Slide Handle 4) Volume Up/Down Control 14) DC Input contacts 5) Brightness Up/Down Control 15) Backcover clasp...

  • Page 11: Loading And Playing A Disc

    2. Remote Control View (Refer to Figure 3) 1) Display Button 2) Angle Button 3) Subtitle Button 4) Audio Button 5) Zoom Button 6) UP/DOWN/LEFT/RIGHT/ ENTER Buttons 7) Return Button 8) A-B Button 9) Forward Button 10) Reverse Button 11) Slow Button 12) Stop Button 13) Numeric Keypad 14) Setup Button...

  • Page 12: Setup

    G. Setup 1. General Setup Page 1)With no disc inside the player, press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ ” is highlighted. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode.
  • Page 13 a) TV Display * Normal/PS: When the player outputs signal to a normal TV, a normal picture is shown on the full screen. * Normal/LB: When the player outputs signal to a normal TV, a normal picture is shown on the screen with a black strip at both the top and bottom of the screen.
  • Page 14 2.Video Quality Setup 1)In Setup menu, Press the button to select “Video Quality Setup” and is highlighted. Press ENTER to enter the video quality setup page. 2)Press the ENTER button, “Brightness” is highlighted. 3)Press the button to select the other menus in video quality setup page.
  • Page 15 3. Password In Setup menu, Press the button to select “Password Setup Page” and is highlighted. Press ENTER to enter the password page. Password Setup Page Screen Display Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Confirmed New Password.
  • Page 16 3)Press the button to select the other menus in preference page. 4) Press to enter the sub menu. Preference Audio Language 5) Press the button to select the sub menu and press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return the previous menu.
  • Page 17 d) Select ‘Parental’ using the UP/DOWN button, then press RIGHT to enter the submenu. Parental Preference Screen Display Select the parental level you desire using the UP/DOWN button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult). Press ENTER and input 4 digit password, then press ENTER again to confirm the parental level setting.

  • Page 18: Basic Operation

    H. Basic Operation POWER Turn the unit on/off Remove/load the disc OPEN PLAY Start Play/Execute item or setting SLOW Play at 1/2, 1/4, 1/8 or 1/16 times speed Still Picture PAUSE (1 time) Stop at the present playing point / STOP (2 times) Stop playing NEXT...

  • Page 19: Menu

    I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc.
  • Page 20 2. ANGLE During playback of a disc, press ‘ANGLE’ to display the available angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press ‘ANGLE’ to select another angle, then press again to exit and re- turn to the normal viewing angle.
  • Page 21 4. AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘AUDIO’...
  • Page 22 6. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point A-B Repeat Ending Point Screen Display c.

  • Page 23: Playing Audio Cds

    7. REPEAT During playback press ‘REPEAT’ constantly to see the repeat mode as right. Chapter Title Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Off: Resume normal playback DVD Repeat Mode DVD Repeat Mode The ‘Chapter’...
  • Page 24 Total Elapsed: The current track playing and the total time that the CD has been playing. Total Remain: The current track playing and the amount of time remaining on the CD. Display Off: The CD time Information will not be displayed. Take ‘Single Elapsed’...

  • Page 25: Playing Mp3 Discs

    L. Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system.
  • Page 26 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. 5. Press[-]of volume and brightness button at the same time will turn off the display while playing MP3. This will increase battery life during playback.

  • Page 27: Playing Jpg File

    M. Playing JPG file 1) Load the JPG Disc into tray. 2) Select JPG file by pressing “UP/DOWN” or ENTER button through menus or submenus. To go back previous menu page, use LEFT button. 3) You can preview the JPG file which you selected by pressing “PLAY”...

  • Page 28: Connecting To A Tv Or Another Monitor

    N. Connecting to a TV or another monitor ( Refer to Figure 4) 1. You can also connect the DVD player to a TV to enjoy high quality stereo sound and picture on another monitor. a. Position the AV In/Out Switch to “Out” Position. b.

  • Page 29: O.technical Data / Specifications

    O. Technical Data / Specifications This device is noise-suppressed according to the application EU directives. This product fulfills the European directives 89/336/EEC, 92/31/EEC and 73/23/EEC ( or 93/68/EEC ) This device conforms to the safety regulation DIN EN60065 (VDE 0860) and therefore the international safety regulation IEC60065. Never open up the DVD player.
  • Page 30 you may remove the Main adapter from Wall socket and stop harging. 4. Please make sure you always use ONLY the main adapter provided to recharge your battery, while the Cigarette Adapter can’t be use to recharge the battery. Note:Ensure the Recharging Battery fully charging for at least 8 hours prior to connection it to DVD player.Each full recharge takes approximately 5 hours and one full charge can provide power to the player for at least 2 hours.For Longer periods of...
  • Page 31 Installing the Battery Pack: 1. First, open the CD cover. 2. Push the battery towards the flank of the player and revolve it until it locks into position. The unit will fit snugly to the player. Figure 5. Installing the DVD Player Battery Removing the Battery Pack: 1.

  • Page 32: Troubleshooting

    Q. Troubleshooting SOLUTION PROBLEM • Make sure your DVD is connected properly. No sound or distorted sound Make sure all cables are securely inserted into the appropriate jacks. • You can’t advance through the opening credits Can’t advance and warning information that appears at the through a movie beginning of movies because the disc is pro- grammed to prohibit that action.
  • Page 33 Troubleshooting (Cont) PROBLEM SOLUTION IR sensor • Verify that the batteries in the remote are fresh. inoperative • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is pointed directly at the IR sensor, and is within 10 feet of the sensor.
  • Page 34 Grundig Multimedia B.V. Atrium, Strawinskylaan 3105 . NL-1077 ZX Amsterdam . http://www.grundig.com 72011 606 1500...
