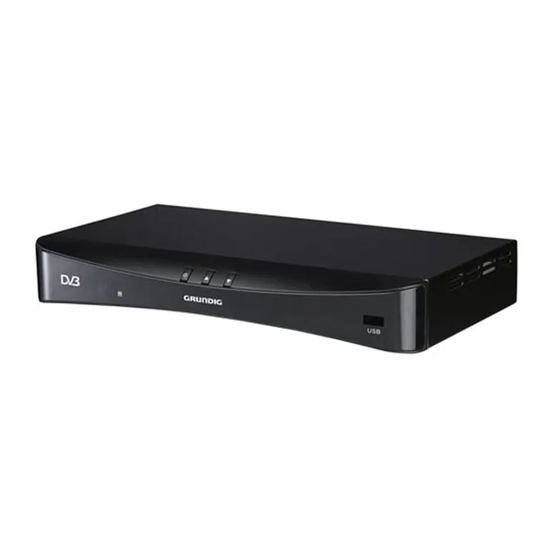

- Page 1 DIGITAL TERRESTRIAL RECEIVER GSTB1701USB Th e Gold Technical Support Line:1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarize you with the unit's many features and to ensure you get the very best from your purchase. -
Page 3: Safety Instruction
SAFETY INSTRUCTIONS · Always read the safety instructions carefully · Keep this User's Manual for future reference · Keep this equipment away from humidity · Lay this equipment on a reliable flat surface before setting it up. · Do not stand it on soft furnishings. ·... -
Page 4: Table Of Contents
CONTENTS 1. INTRODUCTION................1 2. SAFETY INSTRUCTION.............2 3. ABOUT THE SET TOP BOX............4 4. FRONT & REAR PANEL ILLUSTRATION........5 5. REMOTE CONTROL..............6 6. SYSTEM CONNECTION.............8 7. GETTING STARTED..............9 8. OPERATION................10 9. CHANNEL LIST.................12 10. SYSTEM SET-UP..............13 11. FAVOURITE LIST..............15 12. TROUBLE SHOOTING..............16 13. -
Page 5: About The Set Top Box
ABOUT THE SET TOP BOX This DVB-T TV Receiver is a Free-To-Air digital terrestrial receiver, allowing you to access free-to-air digital terrestrial TV channels and radio broadcasts on your TV set. Its digital reception covers VHF & UHF band. Compared with the analog TV programs, digital TV programs eliminate the noise and interference but offer high quality video and audio. -
Page 6: Front & Rear Panel Illustration
FRONT & REAR PANEL ILLUSTRATION Front panel Channel up Standby button Channel down Remote sensor USB slot Power indicator (For update the software playback of MP3 and JPG files) Rear panel R F in Component Video AC Mains for an external TV aerial (Y Cb Cr) Coaxial Digital Audio AC 220-240V... -
Page 7: Remote Control
REMOTE CONTROL Power On/Standby (Switch the STB ON/STANDBY mode) Numeric entry (Enter numeric values and to select the channel directly by entering it's number) Menu (Open up menu) DTV/ VCR Red Button (To assist the operation of teletext function) Cursor/ Enter to select sub-menu from the main menu and channel +/-, to select menu and sub-menu... - Page 8 REMOTE CONTROL Installing the batteries Remove the battery cover from the remote control and put two AAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. Caution: 1. Keep batteries out of children's reach. 2.
-
Page 9: System Connection
SYSTEM CONNECTION General There are many different types of TV/VCR and other equipment that you can connect to the STB.In this common manual you will see some of the most ways to connect your equipment. Connecting to the TV with AV/Y Cb Cr / S-Video cable Green Antenna... -
Page 10: Getting Started
GETTING STARTED Switching on Turn on your TV set and select the corresponding AV input,then set the video system of your TV to PAL. Connect the Set Top Box to mains power supply AC 220-240V 50/60Hz, the power indicator on the front of the unit will turn red(Standby mode).Press the POWER button on unit or remote control to turn on the unit,then the indicator will turn to green. -
Page 11: Operation
OPERATION Changing Channels There are four ways of channel selection - stepping through the channel list, selection by number, from the on-screen channel list, and using the electronic programme guide(EPG). Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. - Page 12 OPERATION Select the USB mode Insert a USB stick into the USB slot, the TV screen will display a file manager . Select the icon , then press the "OK" button to enter the USB menu as follows:. USB flash disk information \USB Total 61MB...
-
Page 13: Channel List
CHANNELS LIST Channels List Some channels broadcast material which you do not want younger members of the family to watch. Any channel can be locked so that it cannot be selected for viewing without entering a PIN code. Locking/Unlocking a channel: Press the "MENU"... -
Page 14: System Set-Up
SYSTEM SET-UP System setup Many aspects of your STB can be set to reflect your circumstances and preference. Press the "MENU" button to enter the settigs menu of the STB. Channels Favorites Settings Press the "LEFT" or" RIGHT" cursor button to highlight and then Scan Settings... -
Page 15: Sort Channel
SYSTEM SET-UP Sort Channel You can sort the TV channels in Name Up,Name Down, Channel No or Encrypted order. In the Settings menu, select "Sort Channel" and then press the "OK" button to enter its setting menu. Channels Favorites Settings Scan Select the desired item and press the "OK"... -
Page 16: Favourite List
FAVOURITE LIST Favourite list There are some channels that you tend to watch more often and some only occasionally. Although some duplicate channels you may want to delete from channel list, others although not watched frequently, you will not want to do away with altogether. The favourite mode allows the most-watched channels to accessed more easily, leaving the less-watched channels accessible but out of the way. -
Page 17: Trouble Shooting
Replace handset batteries Re-install channels to cancel Forgotten channel lock code channel lock Forgotten menu lock Contact Grundig warranty line code (1) The batteries in your remote The remote control will (1) Replace the batteries control need replacing not operate your STB... -
Page 18: Specifications
SPECIFICATIONS TUNER & CHANNEL RF INPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, FEMALE) RF OUTPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH)) FREQUENCY RANGE: 174MHz ~230MHz (VHF) & 470MHz ~862MHz (UHF) SIGNAL LEVEL: -15 ~ -70 dbm DECODER MPEG-2 ISO/IEC 13818 TRANSPORT STREAM MPEG-2 MAIN PROFILE @MAIN LEVEL PROFILE LEVEL MAX. -
Page 19: Warranty
In the unlikely event that your product fails to work normally, please contact Grundig Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. This warranty is subject to the following provisions: It is only valid within boundaries of the country of purchase;... - Page 20 PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au ver.2 27-Nov-2007...
