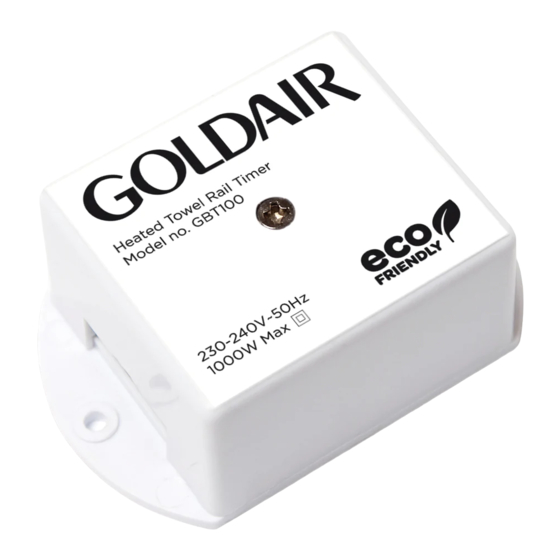

GBT100 – Heated Towel Rail Timer
Warnings & Safeguards
1. Children should be supervised to ensure they do not play with the timer.
2. This timer is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.

Operation (Pre-set function)

When you first turn the heated towel rail on, this will automatically use the timer's pre-set
function.
Pre-set function - The heated towel rail will turn on and remain on for a period of 4 hours, fol-
lowed by 8 hours off.

Programming:

You can increase the ON period in increments of 1 hour by turning the heated towel rail off at
your switch then on again within 10 seconds of first turning the rail on. Each repetition of this
on/off sequence will increase the ON period by 1 hour (maximum of up to 11 hours).
If you would like to restore the pre-set 4 hour setting, discharge all of the electricity and pow-
er in the timer by turning the heated towel rail off for 60 seconds (this will clear the memory).
To reset the timer, turn the heated towel rail on again.

Important Notes:

• This timer must be installed by a licensed electrician – Warranty will otherwise be voided
• Do not megger test as this can damage the timer
• The GBT100 timer is designed only to be used as a heated towel rail timer and should not
be used for any other purpose
• The maximum load is 1000 Watts at 230-240V AC ~ 50Hz
• The timer is designed and should be installed and concealed behind the heated towel rail's
switch in a typical wall cavity flush box
• There are no user serviceable internal parts in this product, and should damage or malfunc-
tion occur, please return to the manufacturer for repair or replacement
• Wiring size: 1.0mm²
• All pole disconnection must be required in fixed wiring
• Earth loop should be continued on all class 1 appliances
OPERATING INSTRUCTIONS
