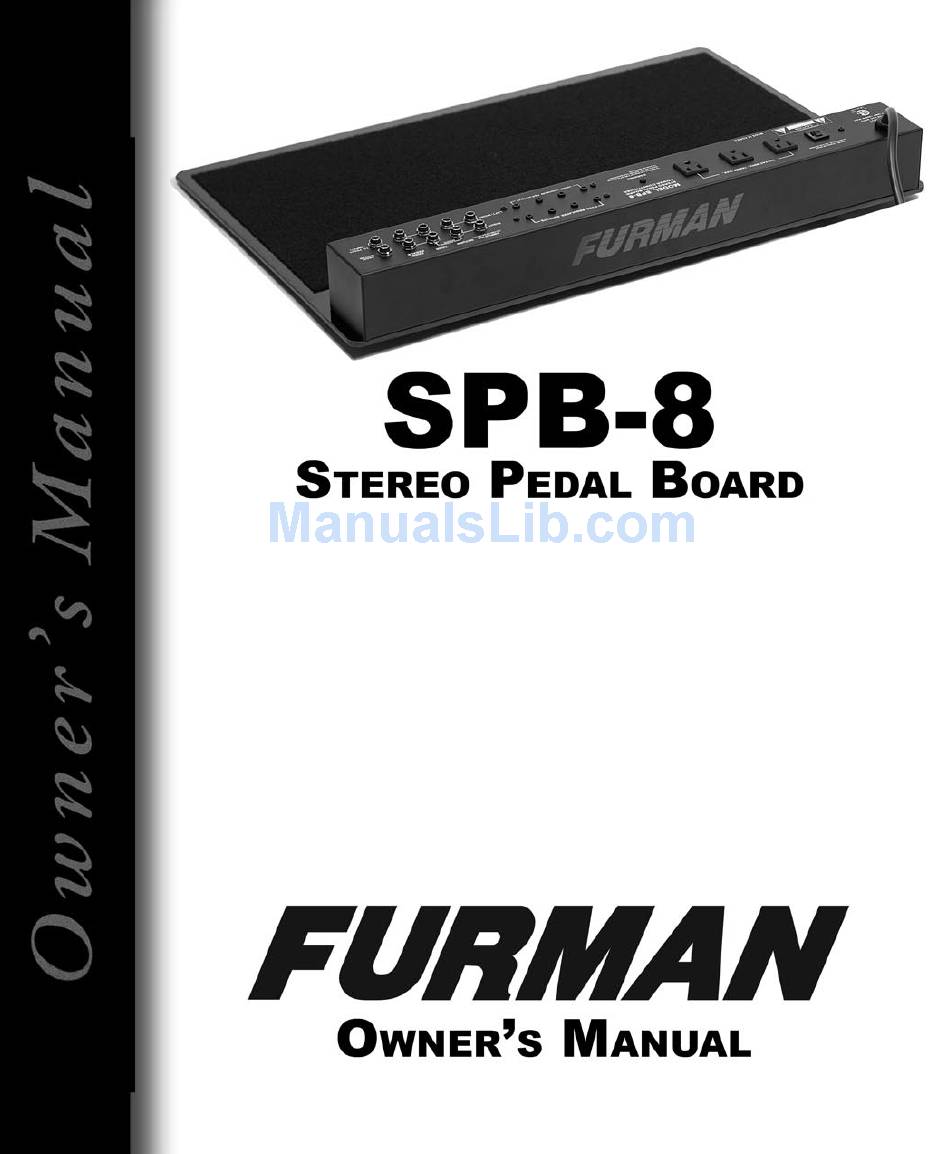

Furman SPB-8 Owner's Manual

Furman SPB-8 Owner's Manual

Stereo pedal board
Hide thumbs Also See for SPB-8:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPB-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furman SPB-8

Summary of Contents for Furman SPB-8

  • Page 2 10A outlets) pedals in place. A sturdy, padded case is included • Furman's quality spike and surge suppression and and comes with a handle, a detachable shoulder EMI/RFI filtering assures clean power strap, and two zippered pouches for storing cables, •...

  • Page 3: Sample Hookups

    Because the SPB-8/E is protected are used, and whether one or two amps are used. by Furman’s famous power conditioning capability, your valuable pedals will be protected from damage from spikes and surges.
  • Page 4 Example 1: Mono Pedals, Single Amp In this example, two pedals are linked together with a short cable going from the output of the first to the input of the second. Since there is only one amp, only the Left/Mono channel is used. Example 2: Mono Pedals, Two Amps This example is similar to the first except there are two amps.
  • Page 5 Example 3: Mono Pedals, Stereo Rack Effects, Two Amps This example is similar to the previous one except a rack effect is added which has one input and two (stereo) outputs. Again, both channels are used, but the left/right split is generated by the stereo rack effect. Example 4: Mono Pedals, Mono Rack Effects, Two Amps In this example, both the pedals and the rack effect are mono, so the left/right split to feed the two amps is accomplished similarly to Example 2, in which a Rack Effects Send jack was used to tap off a copy of...
  • Page 6 Example 5: Mono Pedals, Mono Rack Effects, One Amp In this example, you have both pedals connected to the input of your amplifier while using remote mono effects (which can be pedals or racked effects) connected to your amplifier's effects loop. You can only connect one amplifier to the patchbay with this configuration.

  • Page 7: Three Year Limited Warranty

    Furman website. If the Product does not conform to this Limited Warranty during the warranty period (as herein above specified), Purchaser shall notify Manufacturer in writing of the claimed defects. If the defects are of such type and nature as to be covered by this warranty, Manufacturer shall authorize Purchaser to return the Product to the Furman factory or to an authorized Furman repair location.
  • Page 8 Furman Sound, LLC. 1690 Corporate Circle. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 www.FurmanSound.com 070730-C...
