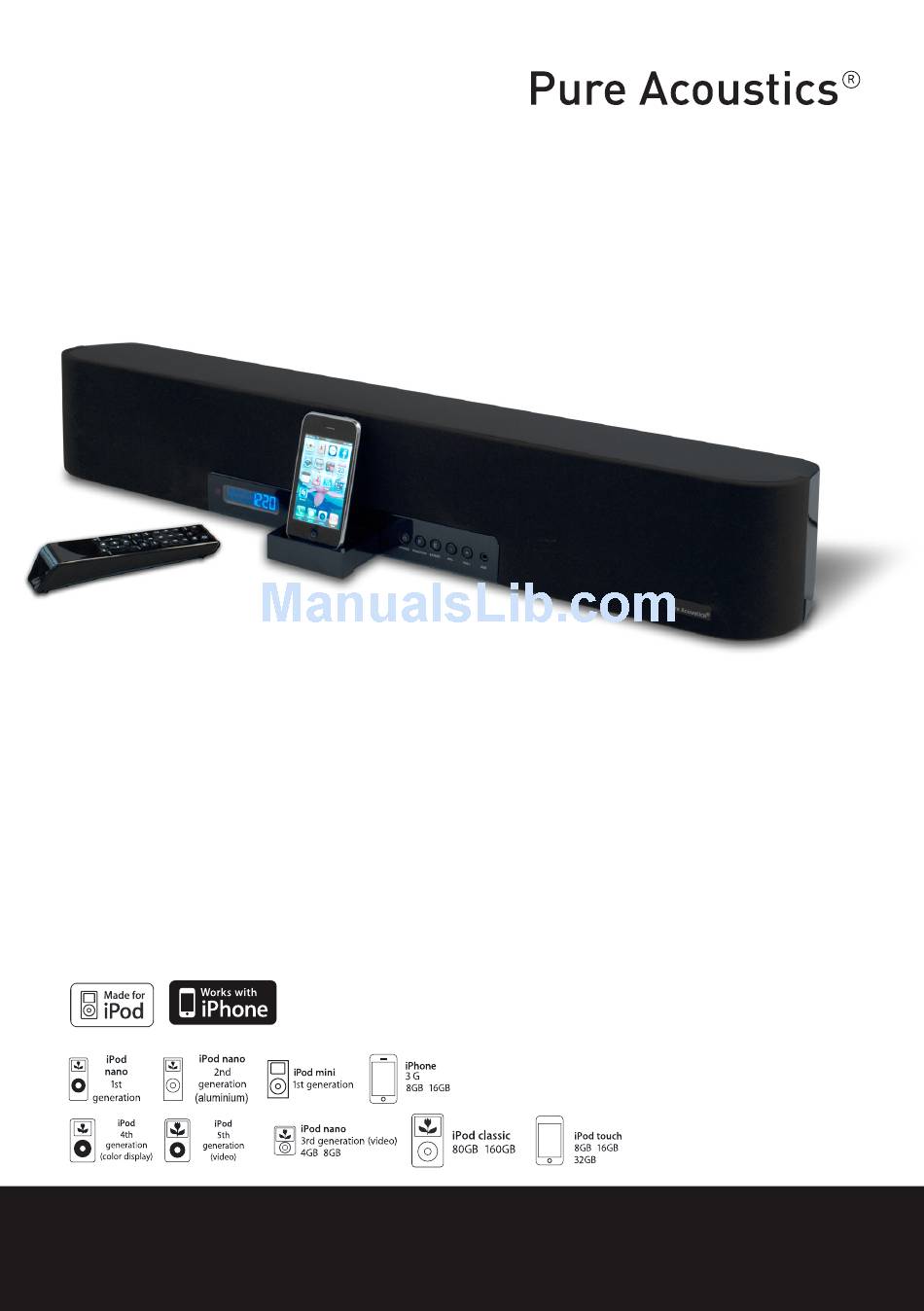

- Page 1 User`s Guide SBAR-51 Sound Bar and Docking Station Please read the following instructions carefully before connecting, operating or adjusting this product. Please keep this manual in a convenient place for future reference.
-
Page 2: Table Of Contents
Contents Re Important Safety Instructions .....................3 Ke Warnings and Precautions ....................3 He Overview ..........................4 Features ..........................4 Fol Package Contents ......................4 Do Front View ........................5 Cle Back View ........................6 Do Remote Control ......................7 Setup .............................8 Do Connect the FM Antenna ....................8 Connect External Devices ....................8 Do Connect Power .......................9... -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions..3 2. Keep these instructions..3 3. Heed all warnings..4 ..4 4. Follow all instructions..4 5. Do not use this apparatus near water..5 6. Clean only with dry cloth..6 7. Do not block any ventilation openings.Install in accordance with the manufacturer’s ..7 instructions..8 8. Do not install near any heat sources such as radiators,heat registers,stoves,or other apparatus (including amplifiers) that produce heat..8 ..8 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two ..9 blades and a third grounding prong. The wide blade or the third prong are provided for ..10 your safety. If the provided plug does not fit into your outlet, consult an electrician for ..10 replacement of the obsolete outlet. -
Page 4: Overview
Overview Features Powerful 50W RMS system enhances your music listening experience iPod Drawer conveniently opens when needed and hidden when not in use Plays and charges most dockable iPods Package Contents Soundbar Remote Control AC Adapter FM Antenna 3.5mm Cable RCA Cable CAUTION WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture. Video Cable iPod™... -
Page 5: Front View
Front View POWER FUNCTION EFFECT VOL– / VOL+ Turn your soundbar Select FM radio, Turn 3D virtural sound Decrease and 3.5 mm line input on and off iPod, IN1, IN 2, or effect on and off, increase volume jack to connect AUX mode press and hold for addtional sound... -
Page 6: Back View
Back View FM ANT SUB OUT STEREO RCA VIDEO OUT DC IN 15V INPUT Connect FM Connect an external Connect to the Connect supplied antenna subwoofer Connect to the audio video output jacks DC15V power cord output jacks on your on your external external device (TV, DVD, device... -
Page 7: Remote Control
Remote Control MUTE – Turn sound on or off EFFECT Turn 3D virtual surround pplied effect on or off wer cord POWER – Turn the soundbar on or off. DISPLAY / TIME FUNCTION – Select Enter time setting mode, desired input mode view current mode. -
Page 8: Setup
Setup Connect the FM Antenna Plug the supplied FM antenna into the FM ANT jack. Connect External Devices (Optional) Subwoofer Connect an external subwoofer Audio Inputs Video Outputs Use an audio cable to connect Use the video cable to connect each device’s audio output each device’s video input jack jacks to the soundbar’s audio to the soundbar’s VIDEO jacks, IN 1 or IN 2. -
Page 9: Connect Power
Connect an audio device using the 3.5mm mini-phono cable, or a 3.5 mm mini phono to RCA cable (not included) into the AUX jack. Connect the other end into the audio output/headphone output on your audio device. Connect Power connect ut jack... -
Page 10: Install Remote Control Batteries
Install Remote Control Batteries 1. Press the tab to remove the battery cover. . Insert two AAA batteries (not supplied) as indicated by the polarity symbols (+ and –) Pre marked on the remote control. . Pre . Replace the battery cover. . Pre . Pre . Pre Tun . Pre . Pre . Pre To Battery Notes: Dispose of batteries promptly and properly. Do not burn or bury them. ... -
Page 11: Basic Operation
Basic Operation FM Radio d –) 1. Press POWER to turn on the unit. 107.3 . Press FUNCTION to select FM mode. FM displays. . Press to tune down or up to find a station. Press and hold to auto search stations. . Press VOL + or VOL – to adjust the volume. . Press REPEAT/ST on the remote control to select stereo or mono mode. Storing Stations 1. Tune to the desired station. 107.3 . Press ENTER. The program location flashes. . Press 0 through 9 on the remote control to select a memory location (total of 10 preset stations are available). . Press ENTER to store the station. Recalling Station 1. To recall stored stations, press number 0 through 9 to access the desired memory location. -
Page 12: Audio Settings
. Snap the adapter into the docking station. . Plug your iPod / iPhone into the adapter. play Playing Tracks Pre 1. Dock your iPod / iPhone. IPOD . Press POWER to turn on the soundbar. . Press FUNCTION to select iPod mode. IPOD displays. . Press to start and pause iPod / iPhone playback. Press to skip to the previous track or to the next track. Press and hold to search backwards or forwards in the current track. Press REPEAT/ST to select repeat the current track, repeat album or playlist or repeat off. Press SHUFFLE to play tracks in an album randomly in your iPod/iPhone. Press MENU to access the docked iPod menu. Press or to navigate iPod / iPhone menus. Note: Your iPod / iPhone must be updated with the latest firmware from Apple in order for it to work properly with your sound bar.
