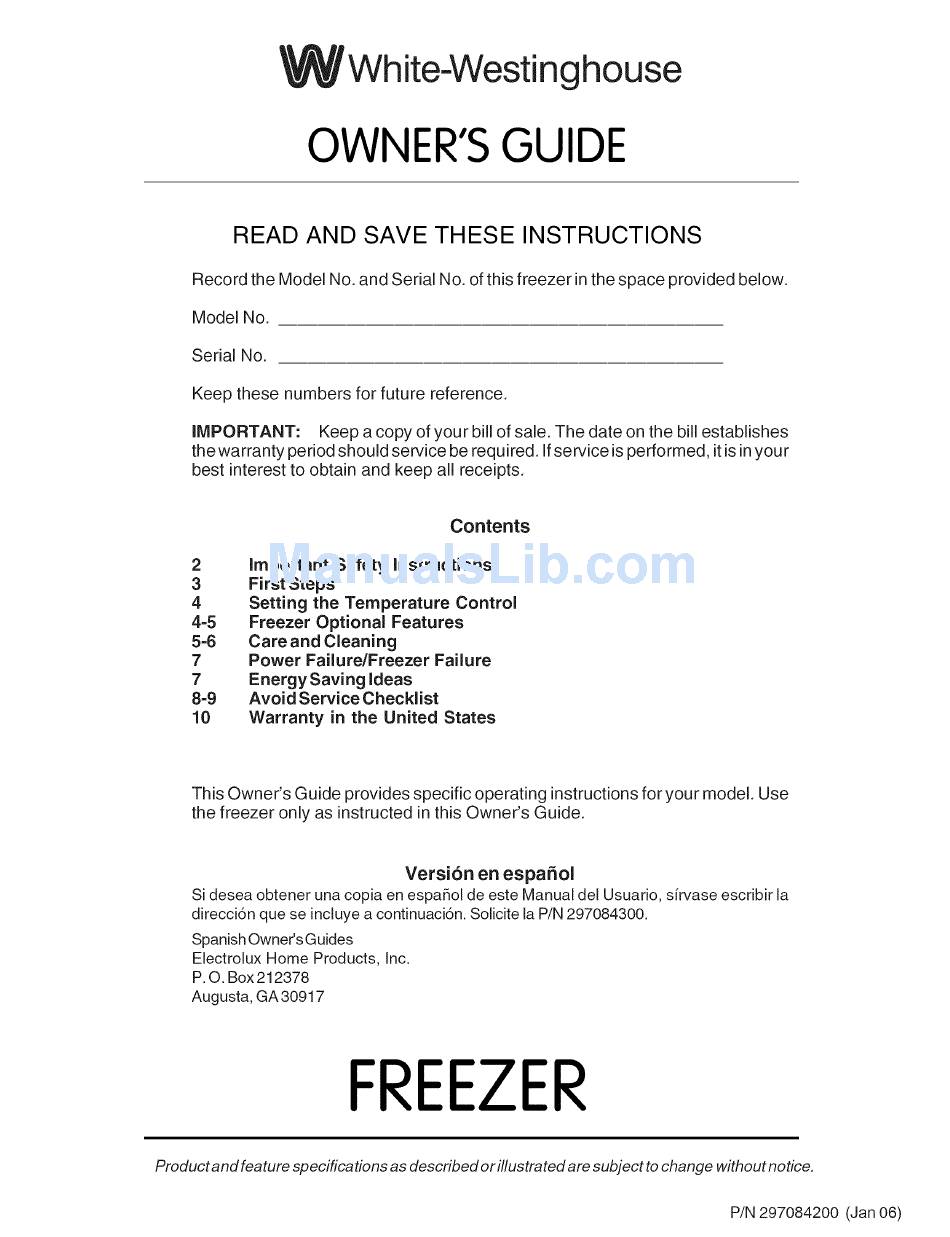

White-Westinghouse
OWNER'SGUIDE
READ AND SAVE THESE INSTRUCTIONS
Record the Model No. and Serial No. of this freezer in the space provided
below.
Model No.
Serial No.
Keep these numbers
for future reference.
iMPORTANT:
Keep a copy of you r bill of sale. The date on the bill establishes
the warranty
period should service be required.
If service is performed,
it is in your
best interest to obtain and keep all receipts.
2
3
4
4=5
5=6
7
7
8=9
10
Contents
important
Safety
instructions
First Steps
Setting
the Temperature
Control
Freezer
Optional
Features
Care and Cleaning
Power Failure/Freezer
Failure
Energy
Savi ng ideas
Avoid Service Checklist
Warranty
in the United
States
This Owner's Guide provides specific operating
instructions for your model. Use
the freezer
only as instructed in this Owner's
Guide.
Versi6n en espaSol
Si desea obtener una copia en espa5ol de este Manual del Usuario, s[rvase escribir la
direcci6n que se incluye a continuaci6n. Solicite la P/N 297084300.
Spanish Owner's G uides
Electrolux Home Products, Inc.
P. O. Box 212378
Augusta, GA 30917
FREEZER
Product and feature specifications as described or illustrated are subject to change without notice.
P/N 297084200 (Jan 06)

Advertisement

loading
Need help?

Need help?

Do you have a question about the WFC15M4BW4 and is the answer not in the manual?

Questions and answers

Related Manuals for White-Westinghouse WFC15M4BW4

Summary of Contents for White-Westinghouse WFC15M4BW4

  • Page 1: Table Of Contents

    White-Westinghouse OWNER'SGUIDE READ AND SAVE THESE INSTRUCTIONS Record the Model No. and Serial No. of this freezer in the space provided below. Model No. Serial No. Keep these numbers for future reference. iMPORTANT: Keep a copy of you r bill of sale. The date on the bill establishes the warranty period should service be required.

  • Page 2: Important Safety Instructions

    Read all instructions before using this freezer. important Safety pr!_€ For Your Safety instructions Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this orany other appliance. Read product labels forflammability and other warnings. Proper Disposal of Your RefrigeratodFreezer...

  • Page 3: Firststeps

    FirstSteps Before starting the freezer, follow these important first steps: Installation Choose a place that is near a grounded electrical outlet. For the most efficient operation, the freezer should be located where surround- ing temperatures will not exceed 110 ° F (43°C). Temperatures of 32°F (0°C) and below will NOT affect freezer operation.

  • Page 4: Setting The Temperature Control

    Cool Down Period Setting the For safe food storage, allow 4 hours for the freezer to cool down completely. The Temperature Control freezer will run continuously for the first several hours. Foods that are already frozen may be placed in the freezer after the first few hours of operation. Unfrozen foods should NOT be loaded into the freezer until the freezer has operated for 4 hours.

  • Page 5: 5=6 Care And Cleaning

    Freezer Optional Slide-Aside Basket (chest models) This basket helps organize odd-shaped items. To reach other packages in the freezer, Featu res (continued) slide the basket aside or lift out. Fast Freezing Shelves (upright models) These shelves contain cooling coils to freeze foods quickly and allow cold air to constantly circulate throughoutthe freezer.
  • Page 6 Care and Cleaning On models without a defrost drain, place towels or newspapers on the freezer bottom to catch the frost. The frost will loosen and fall. Remove towels and/or (continued) newspapers. If the frost is soft, remove by using a plastic scraper. If frost is glazed and hard, fill deep pans with hot water and placethem on the freezer bottom.

  • Page 7: Power Failure/Freezer Failure

    Power Failure/ if a power failure occurs, frozen foods will stay frozen for at least 24 hours if the freezer is kept closed. If the power failure continues, pack seven or eight pounds Freezer Failure of dry ice into the freezer every 24 hours. Look in the Yellow Pages under"Dry Ice," "Dairies,"...

  • Page 8: 8=9 Avoid Service Checklist

    Avoid Service Checklist Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE SOLUTION FREEZER DOES NOT RUN Check to be sure freezer is not plugged into a circuit that has ground fault interrupt.
  • Page 9 OCCURRENCE SOLUTION SOUND AND NOISE (cont'd) Bubbling or gurgling sound, like water Refrigerant (used to cool freezer) iscirculatingthroughoutthesystem. This is normal. boiling. Vibrating or rattling noise. Freezer is not level. It rocks on the floor when it is moved slightly. Level the unit. Refer to "Leveling"...
  • Page 10 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,...
  • Page 11 3 Ways To Contact Us! i3 formas de contactar nos! 3 fagons de nous contacted USA, EE.UU., E.-U., 1-800-944-9044 CANADA, CANADA 1-800-265-8352 Or, O, Ou CANADA, CANADA USA, EE.UU., E_.-U. Electrolux Major Appfiances North America, Electrolux Major Appliances North America, a division of Electrolux Home Products,...
