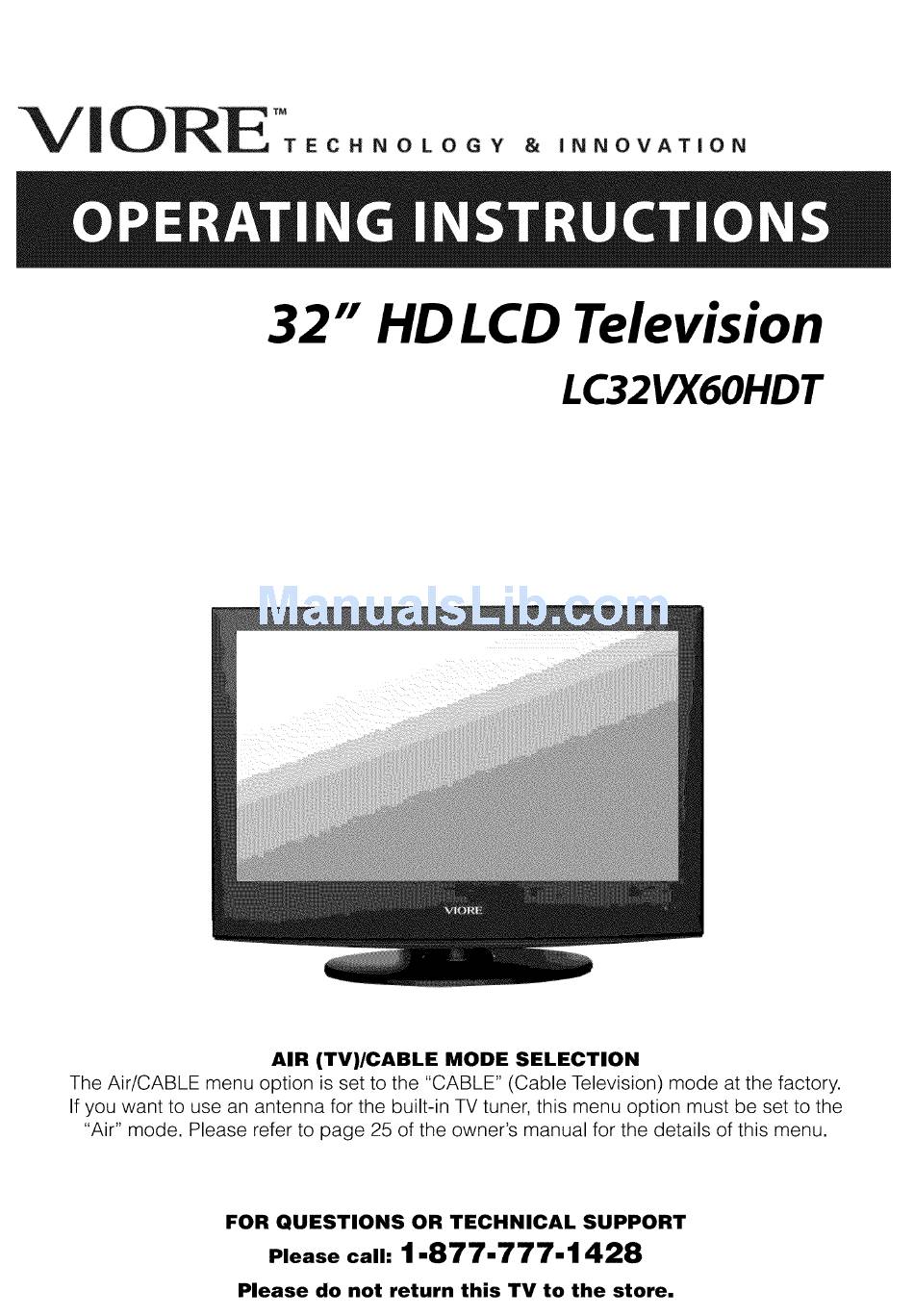

32" HD LCD Television
LC32VX60HDT
AIR (TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE"
(Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode, Please refer to page 25 of the owner's manual for the details of this menu.
FOR QUESTIONS
OR TECHNICAL
SUPPORT
Please
call:
1-877-777-1428
Please
do not return
this TV to the store.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC32VX60HDT and is the answer not in the manual?

Questions and answers

Related Manuals for VIORE LC32VX60HDT

Summary of Contents for VIORE LC32VX60HDT

  • Page 1 32" HD LCD Television LC32VX60HDT AIR (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
  • Page 2 • Caution ..................• Safety Information ................• Names of each part(Front View) / Accessories ............• Names of each part(Back View) ..............• Mounting on a Desktop / Installation Precautions............. • Installing an Antenna ................• Remote control ................•...
  • Page 3 The lightening flash with arrowhead symbol, within an equilateral triangle intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute risk of electric shock to the persons. The exclamation point within an equilateral triangle...
  • Page 4 To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label.
  • Page 5 TVIAV button- lnpat Source Select Button POWER button MENU button - OSD Menu Display Button _ED Indicator CH+/- button- Channel/Program +,- Button Remote Control Window VOL+/- button - Volume + - Button ® The configuration of the components may look different from the folJowJng illustration. User's Manual User's Guide...
  • Page 6 HDMI2 HDMII A_dJo ACinputjack AV2 iN VIDEO and AUDIO(PJL) S-VIDEO O SWICH Y,Pb,Pr jack(component) COAXIAL (Digital Audio out) HDMI2 jack AV OUT ViDEOand AUDIO(R/L) HDMI1 jack AV1 IN VIDEO and AUDIO(R/L) PC and AUDIO jack Power on • To turn on the LCD TV Press on the buttom of the LCD TV to...
  • Page 7 ÷ Your LCD TV can be mounted on a Desktop as shown in the figure above. ÷ This is not floor-standing unit. ÷ Please secure enough space for safe use. (Please refer to A and B.) ÷ Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature.
  • Page 8 @ For connecting to ATSC or NTSC broadcasts " " " " _ m " " = 7 " = T = m = = - .." ....o °_o!i_x Wall Jack with F-Connector Coaxial (Round) Antenna Cable Analog+Digital 75 £_ external Antenna Press TV/AV button on the remote control to select TV, then press OK button to confirm.
  • Page 9 ÷ Functions of remote control buttons The remote control is using Infra-Red (In). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. TV/AV POWER Press to display the input source...
  • Page 10 THUMBSTICK (_J T/_1/ I_/OK) Allows you to navigate the on-screen menus and adjust the system settings to your preference. MENU Press to exit form the OSD menu. Press to display the OSD menu. TIMER RETURN Press to setup the sleep time Press to Return to the among: 5min, 10min, 15min, 30min, channel viewed.
  • Page 11 1. Check the polarity (+,-) of the batteries in the remote control. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. 4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV. 1.
  • Page 12 ÷ Connecting to the Composite terminal _._ Connection t erminals of otherequipments differby manufacturer andmodel. < VIDEO > Composite Cable • Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable. (Makesure the color of the terminals and the color of the cable are the same) ÷...
  • Page 13 ÷ Connecting to the Composite terminal ÷ In order to watch Cable TV, Subscribeto your local Cable TV companyand installa separate receiver(Set-Top-Box) ÷ Connectionterminalsof otherequipmentsdiffer by manufacturerand model. < Cable broadcasting receiver > Composite Cable Connect the LCD TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the Composite cable.
  • Page 14 ÷ Connecting to the component terminal ÷ Connection terminals of other equipments differ by manufacturer and model. < DVD > 1. Connect LCD TV's Y, Pb, Pr terminal to DVD's Video Out terminal using the external cable. 2. Connect LCD TV's Audio terminals (left & right) inAV 1 to DVD's Audio Out terminal using the Audio cable. 3.
  • Page 15 ÷ Connection terminals of other equipments differ by manufacturer and model. <PC> PC Audio Cable • Connect LCD TV's PC Input terminal to PC's RGB terminal using the D-Sub cable. • Connect LCD TV's PC Audio terminal to PC's Audio terminal using the Audio cable. Only for PC's with Audio terminal) TV/AV 1.
  • Page 16 ÷ Connecting to the Audio Amplifier and Monitor ÷ Connection terminals of other equipments differ by manufacturer and model. <Monitor> Video Cable <Audio Amplifier> Connect LCD TV's AUDIO(L/R) output terminal to Audio Amplifier using an audio patch cable. Note: The speakers of LCD TV still have output audio signal at this time. You can use the Volume +/- buttons to adjust the output audio signal.

  • Page 17: Power On/Off

    ÷ Power on/off Press on the buttom of the LCD TV to _ first. • To turn the LCD TV on : Press "POWER" button on the LCD TV. • To turn the LCD TV off : Press "POWER" button on the LCD TV. •...
  • Page 18 1. After you turn on the TV and select the input source, you should setup the on-screen menu. 2. Press MENU button to display the on-screen menu. 3. Press 4/•button to select the main menu: PICTURE, AUDIO, TIMER, SETUP, LOCK, CHANNEL. 4.
  • Page 19 The PICTURE menu includes the following options ' Picture Mode Cycles among picture display modes: Standard, Dynamic, Mild, Sports, User. Contrast Controls the difference between the brightest and darkest regions of the picture. Brightness Controls the overall brightness of the picture Color Controls the color.
  • Page 20 The SOUND menu includes the following options : Sound Mode Allows you to select among: Flat, Music, Movie, Sports and User. Bass Controls the relative intensity of lower pitched sounds. Treble Controls the relative intensity of higher pitched sounds Balance To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track.
  • Page 21 The TIMER menu includes the following options : Sleep Timer Allows you to set up the sleep timer among: 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min and off. Time Zone Allows you to set up the sleep timer among: Pacific, Alaska, Hawaii, Eastern, Central and Mountain.
  • Page 22 The SETUP menu includes the following options: _iiiiiii iiiiiiiiiiiiiiiiiiiii_/ iiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiii iiii_ Menu Language Allows you to select menu language among: English, Frangais, Espa_ol and Deutsch. Transparency Allows you to turn on or off the transparency function_ Zoom Mode Allows you to select the zoom mode among: 16:9, 16:9 zoom, 4:3, 4:3 zoom_ Noise Reduction Allows you to select the noise reduction mode among: Strong, Off, Weak, Middle_ PC Setup...
  • Page 23 CC Mode Allows you to select the CC Mode among: On, Off and CC on Mute. Basic Selection Allows you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4_ Advanced Selection Allows you to select the advanced selection among: Service1, Service2, Service3, Service4, Service 5 and Service 6_ Option...
  • Page 24 You should enter the password to enter the Lock menu. NOTE: the factory password is 0000. input 4-digit password The LOCK menu includes the following options " Change Password Use • button to select the "Change Password" item, then press 1_ button to enter into the following menu.
  • Page 25 Use • button to highlight the "US" item, then press • button to enter into the following menu_ Use • button to highlight the "TV" item, then press • button to enter into the following menu. Use • and • buttons to select the desired rating and press •...
  • Page 26 Canada Use Down button to highlight the "Canada" item, then press RIGHT button to enter into the following menu. Canada English Use LEFT and RIGHT buttons to select among: E, C, C8+, G, PG, 14+ and 18+ Canada French Use LEFT and RIGHT buttons to select among: E, G, 8ans+, 13ans+, 16ans÷...
  • Page 27 The Channel menu could only be operated in TV source. COLOR TV BROADCASTING SYSTEM AZORES(PORTUGAL) BALKANS(KOSOVO, BOSNIA) BELGIUM/GERMANY/ITALY IRAQ SECAM AFGHANISTAN NETHERLANDS/NORWAY SECAM SAUDIARABIA KUWAIT/TURKEY/JORDAN UNITED KINGDOM CZECH/HUNGARY/POLAND RUSSIA SECAM U.S.A./JAPAN/KOREA/GUAM NTSC The CHANNEL menu includes the following options " Air/Cable Allows you to select antenna between Air and Cable.
  • Page 28 If you select "Cable" as input signal in Antenna item, allows you to select Cable System among: Auto, STD, IRC and HRC. Use • button to highlight the "Start to Scan", then press • button to search the channels automatically. The receivable channels will be stored automatically.
  • Page 29 RE_LUTtO. j_ ....... _80LUTION MODE 720X4_0 480_ 480Eo 720X480 57_ i 720X576 720X576 57_Ep 128{:}X72[ 720p 1080, 1920X10BO 1080 ° 920X 1080...
  • Page 30 HHHHHHHHHHHHHJ iiiiiiiiiiiiiiiiiiiiiiiiiii • Do not use other functions that are not mentioned in this user's manual. • In case a problem occurs with your LCD TV, please take the following steps first. • If you still have the problem, turn the power off and contact your dealer or an authorized service center. Problem ActiOn The screen does not appear.
  • Page 31 iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII 32" (measured diagonally) TFT LCD LCD Panel Panel Size 1000:1 Contrast Ratio SOUND OUTPUT 8W x2 Max. Resolution 1366 x 768 Input Connector VIDEO S-VIDEO YPbPr AUDIO (L/R) PC IN VIDEO Output Connector SPDIF Power Source AC 100-240V, 50/60HZ Power Consumption 180W o The cabinet design and electronics specifications...

  • Page 32: Limited Warranty

    PRODUCT SHALL BE BINDING ON VIORE. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VIORE SHALL NOT BE LIABLE FOR ANY INCIDENTAL, OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT; EXCEPT TO THE EXTTENT PROHIBITED...
