Viking VRBD Use & Installation Instructions Manual

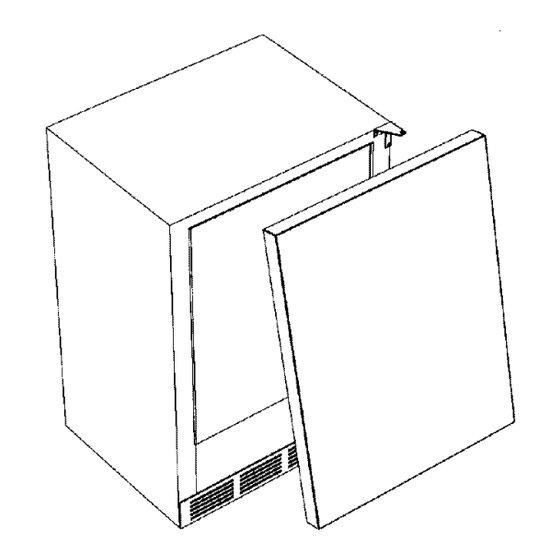

24" w. beverage dispenser
Hide thumbs Also See for VRBD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Notebook

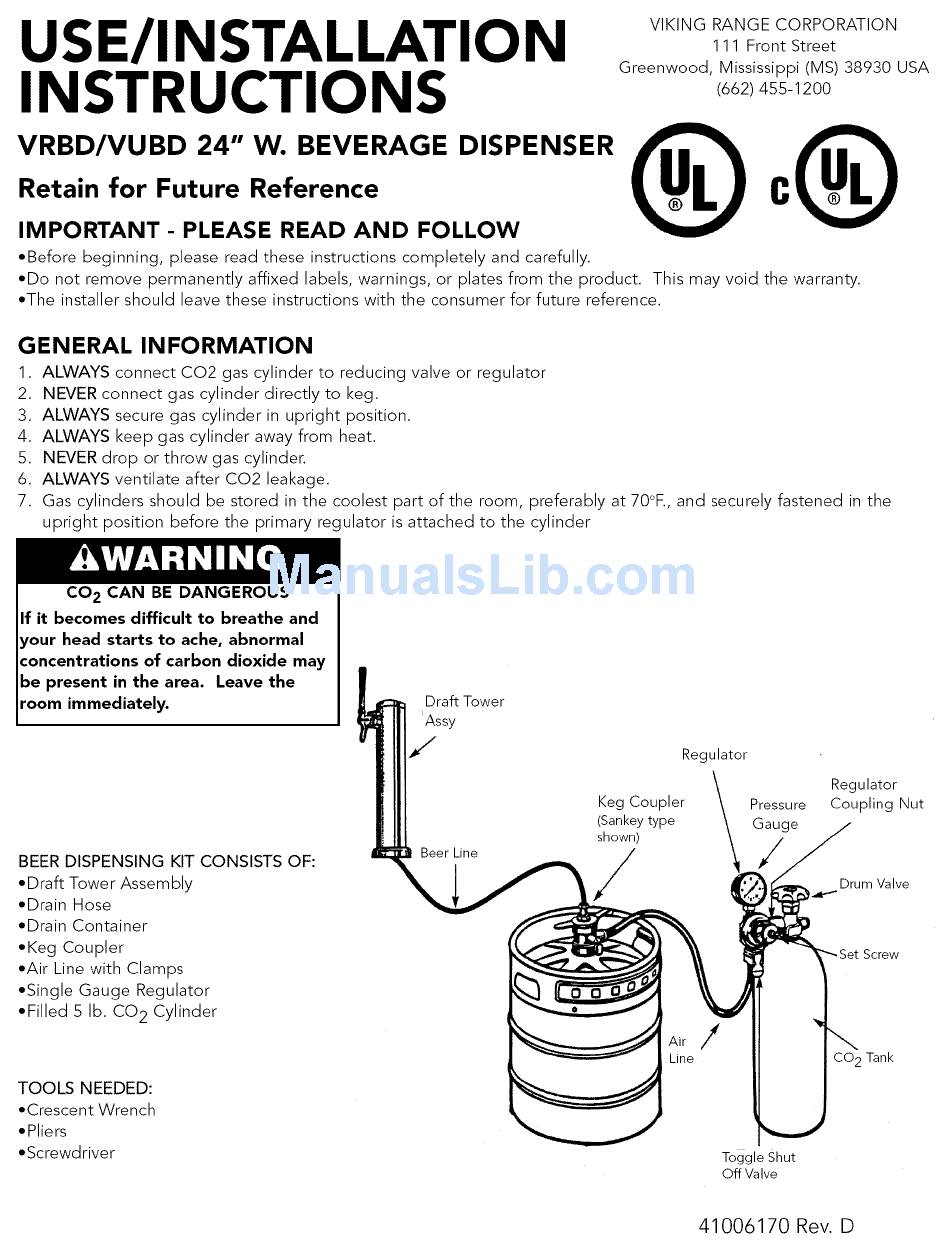

U SEll N STA LLATI O N
INSTRUCTIONS
VRBD/VUBD
24" W. BEVERAGE
DISPENSER
Retain for Future
Reference
VIKING RANGE CORPORATION
111 Front Street
Greenwood,
Mississippi (MS) 38930 USA
(662) 455-1200
IMPORTANT
- PLEASE
READ AND
FOLLOW
=Before beginning,
please read these instructions completely
and carefully.
=Do not remove permanently
affixed labels, warnings, or plates from the product.
This may void the warranty.
=The installer should leave these instructions with the consumer for future reference.
GENERAL
INFORMATION
1. ALWAYS connect CO2 gas cylinder to reducing valve or regulator
2. NEVER connect gas cylinder directly to keg.
3. ALWAYS secure gas cylinder in upright position.
4. ALWAYS keep gas cylinder away from heat.
5. NEVER drop or throw gas cylinder.
6. ALWAYS ventilate after CO2 leakage.
7. Gas cylinders should be stored in the coolest part of the room, preferably at 70°R, and securely fastened in the
upright position before the primary regulator is attached to the cylinder
CO 2 CAN BE DANGEROUS
If it becomes difficult
to breathe and
your head starts to ache, abnormal
concentrations
of carbon dioxide
may
be present
in the area.
Leave the
room immediately.
BEER DISPENSING KIT CONSISTS OF:
eDraft Tower Assembly
eDrain Hose
eDrain Container
*Keg Coupler
*Air Line with Clamps
°Single Gauge Regulator
°Filled 5 lb. CO 2 Cylinder
TOOLS NEEDED:
°Crescent Wrench
°Pliers
°Screwdriver
Draft Tower
Assy
Beer
Line
Regulator
Keg Coupler
(Sankey type
shown)
Pressure
Gauge
Air /
Line
Toggle Shut
Off VaIve
Regulator
Coupling
Nut
Drum
Valve
CO 2 Tank
41006170
Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRBD and is the answer not in the manual?

Questions and answers

Related Manuals for Viking VRBD

Summary of Contents for Viking VRBD

  • Page 1 VIKING RANGE CORPORATION U SEll N STA LLATI O N 111 Front Street Greenwood, Mississippi (MS) 38930 USA INSTRUCTIONS (662) 455-1200 VRBD/VUBD 24" W. BEVERAGE DISPENSER Retain for Future Reference IMPORTANT - PLEASE READ AND FOLLOW =Before beginning, please read these instructions completely and carefully.

  • Page 2: Built-In Installation

    Proper Disposal of Your Old Refrigeration Product Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in child entrapment, which can cause death or brain damage IMPORTANT: Child entrapment and suffocation are not problems of the past.

  • Page 3: Level Unit

    CASTERS Your beverage dispenser is equipped with four casters, the front two casters can be locked. For built-in applications, the four casters can be removed by removing the nut located inside the dispenser cabinet and then pulling the threaded caster spindle through the base of the unit.
  • Page 4 DIMENSIONS - FREESTANDING MODELS FRONT SIDE 24 5/8" "_'_ (62.5 cm) 2 1/16" 12 1/4" (5.2 cm) 1 1/4" (31.1 cm) 3/4" (1.9 cm) 24" m,l_ 41 25/32" (61.0 cm) 35 9/16" (106.2 cm) (95.4 cm) 22" m,,,ll_ (55.9 cm) 3/16"...
  • Page 5 CABINET CUTOUT UNDERCOUNTER MODELS 24" (61.0 cm)* Min. 34 1/8" (87.9 Max. 35 1/8" (89.2 cm) 24" (61.0 cm) "24" width for cabinet only. 24 1/4" (61.6 cm) needed for cabinet and door width clearance if door is recessed between cabinets.
  • Page 6 DIMENSIONS - UNDERCOUNTER MODELS SIDE FRONT 23 7/8" 47 1/4" (120.0 cm) _<'-- (60.7 cm) 30 3/4" Min 34" (78. I cm) (86.4 cm) Max 35" (88.9 cm) with leveling legs fully adjusted _22" (55.9 cm) -<--24 3/8" (61.6 cm)--_- .<---26 7/8"...
  • Page 7 ASSEMBLY Knob 2. Insert the clear 1. Screw the black beverage line faucet knob onto from the tower the faucet. through the hole Faucet in the top of the unit. Mount Draft draft tower onto Tower the refrigerator using the (4) furnished screws and (1) mounting...
  • Page 8 CO 2 REGULATOR 1. Low pressure gauge. (reads the amount of internal keg pressure) 2. Adjustment lock nut. 3. Regulator adjustment screw (after keg is tapped, screw clockwise until low pressure gauge indicates between 12 & 14 Ibs.) 4. Shut-off valve. 5.
  • Page 9 TAPPING PROCEDURES APPROXIMATE MEASUREMENTS REQUIRED TO TAP There are two keg sizes: MOST KEGS 1) the quarter barrel containing 7 3/4 gallons or Quarter Barrel Half Barrel approximately 3 1/2 cases of 12 ounce bottles or Height 17 - 21 inches 25 - 29 inches 2) the half barrel containing 15 1/2 gallons or Diameter...

  • Page 10: Final Preparation

    DRAIN HOSE CONTAINER Before using the beverage dispenser, make sure the drain hose and container are properly installed. 1. Attach the hose to the drain. 2. Attach the container to the hose. 3. Empty the container when it becomes full. 4.

  • Page 11: Setting The Control

    WIRING DIAGRAM 24" W. REFRIGERATED BEVERAGE DISPENSER BLACK BLACK CONDENSER WHITE WHITE BLACK OV'LD PT,C. RELAY COMPRESSOR WHITE WITH YELLOW STRIPE WHITE BLUE OPTIONAL F_, [U RE WARNING: ELECTRICAL GROUNDING INSTRUCTIONS This appliance is equipped with a three prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded three prong...
  • Page 12 TO DRAW THE PERFECT GLASS OF BEER 2. After the glass has reached half full, 1. Start with a clean beer glass that has been gradually bring the glass to an wetted in cold water. Place the glass at a upright position.
  • Page 13 COMMON DRAFT PROBLEMS DESCRIPTION CAUSES Wild Beer is all foam, or too much foam and Beer drawn improperly Beer, when drawn, not enough liquid beer. Creeping regulator Applied pressure is set too high Hot spots in line Use of non-insulated beer line Beer runs are too long for proper cooling Tapped into a warm keg...

  • Page 14: Service Information

    If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range Corporation at (662) 451-4133 or write to: VIKING RANGE CORPORATION PREFERRED SERVICE 111 Front Street Greenwood,...

  • Page 15: One Year Full Warranty

    To obtain warranty service, contact the dealer from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized...
  • Page 16 Viking Range Corporation 111 Front Street °Greenwood, Mississippi (MS) 38930 USA °(662) 455-1200 Specifications subject to change without notice For more product information, call 1-888-VIKING1 (845-4641), or visit the Viking web site at http://www.vikingrange.com F1755E (PS1002VR)
