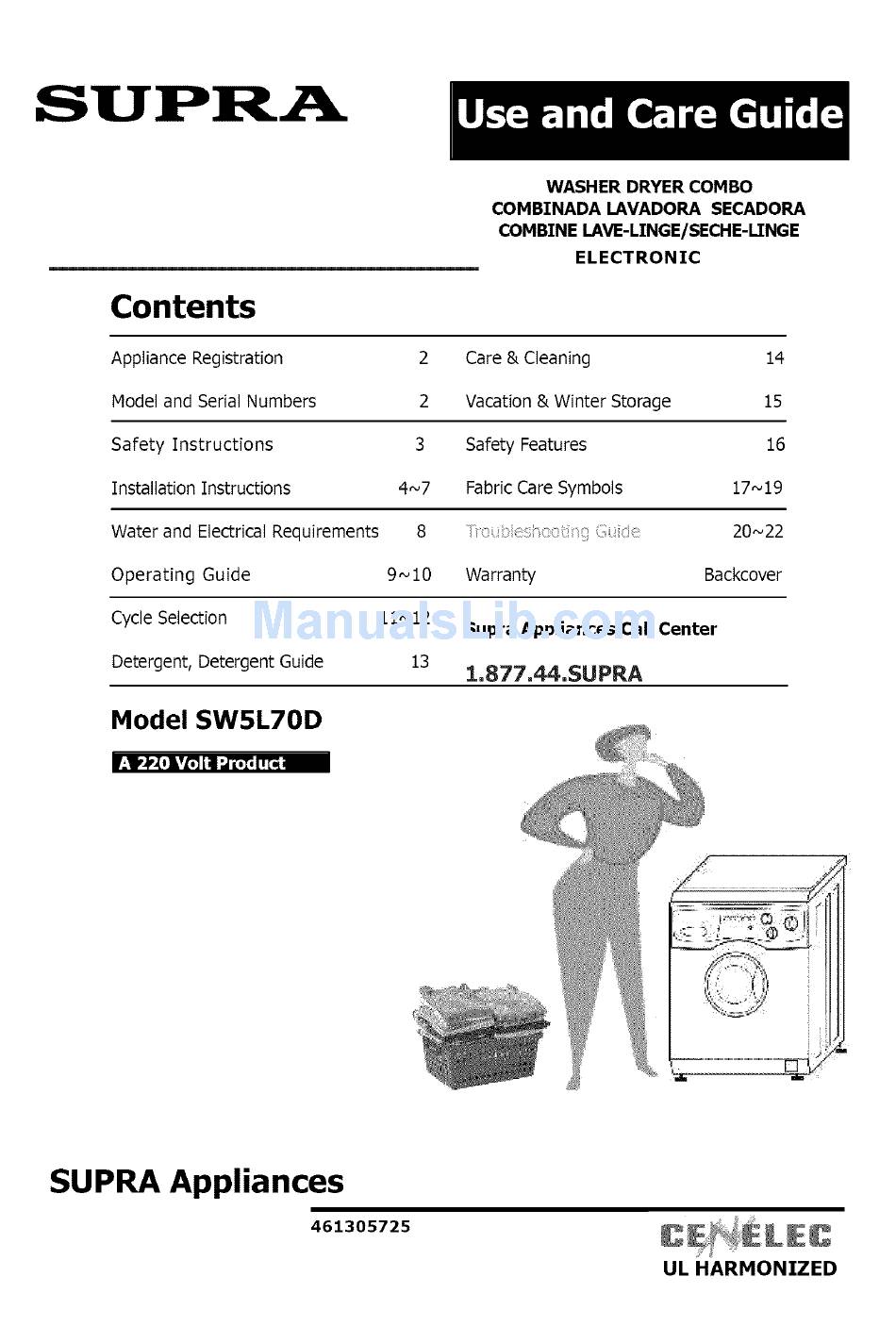

SUPRA
Contents
2
2
3
Installation Instructions
4N7
8
Operating
Guide
9_10
Cycle Selection
11_ 12
Detergent, Detergent Guide
13
WASHER
DRYER COMBO
COMBINADA
LAVADORA
SECADORA
COMBINE LAVE-LINGE/SECHE-LINGE
ELECTRONIC
Model SW5L70D
14
15
16
17_19
20_22
Backcover
Supra Appliances Call Center
1.877.44.SUPRA
SUPRA Appliances
461305725
UL HARMONIZED
Advertisement
Table of Contents
Summary of Contents for Supra SW5L70D
-
Page 1: Table Of Contents
Vacation & Winter Storage Safety Instructions Safety Features Installation Instructions Fabric Care Symbols 17_19 Water and Electrical Requirements 20_22 Operating Guide 9_10 Warranty Backcover Cycle Selection 11_ 12 Supra Appliances Call Center Detergent, Detergent Guide 1.877.44.SUPRA Model SW5L70D SUPRA Appliances 461305725 UL HARMONIZED... -
Page 2: Appliance Registration
If you received NEXT, if you are still not pleased write all the details damaged Washer Dryer ..and call 1.877.44.SUPRA. Explain your problem, a Immediately contact thed:}veyco :ps_y customer service representative from Supra Appli- dealer or the builder... -
Page 3: Safety Instructions
Page 3... - Page 4 Installation sheet ® Tools needed for Installation Operation Of A Condensing Dryer The Supra washer dryer combo offers many improvements in this method of drying, condensing chamber (b) is located outside Multi wrench the tub assembly reducing the amount of heat...
- Page 5 Installation sheet Installation is extremely important for your Washer Dryer to function correctly. :or: STEP 1 PREPARE WASHER DRYER 1, Carefully remove packaging materials from the outside of the Washer Dryer. 2, The Drain hose pipe and the power cord are tied up, Please unstrap.
- Page 6 Make any corrections necessary properly complete installation. If in doubt, call toll- free 1.877.44.SUPRA for guidance on installation issues. WARNING Proper installation is the responsibility of the owner. Service performed as a result of improper setup adjustment or connection are the responsibility of the installer.
- Page 7 Installation sheet Plumbing Shipping Screws Spacers (7 J H (7 sPa_ers Spacers Levelling (,t} Plug and Wall Receptacle Page 7...
-
Page 8: Water And Electrical Requirements
Warning Your Supra washer Dryer is manufactured for operation on 60Hz AC approved electrical service. This model is not designed for use on 50 Hz AC electrical service. We do not recommend conversion. - Page 9 HOW TO USE YOUR WASHER DRYER Making Easy For You ® V. soHz Power Button Antiwrinkle Button -< Push to turn Power ON ( Lights Up when pushed) Press to obtain an anti wrinkle effect. Use in Push to turn off €...
- Page 10 DISPLAY PANEL READINGS Good washing starts with hot water. To get your clothes clean and dry you need hot water, To help you get hot water you Supra washer Dryer automatically _: _ ::tsthe water in the wash cycle. There are 7 basic wash programs and 2 drying programs.
- Page 11 Choose drying time required if you wish to bypass the pre set speed. • Press start. Your SUPRA washer dryer will automatically wash, rinse spin and dry clothes, for you to fold and I_,, away. WASH CYCLE CHART...
- Page 12 Drying Options Choose your drying options from table below to suit your personal preference. Fabric Load Damp Dry Minutes Minutes Cotton & 6 Ibs 1200 Linen Cotton & 4.4 Ibs 1200 Linen Synthetic 3.3 Ibs & Delicate Synthetic 2.2 Ibs &...
- Page 13 Detergent and Detergent Guide to choose Front load machines need much lower detergent right detergent quantity. Follow detergent manufacturer instruc- tions for front load machines. Detergent is flushed First, use only detergent specifically made for use automatically into the drum from the detergent dis- in i_ Washers.
-
Page 14: Care & Cleaning
Care and Cleaning Unplug electric power cord before cleaning Washer Dryer to avoid shock. Cleaning the Exterior Use a soft damp cloth or sponge to wipe up any spills. Occasionally wipe the outside of your unit to keep it looking new. Cleaning Interior The drum is made of stainless steel, specks of rust can be caused by small metal articles like safety pins,... -
Page 15: Vacation & Winter Storage
Vacation & Winter Storage Install and store your washer/dryer where it will not freeze. Because some water may stay in the hose freezing can damage your washer dryer. If storing or moving your washer dryer during freezing weather, winterize it. Nonuse or Vacation care... -
Page 16: Safety Features
Safety Features We Care For You... For the protection of your family and loved ones your Supra Washer Dryer is equipped with many safety features. Child Safe Door An electromechanical safety device in the door prevents it from opening during operation. Door will not open till the unit is shut down and the power button turned OFF. -
Page 17: Fabric Care Symbols 17_19
Fabric Care Care Label Guide The following information is provided by U.S. Federal Trade Commission as par of Project Clean. The symbols appearing on garment labels provide care instructions from the garment manufacturer. These symbols seen on the fabric serve as minimum laun- dering instructions to indicate washing, bleaching drying, ironing &... - Page 18 Fabric Care BLEACH IRON Iron Any Bleach (when needed) Only non-chlorine bleach (when needed) High Medium Warn rig: Do Not Bleach W\srnrig: Do Not :I:ro_ Normal Warn rig: No Steam Permanent Press/Wrinkle Resistant DRY-CLEAN Gentle/Delicate Dry Clean Heat Setting: High Any Solvent Heat Setting: Medium Dry Clean - Normal Cycle: Any Solvent...
- Page 19 • Questions? se Th " .... _:'_ U PROBLEM POSSIBLE CAUSE REMEDY Washer won't fill, rinse or • Is power cord plugged into a 220V power receptacle? drum will not turn • Is Wash Program knob pointing to the correct program number? •...
- Page 20 The Problem Solver PROBLEM POSSIBLE CAUSE AND REMEDY Washer/Dryer leaks • Is Water inlet hose tight? Are all hose washers properly seated? • Is the drain hose clamped and properly installed? • Is the sink or drain clogged? to :,re ion, resting •...
- Page 21 • Check unit is Off, Have you pressed Stop? Wait for about three Door does not open minutes. • Gently hit the door to cause a vibration to release the safety device. To receive more information call toll-free 1.877.44.SUPRA Page 21...
- Page 22 Notes Page 22...
- Page 23 - free Supra Call Center I_877_44_$UPRA Ask any question about Supra appliances. Supra call center information service is available to help. Your call and your question is important to us and will be answered In-Home Repair Service promptly and courteously.
-
Page 24: Warranty
FULL ONE-YEAR WARRANTY succeeding owner For one year from the date of original purchase, Supra products purchased will provide free of charge parts and service labor in !our home to repair or replace any part of the Washer ordinary...
