FEATURES:

• Ultra Lightweight Compact Designs
• Two Pre Amp Channels w/Active EQ
• Input Phase Reverse Switch
• Phantom Power for Condenser Mics

PRODUCT DESCRIPTION

and phenomenal output in surprisingly compact, lightweight cabinets. Each model produces 175 watts as a combo
and 300 watts with an 8 ohm extension cabinet. The amplifier is configured as a 2 channel – 3 input platform and
each channel is equipped with a ¼" unbalanced line input. Channel 2 offers an XLR balanced microphone input
(with phantom power) as well. The 2 inputs on Channel 2 are summed (mixed) together at a 1:1 ratio, so they can
be used simultaneously. Each channel then passes through independent 3 band equalizers with a sweepable
midrange frequency. Equalization centers were carefully selected for use with acoustic instruments. Each channel
also contains individual send controls to the on-board 24-bit 15 program digital effects circuit. The back panel
contains 3 direct outputs with ground lift switch, an effects loop, auxiliary input, headphone jack, effects cancel jack,
and 2-1/4" speaker jacks.
Owner's Manual
– The Shenandoah
• SMPS/Class D Power Amplification Technology
• Neodymium Loudspeaker and Compression Tweeter
• 24-Bit Studio Quality Digital Effects
• Bottom-mounted Tilt Foot
®
Compak 300 series of acoustic amps delivers warm, rich tone
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHENANDOAH COMPAK 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genz Benz SHENANDOAH COMPAK 300

Summary of Contents for Genz Benz SHENANDOAH COMPAK 300

  • Page 1 Owner’s Manual FEATURES: • Ultra Lightweight Compact Designs • SMPS/Class D Power Amplification Technology • Two Pre Amp Channels w/Active EQ • Neodymium Loudspeaker and Compression Tweeter • Input Phase Reverse Switch • 24-Bit Studio Quality Digital Effects • Phantom Power for Condenser Mics •...

  • Page 2: Front Panel

    FRONT PANEL INPUTS ® – The Shenandoah Compak 300 is equipped with 2 types of input jacks. The ¼” input is unbalanced and “line level” with a usable sensitivity from 100 mV to 1.6 volt. The input impedance is 270 k ohms. The ¼” input will also accept most active balanced line sources, automatically unbalancing them by recognizing the tip portion of the balanced signal.
  • Page 3 NAME DESCRIPTION Hall 1 Bright hall reverb Hall 2 Warm hall reverb Room 1 Hardwood studio reverb Room 2 Ambient room reverb Room 3 Warm room reverb for guitars and rhythm instruments Plate 1 Classic plate reverb for lead vocals and instruments Plate 2 Sizzling bright plate reverb for vocals Plate 3...

  • Page 4: Back Panel

    BACK PANEL DIRECT OUTPUTS ® –The Shenandoah Compak 300 contains the most comprehensive direct output section available on any acoustic instrument amplifier. Both XLR balanced and ¼” unbalanced outputs make “real world sense” when connecting with other equipment. The ¼” unbalanced outputs are true professional line level (+4 dBv) with an output impedance of 1k ohm, and can drive virtually any line level input, including power amplifiers.
  • Page 5 POWER INPUT ® – The Shenandoah Compak 300 is shipped from the factory with a standard IEC type power inlet connector and the appropriate detachable power cable for the market the amplifier was shipped to. The power ® input section of the Shenandoah Compak 300 is auto-configuring and will adapt to any input voltage from 100 –...

  • Page 6: Specifications

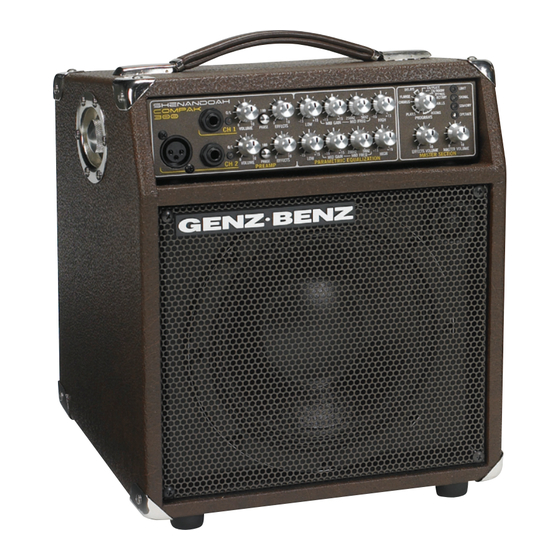

    SHENANDOAH ® COMPAK 300 COMBOS SHEN-CPK-8T This micro amp produces astonishingly high output, warm natural tone with pristine clarity. This combo uses our Neodymium 8” woofer and soft dome tweeter. The unique cabinet is designed so that the chassis controls point up towards the performer.
  • Page 7 Shenandoah ® Compak 300 ENGINEERING SPECIFICATIONS INPUTS XLR Balanced input impedance: 2.2 k ohms XLR Balanced input sensitivity: -60 to –30 dBV ¼” Unbalanced input impedance: 270 k ohms ¼” Unbalanced input sensitivity: -20 to +4 dBV AMPLIFIER OUTPUT Power at 8 ohm load: 175 watts RMS Power at 4 ohm load: 300 watts RMS...

  • Page 8: Declaration Of Conformity

    SAFE OPERATING REQUIREMENTS: • Never set an amplifier on anything that will tip over or collapse under its weight. • Provide a minimum distance of 25.4 mm (1 inch) around all sides of the amplifier for sufficient ventilation. The ventilation should not be impeded by covering the amplifier’s vent openings with items such as newspapers, table-cloths, curtains, etc.
