RLE Technologies MONITORING F110 User Manual

Falcon car satellite radio system user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

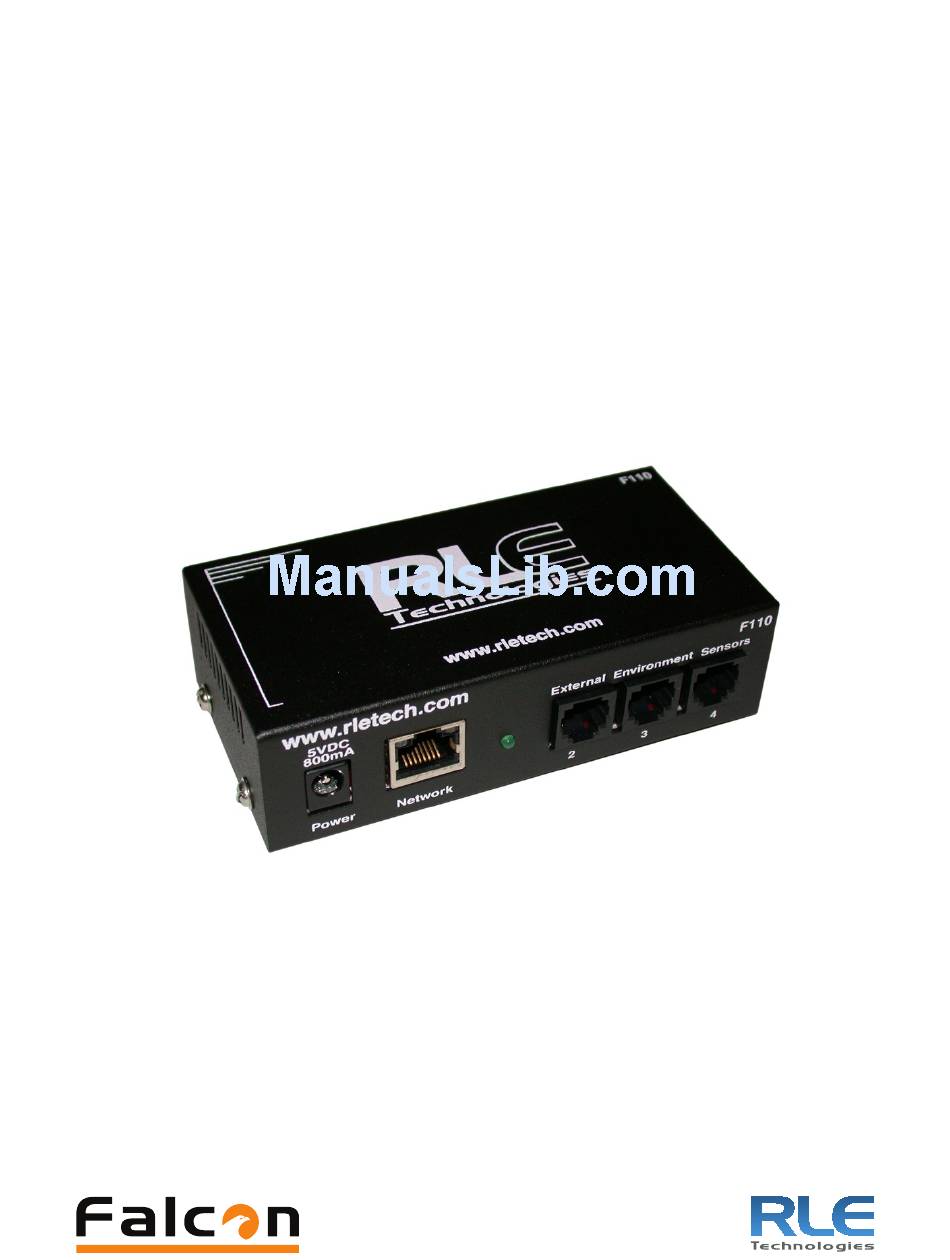

Monitoring
F110 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONITORING F110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RLE Technologies MONITORING F110

  • Page 1 Monitoring F110 User Guide...

  • Page 2: Copyright Notice

    RLE Technologies. Trademark Notices RLE is a registered trademark and Falcon, Raptor, and SeaHawk are trademarks of RLE Technologies. All other trademarks or registered trademarks are the property of their respective companies.

  • Page 3: Product Registration

    Product Registration Product registration helps RLE Technologies inform owners of: • Product upgrades • Firmware enhancements • New products and technologies • Special offers available only to registered users Access and submit Product Registration information from the F110 Configuration Menu. Any information provided to RLE Technologies through the registration form will be regarded as confidential.
  • Page 4 Notes: rletech.com 970.484.6510...

  • Page 5: Table Of Contents

    System Overview ..........11 Product Description.
  • Page 6 Notes: 970.484.6510 rletech.com...
  • Page 7 System Overview ..........11 Figure 1.1 F110 Font Panel Indicators and Controls .
  • Page 8 Notes: rletech.com 970.484.6510...
  • Page 9 Modbus Registers ..........31 Table B.1 Read Output Registers .
  • Page 10 Notes: 970.484.6510 rletech.com...

  • Page 11: System Overview

    1.1. Product Description The F110 Monitoring System is a comprehensive system which provides equipment protection by monitoring critical operating parameters in enterprises, remote network facilities, communication rooms, and critical support systems. The F110 is a stand alone system. It operates via embedded “firmware” that handles all data collection, alarm reporting, and multiple concurrent communication mediums.

  • Page 12: Front Panel Indicators And Controls

    System Overview 1.2. Front Panel Indicators and Controls Figure 1.1 F110 Font Panel Indicators and Controls Power LED – Green (On) if power is on. Network Link – Green (On) if a network connection is found. Network Activity LED – Green (On) if network communication is occurring. Front Panel Power Network...

  • Page 13: Terminal Block Designations

    1.3. Terminal Block Designations Figure 1.2 F110 Terminal Block Designations Rear Panel Switch Sensor Port 1 Switch Sensor Port 2 Switch Sensor Port 3 Switch Sensor Port 4 Switch Sensor Port 5 Switch Sensor Port 6 Switch Sensor Port 7 Switch Sensor Port 8 www.rletech.com Digital Input 1...
  • Page 14 System Overview Notes: www.rletech.com 970.484.6510...

  • Page 15: Getting Started

    2.1. Installation The F110 comes in a 4.5”W x 1.25”H x 2.5”D desktop enclosure. Mount or place the unit in the desired location. A 19 inch (.48m) rack mount enclosure is available from RLE. 2.2. Communication The F110 default is configured with a DHCP IP Address. The RLE Device Discovery Utility scans the network and locates all F110 devices connected to the network.

  • Page 16: Search

    Getting Started 2.2.1 Search Select the Search button to scan the network for the F110 hardware devices. If an F110 is physically attached to your network anywhere it will be located in this scan. Note If the Device Discovery Utility can not find the F110, reset the unit by unplugging the power adapter and then plugging it back in.

  • Page 17: Update

    Getting Started 2.2.6 Update Click the Update button to update the firmware installed on the selected F110. Updated firmware files provided by RLE, add new features and enhance the web browser interface. These firmware updates are available from RLE if firmware replacement is necessary. Note When obtaining the F110 Firmware Update file from the RLE Technologies website, be sure to save the file instead of opening it from a web browser.

  • Page 18: Rj45 Ethernet Connection

    Getting Started 2.3.2 RJ45 Ethernet Connection The F110 has an internal 10/100BaseT Ethernet port used to configure and monitor the F110. The Ethernet port supports Web browser access, email (SMTP), Modbus, and SNMP. The following figures show the physical connection. Figure 2.4 Physical Connection Figure 2.5 shows a typical F110 connection on a subnet using a hub or switch and straight through Network Patch cables.

  • Page 19: F110 Web Interface

    Status Screen Figure 3.1 F110 Status Screen The Falcon F110 Status Screen is available through the built-in web server and shows the current status of the attached sensors. If high and low alert thresholds are defined for the temperature or temperature/humidity sensors, the status icon above the sensor label changes www.rletech.com...

  • Page 20: Settings Screen

    F110 Web Interface color based upon where the temperature or humidity is in relation to the established high and low thresholds. If the temperature or humidity is between the high and low thresholds and more than five (5) degrees from either threshold, the status icon will be green. If it is within five (5) degrees of the high threshold, the status icon will be yellow.

  • Page 21: Network

    Note There is no user name or no password from RLE. Password can be assigned to the unit later in the configuration menu. There is no user name that can be configured at this time. 3.3.1 Network The Network tab stores settings to control how the F110 appears on the local network. Modifying the DHCP name will change how the F110 reports to the DHCP server when attempting to obtain a dynamic IP address.

  • Page 22: Email

    F110 Web Interface 3.3.2 Email The Email tab stores settings for the F110 to send Email Alert Notifications when alert thresholds are exceeded. In order to enable email alerting from the F110's web server interface, your mail server must have SMTP Relay enabled for either your network or the IP address of the F110.

  • Page 23: Snmp

    Note Many email servers block SMTP email by default. To use SMTP email with the F110, be sure the F110 IP address is added to the list of allowed SMTP relay hosts on the email server you are using for email. Note After you make a field change, click on Accept Changes at the bottom of the screen, after verifying the settings are ok, click on the Save Settings tab located on the left hand column.

  • Page 24: Channel 2, Channel 3 And Channel 4

    F110 Web Interface 3.3.4 Channel 2, Channel 3 and Channel 4 The Channel 2, Channel 3 and Channel 4 tabs are used to configure sensor labels and to set temperature thresholds, temperature/humidity thresholds and/or alarm states for the sensors connected to sensor channels 2, 3 and 4 on the front of the F110. Sensor labels can be up to 14 characters in length.

  • Page 25: Switched Sensor Alarm Configuration

    F110 Web Interface Figure 3.6 Sensor Settings 3.3.5 Switched Sensor Alarm Configuration The Channel 1 tab is used to configure sensor labels and alarm states (normally open or closed) for the eight (8) switch sensor ports (dry contact inputs) on the back of the F110 unit. Sensor labels can be up to 15 characters in length.

  • Page 26: Advanced

    F110 Web Interface Figure 3.7 Security Settings 3.3.7 Advanced The Advanced tab is used to configure the Temperature Scale Configuration, Time & Date Configuration by connecting to a NTP server and provides a Trace Configuration for diagnostics when communicating to other equipment. If you wish to modify the time display on the Status screen to the local time zone, use the drop down box to select your local time zone, check the Daylight Savings Time checkbox if applicable and click Save Settings.

  • Page 27: Reset Defaults

    F110 Web Interface Temperature Scale Conversion: You can select how the F110 displays the Temperature output on the Status page, either being Fahrenheit or Celsius. Time & Date Configuration: Enter an IP address of a NTP server for the F110 to synchronize with for displaying current date and time information.

  • Page 28: Help Screen

    F110 Web Interface 3.3.9 Help Screen The Help screen displays the current firmware on the F110 unit. There are hyperlinks available for contacting RLE Technologies, RLE Technical Support, and Web Site link for viewing other RLE products and information. Figure 3.10 Help Screen 3.3.10 About Screen The About screen also displays current information and provides links and information for contacting RLE Technologies.

  • Page 29: Modbus Configuration Via Telnet

    ODBUS HAPTER A.1. F110 Modbus Capabilities By default, the F110 is enabled to listen on TCP port 502 for Modbus requests. The Modbus module can be enabled or disabled, the TCP port can be changed, and a list of IP addresses can be specified and used to either allow or deny Modbus requests.

  • Page 30: A Modbus Configuration Via Telnet

    Modbus Configuration Via Telnet Enable MODBUS? (N)? Enter Y to enable Modbus and N to disable it. When Modbus is disabled, the F110 will not actively listen on the Modbus TCP port for Modbus requests. MODBUS Port: (502) By default, the F110 listens for Modbus requests on TCP port 502. This port can be changed to any valid TCP port number although it is recommended to leave it set for port 502 to ensure compatibility with other Modbus devices on the network.

  • Page 31: Table B.1 Read Output Registers

    Table B.1 Read Output Registers Register Name Description 40002 Family Code (8 Switch Sensors) 40003 Switch Status (8 Switch Sensors) 40004 Current Alarm Setting (8 Switch Sensors) 40005 Current Alarm State (8 Switch Sensors) 40009 Family Code (External Sensor 1) 40010 Current Temperature (External Sensor 1) 40011...

  • Page 32: B Modbus Registers

    Modbus Registers Table B.1 Read Output Registers (continued) Register Name Description 40026 Low Temperature (External Sensor 3) 40027 Current Humidity (External Sensor 3) 40028 High Humidity (External Sensor 3) 40029 Low Humidity (External Sensor 3) 40038 Current Temperature (External Sensor 1) 40039 High Temperature (External Sensor 1) 40040...

  • Page 33: B Modbus Registers

    Table B.3 Status Flags (Register 40003: SS) (continued) Status Flag Switch Sensor 8 Status; 1 = On, 0 = Off 08-15 Spare Table B.4 Status Flags (Register 40004: SC) Status Flag Switch Sensor 1 Alarm On: 1 = Closed, 0 = Open Switch Sensor 2 Alarm On: 1 = Closed, 0 = Open Switch Sensor 3 Alarm On: 1 = Closed, 0 = Open Switch Sensor 4 Alarm On: 1 = Closed, 0 = Open...
  • Page 34 Modbus Registers Notes: www.rletech.com 970.484.6510...

  • Page 35: Table C.1 Technical Specifications

    Table C.1 Technical Specifications Power Wall Adapter Input Inputs Temperature/Humidity Digital (Dry Contact) Input Cable Length Communications Ports Ethernet Protocols TCP/IP; NTP HTTP/HTML; Telnet SNMP SMTP (Email) Modbus (TCP/IP) Alarm Notification Email SNMP Traps Login Security Web Browser Access Front Panel Interface LED Indicators www.rletech.com ECHNICAL...

  • Page 36: C Technical Specifications

    Technical Specifications Table C.1 Technical Specifications (continued) Operating Environment Temperature Humidity Altitude Storage Environment Dimensions Box Enclosure Rack Mount – Optional Weight Box Enclosure Rack Mount – Optional Mounting Temperature Sensor – Optional Temperature/Humidity Sensor – Optional Certifications www.rletech.com -40°F to 185°F (-40°C to 85°C) 5% to 85% RH, non-condensing 15,000ft (4,572m) max.
