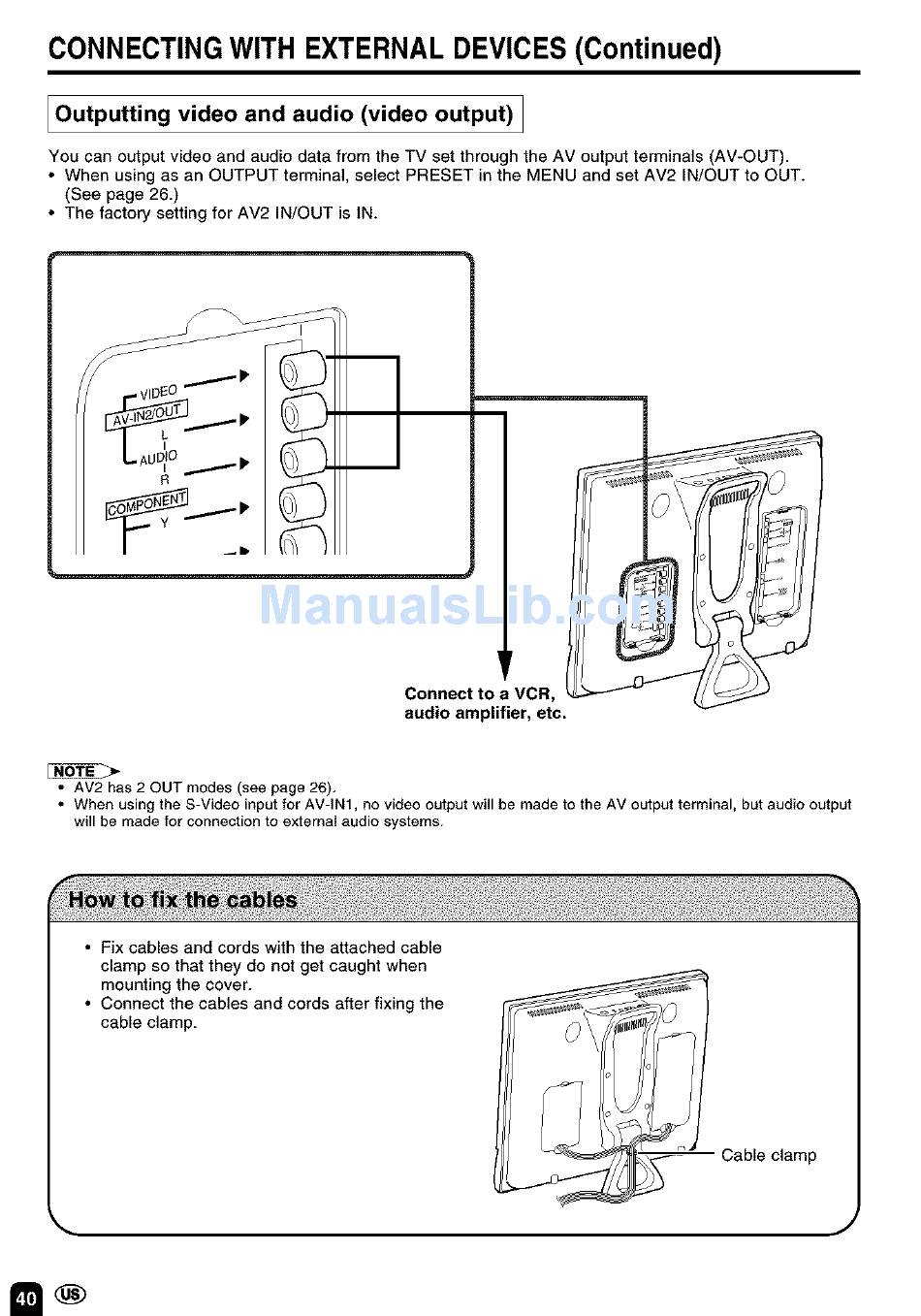

CONNECTING WITH EXTERNAL DEVICES (Continued)

I Outputting

video and audio (video output)

You can output video and audio data from the TV set through the AV output terminals (AV-OUT).

• When using as an OUTPUT terminal, select PRESET in the MENU and set AV2 IN/OUT to OUT.

(See page 26.)

• The factory setting for AV2 IN/OUT is IN.

;

Connect

to a VCR,

audio amplifier,

etc.

• AV2 has 2 OUT modes (see page 26).

• When using the S-Video input for AV-IN1, no video output will be made to the AV output terminal, but audio output

will be made for connection to external audio systems.

• Fix cables and cords with the attached cable

clamp so that they do not get caught when

mounting the cover.

• Connect the cables and cords after fixing the

cable clamp.

Cable clamp
