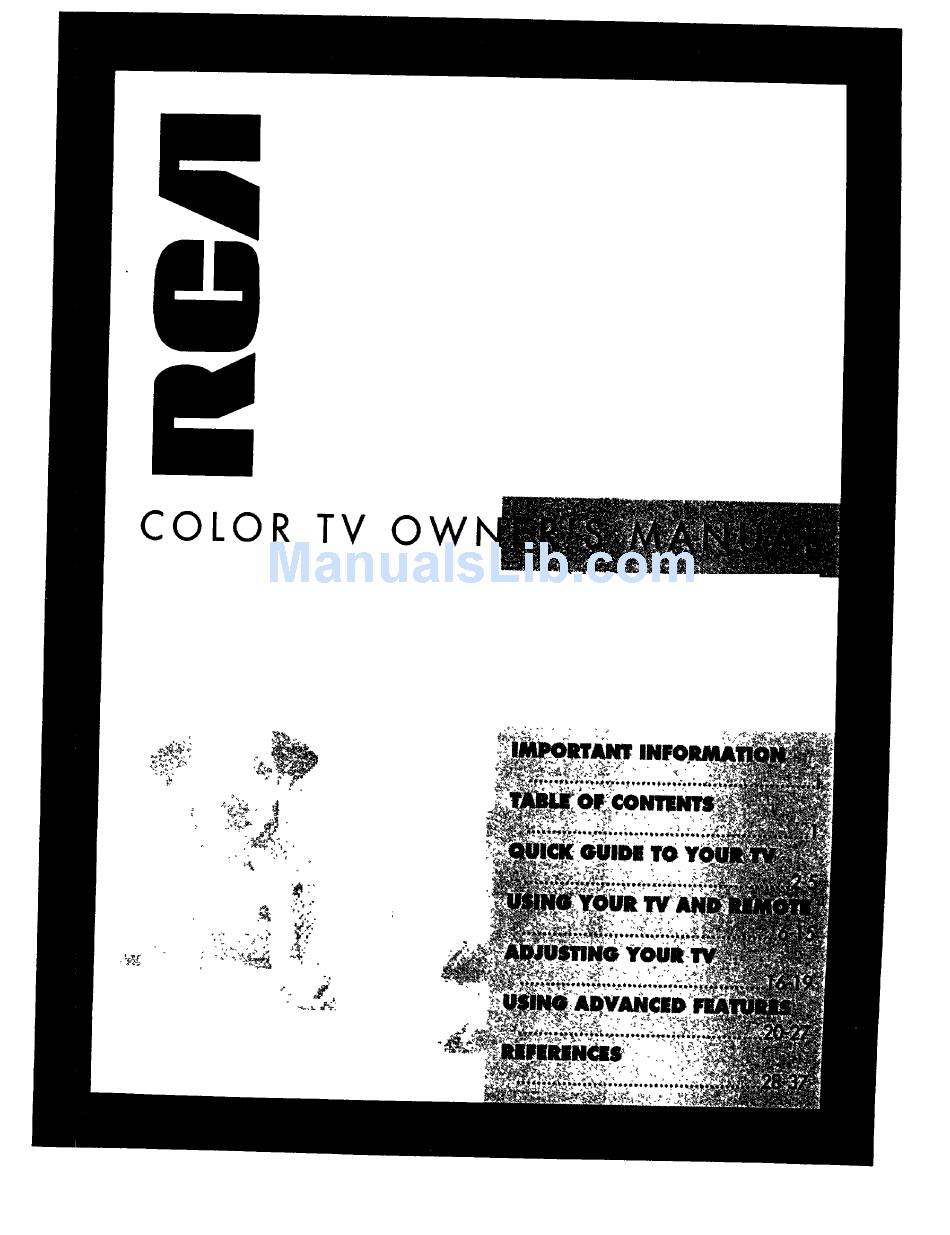

- Page 1 COLOR TV OW...
- Page 2 Important Information WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER To prevent fire or shock SERVICEABLE PARTS INSIDE. REFER SERVICING RISK OF ELECTRIC SHOCK hazard, do not expose this DO NOT OPEN TO QUALIFIED SERVICE PERSONNEL TV to rain or moisture.
- Page 3 Table of Contents Important Information Warning, Product Registration Quick Guide to Your TV Startup Hook up your TV, Plug in the TV, Put Batteries in the Remote, Turn on the TV, Place Channels into Memory, Set the Time Basic Tour of the Remote Basic Button Layout and Functions Menu Basics...
-
Page 4: Quick Guide To Your Tv Startup
Quick Guide to Your TV Startup The steps below will get your TV connected and ready for watching. For more details, see the page numbers listed. Hook up any antennas, cables or 1. Hook up your TV other equipment to your TV before Details are in the Connections you follow the steps below. -
Page 5: Quick Guide To Your Tv Startup
Quick Guide to Your TV Startup Press "IVon the remote. Turn on the TV Press POWER on the TV. A. Press MENU until the Setup 5. Place all available menu is selected. This menu is channels in memory white. (AutoProgram) Press + to start placing channels Controls Alarm Ad Details for adding and deleting... -
Page 6: Basic Tour Of The Remote
Quick Guide to Your TV Basic Tour of the Remote Basic information about your remote is shown below. This will give you a general idea of how your remote works. For more details, see pages 6-15. 'IV Power Turns the TV on. Button Sets the remote to control the TV. - Page 7 Quick Guide to Your TV Menu Basics General information about using the on-screen menu system is shown below. Details on using the remote buttons are on pages 6-7. Many menu items are explained in detail in Using the Advanced Features starting on page 20. Yellow Green Light White...
-
Page 8: Using Your Tv And Remote With Remote Buttons
Using Your TV and Remote With Remote Buttons Power Buttons Turns off the TV. Turns on the TV. Shows the displays on the screen. Turns off compatible VCRs. Sets the remote to control the TV. ON/OFF See Using the Remote with a VCR, Turns on a component after a Cable Box, Laserdisc Player and Audio component... -
Page 9: Using Your Tv And Remote With Remote Buttons
Using Your TV and Remote With Remote Buttons Component Buttons AUDIO, VCR1, VCR2, LDISC, VCR2 and LDISC can only be CABLE, "IV programmed for one component:. Sets the remote to control the either a Laserdisc Player or a VCR. component. See Using the Remote with a VCR, Cable Box, Laserdisc Player and Audio equipment on pages 8--15. -
Page 10: With Vcrs
Harman Kardon ......14 Video Concepts ......14,16 Videosonic ........Quartz..........02 Hitachi ....... 05,15,35,36 Wards ..........Quasar ..........08 Instant Replay ......... 08 ....05,06,07,08,12,13,15,25,31,35 RCA ....00,05,07,08,28,35,37 JCL ............O8 Yamaha ......02,14,16,30 Realistic ..02,06,08,09,12,15,19,43 JCPenney ..02,05,07,08,14,16,30,35 Zenith ......... 11,17 Samsung .......07,13,22,32,42 JVC ........ - Page 11 Using Your TV and Remote With VCRs: Setting the VCR1 Channel The VCR 1 Channel works with VCR1 on the remote. If the VCR 1 Channel is set, pressing VCR1 selects the channel to see the VCR picture. The VCR 1 Channel setting depends on which diagram you have used from the Connection Guide.
- Page 12 Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and the next will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A.
-
Page 13: With Vcrs
Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and page 10 will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A. -
Page 14: With A Cable Box
17,21,49,50 ..07,08,19,21,26,28,29,32,33,40,41 Unika ........31,32,41 Pioneer ........18,20,44 ....04,os,15,_,_,_,3o,36,46 Viewstar ..........Randtek ........07,08 Hamlin ....... 12,13,34,48 RCA ..........00,27 ..07,08,19,21,26,28,29,32,33,40,41 Hitachi ........37,43,46 Warner Amex ........Jerrold ............ Regal ..........12,13 Zenith ........... 14,42 Regency ........ -
Page 15: With A Cable Box
Using Your TV and Remote With a Cable Box: Setting the Cable Channel The Cable Channel works with CABLE on the remote. If the Cable Channel is set, pressing CABLE selects the channel to see cable channels. The Cable Channel setting depends on which channel your cable box must be on to see cable channels. - Page 16 D. Use the buttons on the remote that relate to laserdisc player functions. Not all buttons high- lighted may work with your laserdis,: player. E. Press ON/OFF to turn it off. Laserdisc Player Codes Proscan .......33 ', Pioneer ......33 RCA ......33...
-
Page 17: With Audio Equipment
Refer to the Connection Book or your Audio equipment owner's manual to hook up your audio equipment. Your remote controls only RCA audio equipment such as a radio, CD player, tape player, turntable, or amplifier. remote may need to be programmed for your equipment. -
Page 18: Adjusting Your Tv Overall Picture
Adjusting Your TV Overall Picture Follow the steps below to lighten or darken the overall picture without changing the color levels. Press MENU to select the Controls 1. Select the Controls Menu menu. This menu is yellow. Alarm Press CHANNEL down to 2. -
Page 19: Picture Settings
Adjusting Your TV Picture Settings Follow the steps below to change the picture on the screen to your personal setting. The chart at the bottom of the page explains your options. Press MENU repeatedly to select the Select the Adjust Menu Adjust menu. -
Page 20: Sound Settings
Adjusting Your TV Sound Settings: Stereo and Tone Follow these steps to adjust the Stereo or Tone of your TV. The chart below explains your options. Press MENU to select the Controls 1. Selectthe Controls Menu menu. This menu is yellow. Alarm Ad Press CHANNEL down to 2. -
Page 21: Sound Settings
Adjusting Your TV Sound Settings: Speakers Follow the steps below to turn the speakers on or off in your TV. The chart below explains your options. Press MENU repeatedly to select 1. Select the Setup Menu the Setup menu. This menu is white. -
Page 22: Using Advanced Features Placing Channels In Memory/Autoprogram
Using Advanced Features Placing Channels in, Memory (Autoprogramming) Only channels 2-13 appear in the TV's memory when you arst turn it on. The channels available in your area must be programmed into the TV's memory when you hook up your TV. Using CHANNEL up or down allows you to scan through these channels. -
Page 23: Naming The Channels
Using Advanced Features Naming the Channels You can name the channels using the character list below. Full appears beside Label when the memory is used up. Fixed appears beside Label for channel 00--it cannot be named. A. Press MENU repeatedly to select Name a channel... -
Page 24: Setting The Sleep Timer
Using Advanced Features Setting the Sleep Timer You can set your TV to turn itself off. If you're watching TV at night and fall asleep, the TV will turn off for you. A. Press MENU to select the Set Sleep Timer Controls menu and highlight Sleep Timer. -
Page 25: Setting The Alarm Clock
Using Advanced Features Setting the Alarm Clock The "IV can be set to turn on each day like your alarm clock. You can set it to turn on to your favorite channel at a certain time. You can also set it to turn itself off again. -
Page 26: Watching Picture-In-Picture
Using Advanced Features Watching Picture-in-Picture (Not on all models) Picture-in-Picture allows you to display a small picture within the big picture of the TV screen. To watch two different programs at once, you must connect a VCR, Laserdisc Player or Camcorder. You may need to disable the VCR1 Channel if you can not get two different programs at once. -
Page 27: Watching Picture-In-Picture
Using Advanced Features Watching Picture-in-Picture (Not on all models) Press MOVE to move the small Move the small picture picture to the next corner. Press SWAP to switch the small Swap the big picture with picture with, the big picture. the little picture A. -
Page 28: Watching Closed Captioning
Using Advanced Features Watching Closed Captioning Closed captioning displays the audio portion of a program as words on the TV screen. It is useful for the deaf, hearing impaired, or anyone who wants to watch a program without sound. If you have turned Closed Captioning on and it does not appear on the screen, it is not available on the channel you are watching. -
Page 29: Setting Your Tv For Antenna Or Cable
Using Advanced Features Setting Your TV for Antenna or Cable Your TV automatically adjusts this feature when the TV places channels in memory (autoprogram). Follow the steps below to change the setting as needed. Press MENU repeatedly to select Select the Setup menu Setup menu. -
Page 30: References Front Panel Buttons
References Front Panel Buttons For details on using buttons with menus, see Menu Basics on page 5. 'OH/% VOL- VOL+ POWE_ MENU Shows menus on screen. Moves from menu to menu. CH ^ and v Channel up and down. Scans up and down through channels in the TV's memory. Moves up and down menus. -
Page 31: Displays On The Screen
rl!_ I !l_l !_115_;_ Displays on the Screen Your TV shows the settings of several features on the screen. To see what features have been set on your TV, press DISPLAY on the remote. 12:00 AM KNBC 13 or Video 00, S-Vid 00 Alarm Sleep PIP 00... -
Page 32: Trouble Checks
References Trouble Checks You may have problems that can be fixed with a few minor adjustments. Look for the type of problem you are having below and then try the suggestions to get your TV going again. For warranty information see page 32. Trouble Checks and Adjustments... -
Page 33: Trouble Checks
References Trouble Checks Checks and Adjustments Trouble Remote Buttons don't work when you Press "IV to set the remote to control the TV. See buttons on page 6-7. press them Works part or none of the Clear the path between the remote and TV of any objects. -
Page 34: Limited Warranty
RCA Television Servicenter the labor charges to repair your television. Pay any Authorized RCA Television Servicenter for the new or, at our option, rebuilt replacement parts and picture tube required to repair your television. For screen sizes of 20" and smaller: Take your RCA television to any... -
Page 35: Order Form For Parts
References Order Form for Parts Remote #215419 Order Form If your TV has the Book No. 1Q57 368-05A pic_*ure-in-picture feature, this is the remote that came packed with your Part Part Number Price Total TV. You can use the order form at Cleaner AH035 i $ 6.95... -
Page 36: Order Form For Parts
References Order Form for Parts U.S. and (_anadian Orders USE YOUR CREDIT CARD VISA" By Phone: Copy complete account number 1 - 800 - 338 - 0376 Call this toll-free number between IIII I[-T-I-I 17--T-] 8AM and 8PM Eastern Standard Time and place your order using your Visa Card expires: or MasterCard. -
Page 37: Glossary
References Glossary S-VHS Antenna Display A device used to receive broadcast A word, words or graphics that Super Video. A format used by some VCRs and Camcorders signals from TV stations. appear on the TV screen. which improves the picture Audio Inputs quality. -
Page 38: Index
References Index CABLE/ANTENNNA Jack ..15 Delete Channels from Memory .20 Adding Channels to Memory..20 Disabled ........Cable Box ......... 12,13 Adjust Menu Autocolor ........17 Cable Box Codes ......12 DISPLAY Button ....... 6,23 CABLE Button ...... 7,12,13 Displays (On-Screen) .... - Page 39 Trouble Checks ....... 30,31 Turn on Alarm ......23 REC / Record Bu tton .... 7,11,15 Menu ..........Turn on Picture-in-Picture ..24,25 References ....... 28-37 MENU Buttons ......4,5 Turn on TV ........2 Menus ........i..5 Glossary ........35 Order Form for Parts ...
- Page 40 Thomson Consumer Electronics is one of the first corporations to take part in a special program to improve our environment. Thomson has committed itself to a voluntary initiative program through the U.S. Environmental Protection Agency. The program's purpose is to reduce toxic air emissions and to promote pollution prevention.
