  6. Owner's manual

POWERWINCH VR-192 Owner's Manual

Electric winch - 12 volt
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

#3910=0M
--_
r -o

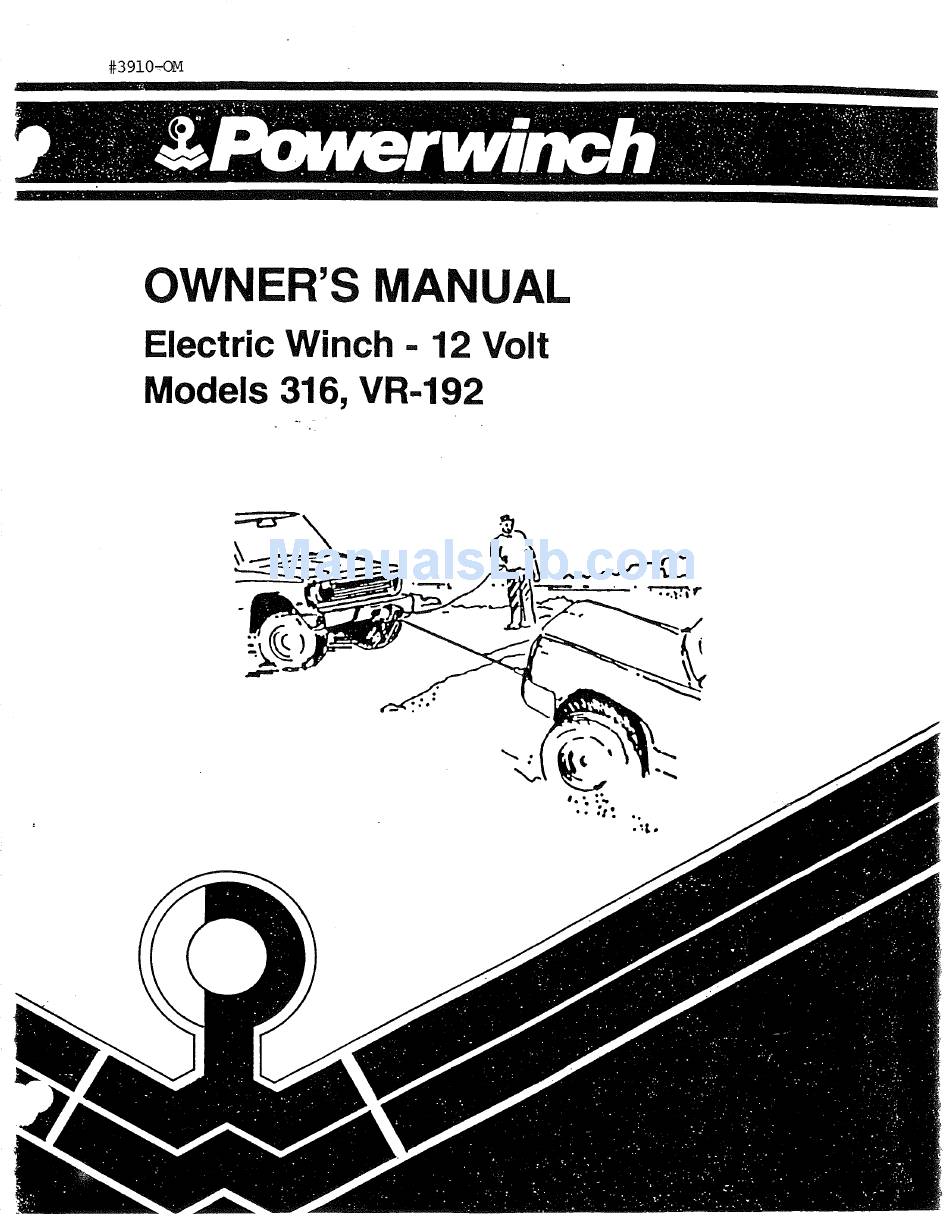

OWNER'S MANUAL
Electric Winch - 12 Volt
Models 316, VR-192

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR-192 and is the answer not in the manual?

Questions and answers

Related Manuals for POWERWINCH VR-192

Summary of Contents for POWERWINCH VR-192

  • Page 1 #3910=0M r -o OWNER'S MANUAL Electric Winch - 12 Volt Models 316, VR-192...
  • Page 2 [_li : 1_ _vl[e]il 0i _ people who have read and understandthe replace it with one of the same size and Powerwinch safety rules use your winch. For mounting on a vehicle with a trailer hitch strength. Use Powerwinch...
  • Page 3 SECTION II Powerwinch HOW TO USE YOUR WINCH Always leave the last three (3) turns of cable • The winch must be securely attached to a structural member or frame that Is on the drum. This prevents the cable fastener STEP 4 from pulling out under heavy load.
  • Page 4 SECTION II SECTION. III HOW TO USE YOUR WINCH MAINTENANCE/SERVICE USE YOUR WINCH running motor. This could damage the winch and/or solder the end of the cable to the fastener. A. CABLE--Lu_icate the cable occasionally with hurt the user. TrI-Matlc Control Knob and Cable...
  • Page 5 SECTION IV EXPLODED PARTS DRAWING...
  • Page 6 DESCRIPTION QTY USED PART # ID # KEY # 78161 Socket Solenoid 78118 78604 12-10 Ring Terminal 78113 Switch for Remote Control assy. 74100 Remote control housing 72012 Motor 72203 Motor Strap 71721 Motor Gear 70204 Levelwind spring retainer 70203 Levelwind spring 79712 1/2-20 Nut...
  • Page 7 VR-1 TO MAINTAIN EFFICIENCY OF UNIT LUBRICATE THIS IS A PERMANENT MAGNETIC MOTOR AND IS POLARIZED FOR ROTATION. CABLE OCCASIONALLY WITH WHITMORE'S WIRE ROPE SPRAY--LPS-3, Make sure your wiring connections conform to instructions. SIMILAR PRODUCT. Reversing may cause motor gear to back off the threaded shaft, and/or possible damage to motor or wiring.
  • Page 8 #3910-0M 79402 Knob 71902 Backlash spring 71612 Thrust race .030 79800 Spring washer 71613 Thrust race .060 71609 Bearing_ 71755 PinionGear 73602 Clutch lining 71716 Powdered metal gear 79715 %-18 hex nut 71605 Bearing 71101 Clutch assy stud 70132 Frame 71820 Spacing Washer 71953...
