MTD 340 Series Operator's Manual
  1. Manuals
  2. Brands
  3. MTD Manuals
  4. Tiller
  5. 340 Series
  6. Operator's manual

MTD 340 Series Operator's Manual

Front tine tillers
Hide thumbs Also See for 340 Series:

Advertisement

Table of Contents

See also: Owner's Manual

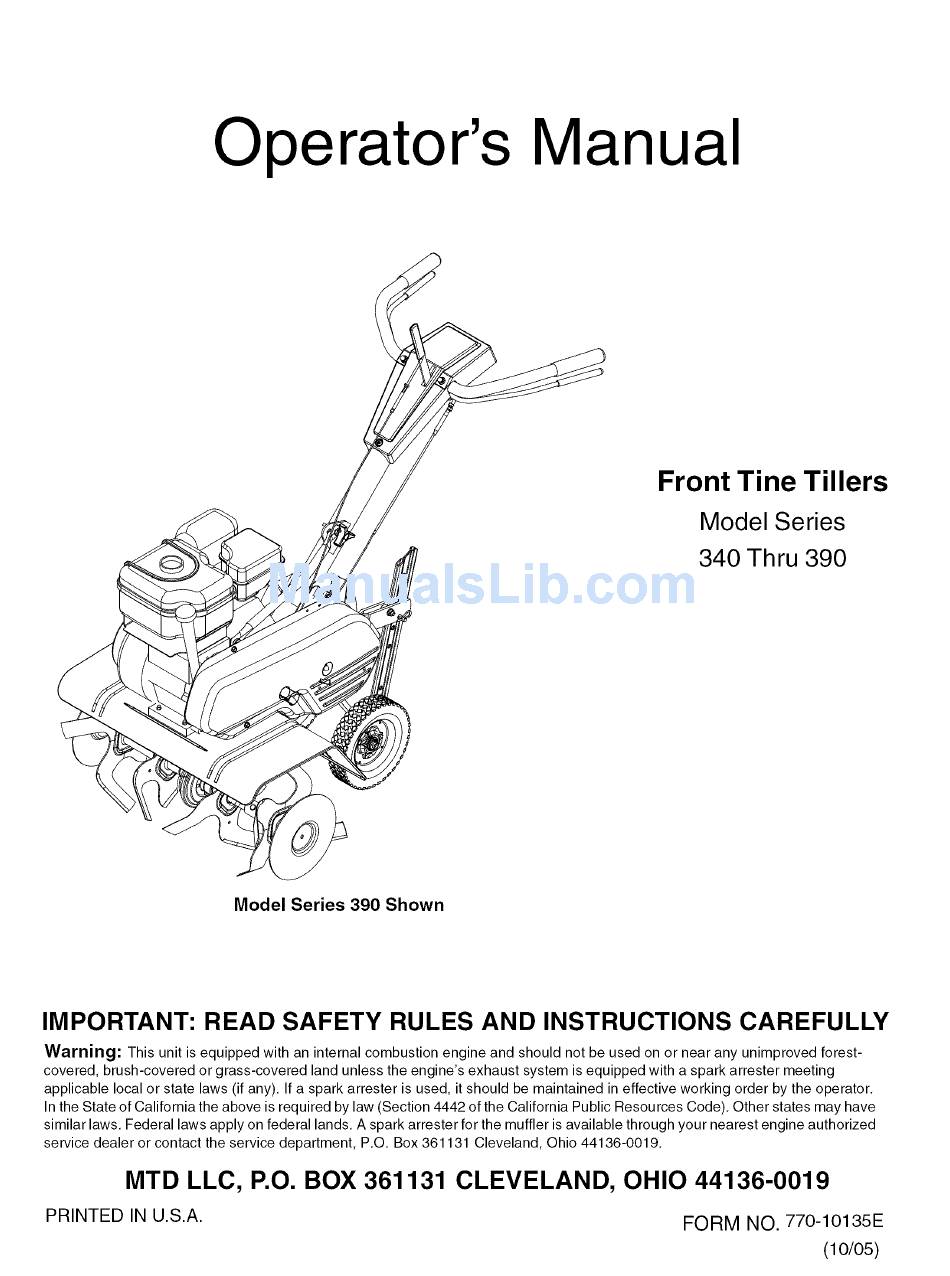

Operator's Manual
Front Tine Tillers
Model Series
340 Thru 390

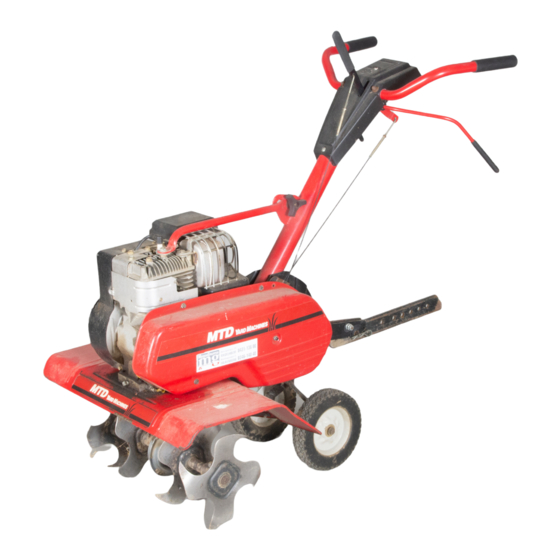

Model Series 390 Shown
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-
covered, brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable
local or state laws (if any), If a spark arrester is used, it should be maintained in effective working order by the operator,
In the State of California the above is required by law (Section 4442 of the California Public Resources Code), Other states may have
similar laws, Federal laws apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department,
P,O, Box 361131 Cleveland, Ohio 44136-0019,
MTD LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 770-10135E
(10/05)
