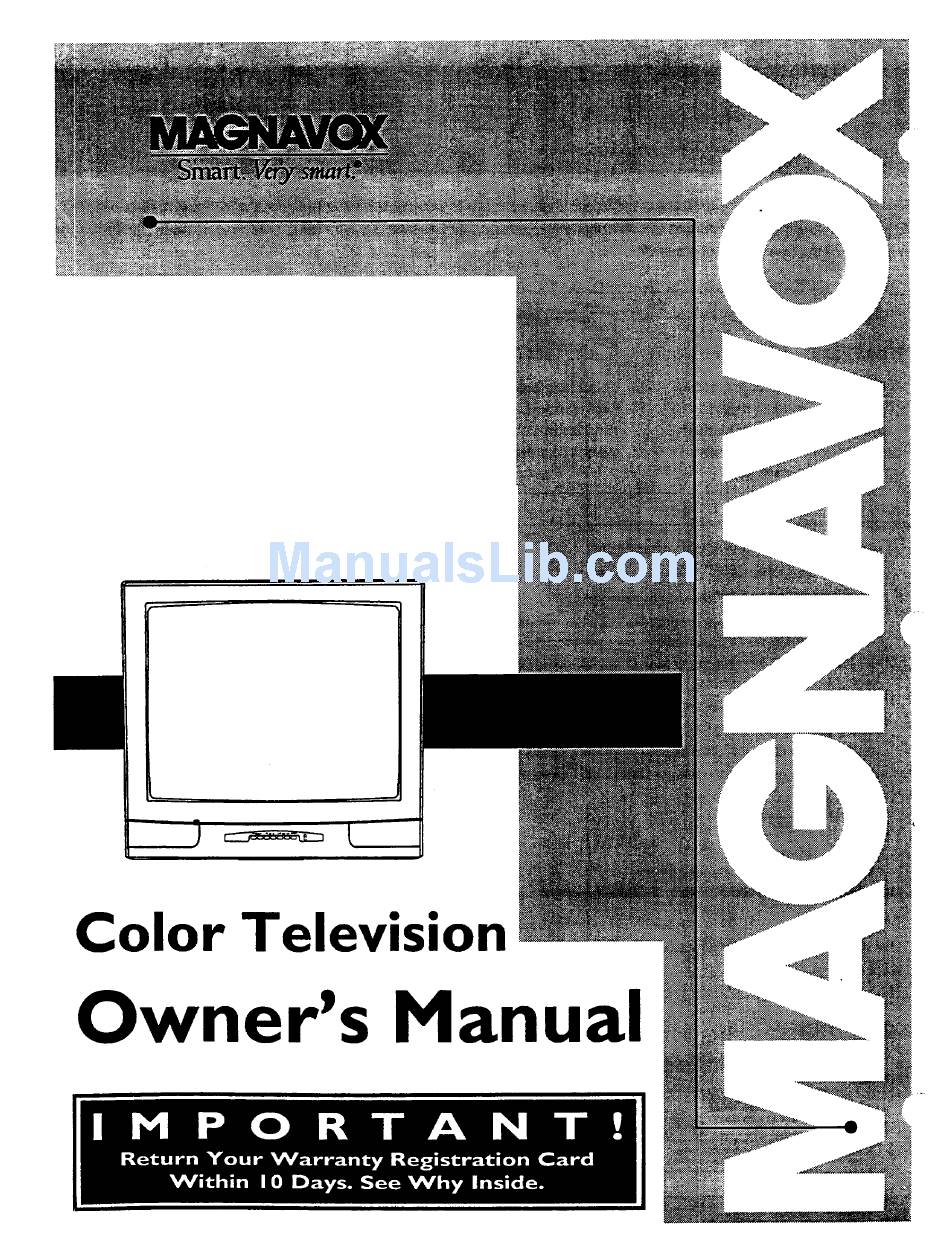

Color Television
Owner's
Manual

Advertisement

loading

Related Manuals for Magnavox TP3573

Summary of Contents for Magnavox TP3573

  • Page 1 Color Television Owner's Manual...

  • Page 2: Safety Symbols

    Once your MAGNA VOX purchase is registered, you're eligible to receive all the privileges of owning a MAGNAVOX product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

  • Page 3: Safetyinstructions - Read Before Operating Equipment

    SAFETYINSTRUCTIONS - Read before operating equipment 12. Cleaning - Theappliance s houldbe cleaned onlyas recommended -, Thisproduct w as designed andmanufactured to meetstrictquality and bythemanufacturer. safetystandards. Thereare, however, someinstallation a nd operation 13. PowerLines- An outdoor antenna shouldbe located awayfron, precautions whichyoushould bei_rticulady aware of.
  • Page 4 Introduction Welcome/Registration of Your TV ......2 Use the simple Set-Up Guide (supplied with Safety/Precautions ............. your TV information packet) for details on: Table of Contents ............• Antenna Hook-ups Features ..............• First Time Set-Up (Automatic Settings) On-Screen (MENU) Features •...
  • Page 5 OeTE: If you went through ..rap (in your Quick Use Guide), this task has already been completed for you. You need to make sure that the TV is set to pick up either Cable TV stations or Antenna signals. In other words, the TV needs to know whether you have connected a Cable TV signal or a normal...
  • Page 6 OTE: If you went through etup (in your Quick Use Guide), this task has already been completed for you. Your TV can automatically set itself for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CH(annel) •...
  • Page 7 uto Programming (see previous page) adds all the channels it can find (on your Antenna or Cable TV system) into the TV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the TV's memory.
  • Page 8 lOSed Captioning allows you to ad the voice content of NOTE: Not all TV programs and product commercials are made for broadcast television programs on the TV with Closed Caption (CC) information included. Neither are all Closed Caption screen. Designed to help the modes (CAPTION 1-4, or TEXT 1-4)) necessarily being used by a broadcast hearing impaired this feature uses station during the transmission of a closed caption pro_am.
  • Page 9 our TV can receive broadcast tereo TV programs. The TV has both an amplifier and twin speakers through which the stereo sound can be heard. <_ Press the MENU (M) button on the remote, then press the MENU • or • buttons to select the word STEREO with the TV's on-screen arrow.

  • Page 10: Volume Bar

    g_ggUnd Image can be used to add reater depth and dimension to both monaural (MONO) and stereo TV sound. With the control turned ON the TV's speakers can add even wider sound separation to normal broadcasts. Press the MENU button on the remote, then press the MENU •...
  • Page 11 "list" or series of previously viewed channels can be selected with the SURF button on your remote "2CHANNEL SURF - i Current and one previous control With this feature you can To Use 2- channel. easily switch between different Channel Surf: SMART SURF - Current programs that currently...
  • Page 12 _o adjust your TV picture controls, select a channel and foll'ow the steps shown below: <_ Press the MENU (M) button on the remote, then press the MENU • or V buttons until the desired control shows on-screen. <_ Press the (+) and (-) buttons to adjust the selected color control.
  • Page 13 OTimTE: If you went through First e Setup (page 2 of the Quick Use Guide), this task has already been completed for you. Your TV comes with an on-screen clock. During normal use the clock shows on the screen with every channel change (and when the STATUS button is pressed.) PRESS - TO...
  • Page 14 ust like an alarm clock you can et the TV to turn itself on at Remember, the TIMER the same time everyday. SETI'ING will not [BEGIN} take place unless the Press MENU (M) button on TIMER Menu the remote, then press the MENU control is also set to •...
  • Page 15 ve you ever faUen asleep in ont of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.
  • Page 16 V V the TV automatically shows you the current time and channel Remember, "lj_Tith the Reminder control ON every thirty minutes. if Closed Captioning is ON, _> Press the MENU (M) button neither the Channel on the remote, then press the Reminder or the MENU •...
  • Page 17 OpUld you like to hear TV rograms through your audio hi-fi system? The TV's Audio Output jacks and TV Speaker BACK OF TV On/Off control work together to offer you this TV sound option. <_ Connect the R(ight) and L(eft) I AUDIO OUT jacks on the TV to [ the R and L Audio Input jacks on RCA PHONE)PLUG...
  • Page 18 YVCRu can view the playback of tapes (Video Disc Players, camcorders, etc). by using the AUDIO and VIDEO "_ INPUT jacks (on the rear of the Io AVO_O _tt_ PICTURE AND SOUND FROM 1. oo NOT¢_CI SUW_O_,IO PLAYBACK OF VCR TAPE TV).
  • Page 19 he S(uper)-Video connection n the rear of the TV is used for the playback of S-VHS VCR CAU'BON: tapes, Video Discs, or Compact PICTURE AND SOUND FROM Disc Interactive (cd-i) discs. PLAYBACK OF S-VHS VCR TAPE Better picture detail and clarity BACK OF "IV is possible with the S-Video playback as compared to the...
  • Page 20 _._ave you ever played hide and L 1 seek with your remote control? Are you tired of tearing i'he house apart trying to find if someone has stuffed the remote i_nder the couch, put it on the shelves, or hid it in the desk? Well, your TV remote can save you all that looking by automatically signaling its location to you.
  • Page 21 For most homes this step would not be needed but for your information: Up to 9 different remote locator address codes can be set on which the TV can send out its "homing" signal This is done in case there is more than one IV (with a remote locator) present, and you want only one specific remote to be signaled when the...
  • Page 22 I_Thether you're watching a movie V V or a video game your TV has ,automatic video control settings matched for your current program source or content. The Smart Picture .feature quickly resets your TV's video controls for a number of different types of programs and viewing conditions you may have in your home.
  • Page 23 re you tired of the sound of commercials following you into the next room or all through the house? Smart Sound allows you to preset a desired volume level that the TV sound will not go above. This makes for an even, more consistent sound by reducing the peaks and valleys that can occur during program changes or...
  • Page 24 Sanyo Goldstar Sears Go Video 45, 46 Sharp 1I, 12 Hitachi 03, 51 Shintom 14, 47, 48 Sony 09, 10,41 Teknika Magnavox 00, 05 Matsushita 01,02 Toshiba 18, 19 Mitsubishi 16, 17, 38, 39, 50 Video Concepts Multitech 27,28 Zenith...
  • Page 25 w that you have looked up e two-digit Remote Code Number for your brand of VCR (on previous page), you are ready to follow the four simple steps below. Please read through steps 1-4 before beginning. Press and release the REC (RECORD) button.
  • Page 26 Sylvania Jerrold 00,01,02,03,04,05,46,55 Texscan Macom 29, 38 Tocom 12,13, 53 Toshiba Magnavox 17, 31 Remember, if more than Uniden Satellite one number is listed, you 06, 27, 39 Unika may have to try more than the first Panasonie 18, 35...
  • Page 27 _t_w that you have looked up he two-digit Remote Code Number for your brand of Cable Converter (on previous page), you are ready to foUow the four simple steps below. Please read through steps 1-4 before beginning. K • PI,AT w STATUS CableConvener Press and release the REC...
  • Page 28 our TV remote can be set to ork your VCR or Cable Converter by what is called CABLE CONVERTER SEARCH method. lf the "REMOTE CODE" number method shown in the previous section did not set your remote to work your VCR or Converter, then follow the easy steps listed below.
  • Page 29 hwen using the 73/remote ith a VCR, first make certain it is set to control your VCR ( by the REMOTE CODE or SEARCH method - see earlier section). Press the VCR System button on the remote. p.lay Button Press to playback a tape. Hold down _--._ Point the top of the remote after pressing the RECORD button to...
  • Page 30 Dicture in Picture (PIP) is the 1showing of two pictures on the TV screen at the same time. (One main screen picture and one small inset picture - or PIP). MAIN SCREEN NOTE: The PIP picture must be BACK OF T'V supplied by a VCR (or other accessory equipped with a VIDEO OUTPUT jack).
  • Page 31 _Tow that you have completed 1 ¥ the required connections on the previous page you are ready to follow the simple steps shown below. Turn the VCR TV ON. Place the VCR in the TV mode - Use the TV/VCR button on 12:00""...
  • Page 32 using the PIP buttons on the .LJ remote the PIP picture can be moved and swapped with the/nain Remember, if screen. The main screen picture the TV is showing a can also be frozen in the PIP "VCR/AUX" window. supplied picture on the main screen _ Press the PIP ON button to (when the TV and...
  • Page 33 he picture for the PIP window an come through the TV' s ANTENNA or VCR/AUX Inputs (on the rear of the TV.) The PIP INPUT control simply tells the TV which one of these two sources it is to show in the PIP window <_ Press the MENU (M) button on the remote, then press the...
  • Page 34 ---] hookup with Cable Conver_ nd VCR. Remember, to use the Cable TV (_,, _ First use an optional signal CAUTION: Converter Box to splitter and connect the original TO AVOI _) DAMAGE: t. IX) NOT CONNECT SURROUND select channels for SOUN0 SPEAKERS TO A SEPERATE REAR OF...
  • Page 35 [ CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or lease make these simple ..checks before calling for I TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source service.
  • Page 36 * The procedure of adding or deleting channel Programming Coaxial Cable * A single solid antenna wire normally matched with a numbers into the Television's memory circuits. In this way the metal plug (F-type) end connector that screws (or pushes) directly onto Television "remembers"...
  • Page 37 Philips Consumer Electronics Company Factory Service Center Locations See Reverse Side for More Details. Detroit/Toledo, Rockford • Cleveland/N Ohio Chicago Francisco/Metro Area • Columbus/Dayton/Cincinnati • BostonlS Maine/ island Chadotte Diego New Jersey • Phoenix/Metro Area " _'_ "Philade. IphiafS New Jersey Atlanta/N Georgia !ngtordBaltimore/Richmond...
  • Page 38 QUALm' S ERVICE ISAS CLOSE AS YOURTELEPHONE! SIMPLYLOOK OVER THEUST BELOW FORTHENUMBER OFA FACTORY S ERVICE CENTER NEAR YOU. YOUR PRODUCT W ILL.RECEIVE E FFICIENT A NDEXPEDIENT CARRY-IN,MAIL-IN,OR IN-HOME SERVICE, ANDYOUWILLRECEIVE P EACE OF MIND, KNOWING YOURPRODUCT I S BEING GIVEN THEEXPERT ATTENTION O FPHlUPS' FACTORY SERVICE. A ND, IF THEPHONE NUMBER USTEOFORYOURAREA 1-800-242-9225 FACTORY SEmnCE.

  • Page 39: Color Television

    COLOR TELEVISION 90 Days Free Labor One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube) This product can be repaired in-home. MAKE SURE YOU KEEP... WHO IS COVERED? Please keep your sales receipt or other document showing proof of You must have proof of purchase to receive warranty service.

  • Page 40: Optional Accessories

    Protectyourantenna, cable, TV orstereo.Simplyattach YourCost$24.95 andelectrical lines with ordered direct f rom Phi/ips antenna to yourTV/stereo and Replace y ourlostor broken Magnavox AudicNideo enjoycrisperandclearer sound remote control, o r consolidate Equipment SurgeProtectors. Consumer E lectronics and picturequality.Adjustable allyourremotes intoone.Plus, UHFloop tilts androtatesfor make remote easier t o usein the bestpossiblereception.
