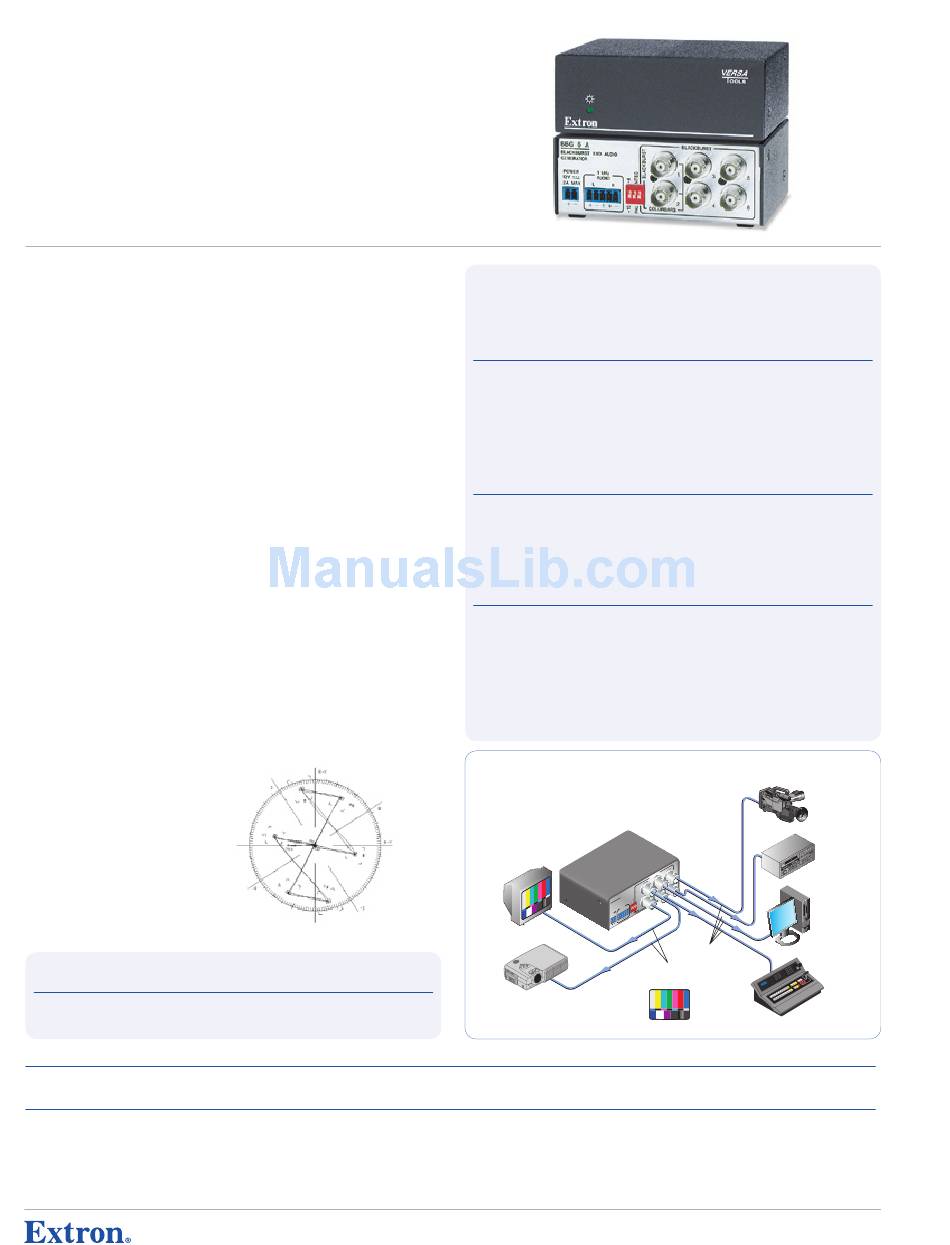

Extron electronics BBG 6 A Specification Sheet

BBG 6 A
Blackburst, Color Bars, and Audio Generator
FeaTures
Broadcast quality blackburst reference signals — Six outputs on female BNC
•
connectors for creating blackburst reference signals to feed into genlockable devices.
Broadcast quality SMPTE color bars for NTSC and full-field 8-color bars for PAL
•
— Two of the blackburst outputs also provide standard SMPTE color bars for NTSC and
full-field 8-bars for PAL, selectable via DIP switch for easy troubleshooting and alignment.
Integrated 1 kHz audio tone generator — Built-in audio generator offers 1 kHz,
•
balanced or unbalanced output on captive screw connectors for simplified audio
troubleshooting. The output level is switchable from +4 dBu to -10 dBV via DIP switch.
Selectable +4 dBu or -10 dBV audio output
•
NTSC/PAL switchable
•
Power indicator LED for easy troubleshooting
•
1U, quarter rack width metal enclosure
•
Rack, under-desk, and projector-mountable
•
External universal power supply included, part # 70-055-01 — Provides worldwide
•
power compatibility
descrIPTIon

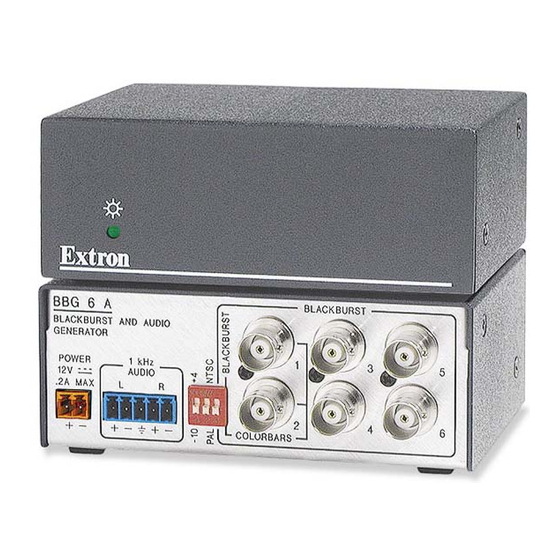

The Extron BBG 6 A Blackburst, Color Bars, and Audio Generator offers six broadcast
quality, NTSC or PAL blackburst output signals, allowing a variety of video equipment to be
genlocked to a common reference signal. The blackburst signal consists of three reference
signal components: vertical sync, horizontal sync, and color burst. The first two outputs can
also provide broadcast quality NTSC SMPTE Color Bars or PAL full-field Color Bars test patterns,
selectable via a DIP switch. Additionally, the BBG 6 A includes a 1 kHz audio generator with
balanced or unbalanced audio on captive screw connectors. Part of the VersaTools
products, the BBG 6 A is housed in a 1U, quarter rack width metal enclosure, making it ideal
for installation in equipment racks as well as small spaces or portable field use.
The Vector scope measurement plots the
broadcast quality Color Bars output of
the BBG 6 A
APL = 40.8%
System Line L 22 F1 Angle (deg) 0.0
Gain x 1.000
0.000 dB
525 Line NTSC
Setup 7.5%

sPecIFIcaTIons

bLackbursT ouTPuT
Number / Signal type . . . . . . . . . . . 6 blackburst (two can be switched to color bars)
Connectors . . . . . . . . . . . . . . . . . . . . . . . 6 BNC female
Standards . . . . . . . . . . . . . . . . . . . . . . . . . RS-170A standard for NTSC 3.58, CCIR 624-4 standard for PAL
ModeL
BBG 6 A
oPTIonaL accessorIes
RSU 129
RSF 123
RSB 129
RSB 123
MBU 123
684
®
VersIon descrIPTIon
Blackburst, Color Bars & Audio
ModeL descrIPTIon
1U 9.5" Deep Universal Rack Shelf Kit
1U 3.5" Deep VersaTools Rack Shelf Kit
®
1U 9.5" Deep Basic Rack Shelf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1U 3.5" Deep Basic Rack Shelf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VersaTools Mini Under-Desk Mount Kit
®
usa west usa west
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
t e S t G e n e r a t o r S & M e a S u r e M e n t p r o d u c t S
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Sync level . . . . . . . . . . . . . . . . . . . . . . . . . 40 IRE for NTSC, 43 IRE for PAL
Color burst level . . . . . . . . . . . . . . . . . 40 IRE for NTSC, 43 IRE for PAL
Setup level. . . . . . . . . . . . . . . . . . . . . . . . 7.5 IRE (NTSC) or 0 IRE (PAL)
Tolerance for all levels . . . . . . . . . ±3%
Sub carrier level . . . . . . . . . . . . . . . . . NTSC: 3.579545 ±3 Hz, PAL: 4.433618 ±3 Hz
coLor bars ouTPuT
Number / Signal type . . . . . . . . . . . 2 color bars, switchable, standard SMPTE bars for NTSC, full field 8-bar for PAL
Connectors . . . . . . . . . . . . . . . . . . . . . . . 2 BNC female
Standards . . . . . . . . . . . . . . . . . . . . . . . . . NTSC 3.58, PAL
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Sync level . . . . . . . . . . . . . . . . . . . . . . . . . 40 IRE for NTSC, 43 IRE for PAL
Color burst level . . . . . . . . . . . . . . . . . 40 IRE for NTSC, 43 IRE for PAL
Setup level. . . . . . . . . . . . . . . . . . . . . . . . NTSC, 7.5 IRE; PAL, 0 IRE
White level . . . . . . . . . . . . . . . . . . . . . . . . 100 IRE
Tolerance for all levels . . . . . . . . . ±3%
Subcarrier levels . . . . . . . . . . . . . . . . NTSC 3.579545 ±3 Hz, PAL 4.433618 ±3 Hz
audIo ouTPuT
Number / Signal type . . . . . . . . . . . 1 set (L and R) of stereo sine waves, balanced or unbalanced
Connectors . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm captive screw connector, 5 pole
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 50 ohms unbalanced, 100 ohms balanced
Signal level . . . . . . . . . . . . . . . . . . . . . . . Selectable: professional level, +4 dBu (1.23 V) balanced; or
THD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1%
Tolerance for all levels . . . . . . . . . ±3%
Signal frequency . . . . . . . . . . . . . . . . 1 kHz
GeneraL
External power supply . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 2.5 watts, external, to 12 VDC, 1 A, regulated
Power input requirements . . . . . 12 VDC, 0.2 A (max.)
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional rack shelves (See optional accessories)
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide
line of
Product / Shipping weight . . . . . 0.4 lbs (0.2 kg) / 3 lbs (2 kg)
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
Note: All nominal levels are at ±10%. Specifications are subject to change without notice.
Monitor
Projector
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
usa east usa east
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
consumer level, -10 dBV (316 mV) unbalanced
power supply
4.3 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors)
Extron
BBG 6 A
Blackburst,
Color Bars, and
Audio Generator
Camera
T
R S
B U
C K
5
B LA
3
6
1
D IO 4
A U
6 A
N D
G T A
B B R S
B U 2
C K T O R
R A
B LA
N E O N A R S
G E H Z R B
1 K
D IO R LO
R A U 3 C O
W E 2
P O 1
L
V M A X
12
.2 A
Blackburst
Signal
Color Bars
Signal
ParT #
60-535-01
PaGe ParT #
page 819 60-190-01
page 819 60-190-20
page 820 60-604-01
page 818 60-604-20
page 815 70-212-01
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
VTR
Character
Generator
Mixer
