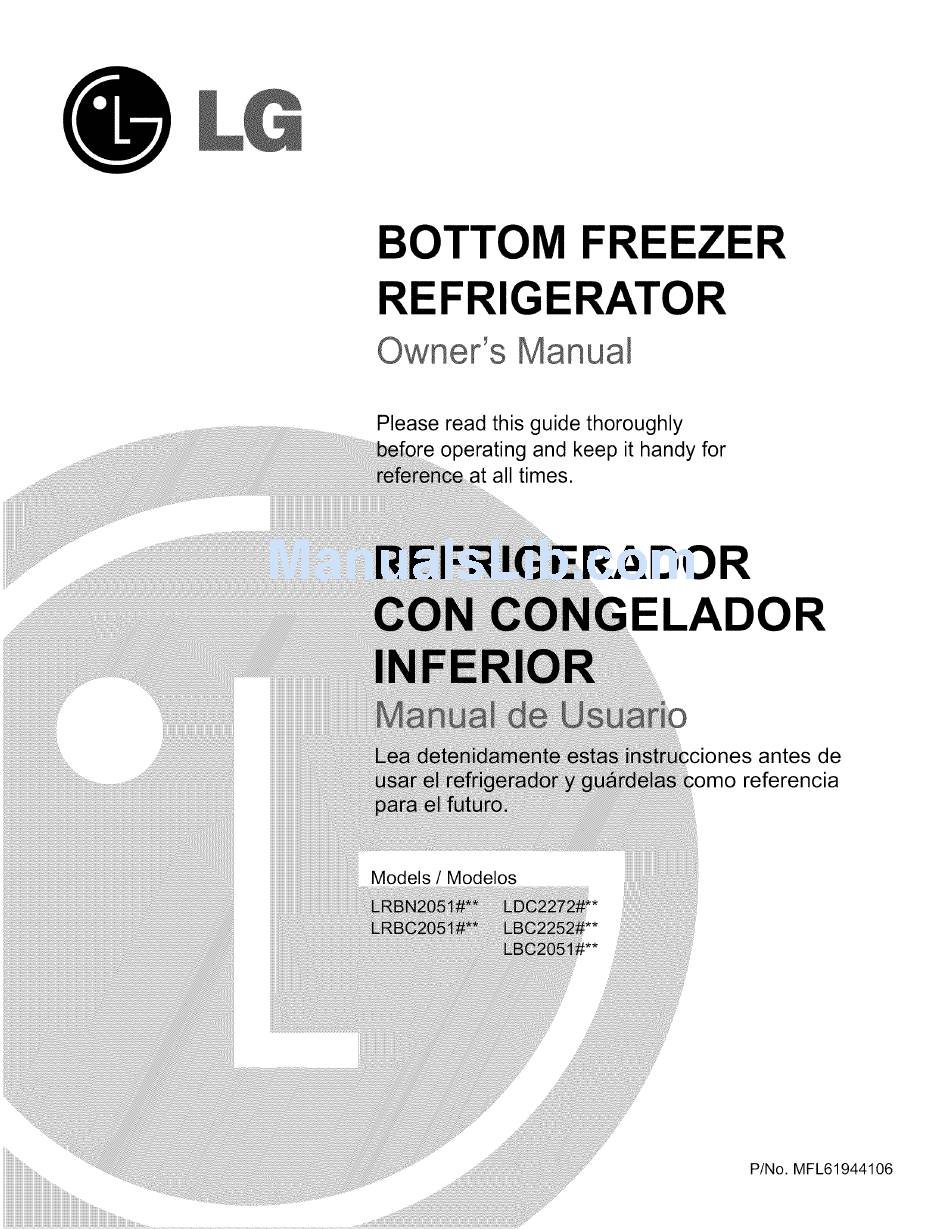

Page 1 BOTTOM FREEZER REFRIGERATOR Owner's Please read this guide thoroughly operating and keep it handy for all times. ELADOR ;ciones antes de ;omo referencia Models / Modelos ..P/No. MFL61944106 iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_,, ..iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_,,,,, ..i i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii%_ ..
Page 2: Table Of Contents
Door Racks English Version Spanish Version Design-A-Door Dairy Bin Warranty (U.S.A.) Ice Bin Safety Instructions DuraBase Grounding Requirements DuraBase Divider Parts and Features Guide-Out Drawer Basket 10-17 Refrigerator Installation Tilting Door Wire Durabase Unpacking Your Refrigerator Installation Frezzer Shelf Base Grille 26 -27 Care and Cleaning Removing, Reversing and Replacing...
Page 3: Warranty (U.s.a.)
LIMITED WARRANTY United States of America LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use during the warranty period listed below from the date of original purchase.
Page 4 Estados Unidos de America LG Electronics reparara o en su defecto reemplazara sin cargo, el producto defectuoso en material o mano de obra bajo uso normal durante el periodo de garantia que se menciona a continuacion desde la fecha original de compra.
Page 5: Safety Instructions
This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION.
Page 6: Grounding Requirements
If the power cord is damaged, it must be replaced Use a receptacle which cannot be turned off with a switch by the manufacturer, by our service center or by or pull chain. Do not use an extension cord. qualified personal by LG Electronics, to avoid some risk.
Page 7: Parts And Features
Use this section to become more familiar with the parts and features. NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. Digital Sensor Control O Dairy Bin Refrigerator Light...
Page 8 Use this section to become more familiar with the parts and features. NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. Digital Sensor Control Dairy Bin Refrigerator Light...
Page 9: Parts And Features
Use this section to become more familiar with the parts and features. NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. Digital Sensor Control Dairy Bin Design-A-Door...
Page 10: Refrigerator Installation
3. Install this appliance in an area where the temperature is between 55°F (13°C) and 110°F (43°C.) If the temperature around the appliance is too low or high, Excessive Weight Hazard cooling ability may be adversely affected. Use two or more people to move and install [] CAUTION: Avoid placing the unit near heat sources, refrigerator.
Page 11: Your Refrigerator Doors
HOW TO REMOVE DOOR HANDLES NEED TOOLS 1/4 in _==_ 3/32 in 3/8 in 10 mm 1/4 in Flat head screwdriver Allen wrench Hex head socket wrench Phillips screwdriver IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any adjustable door or utility bins from doors.
Page 12 3. Replacing Refrigerator Handle • Turn handle upside down (5) • Place the handle (2) on the door by adjusting handle footprints to fit mounting fastners and tighten the set screws (1) with the 3/32" Allen wrench. 4. Installing Refrigerator Door •...
Page 13 HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER • With both hands, hold both sides of the door and pull it IMPORTANT: To avoid possible injury, product or property up to separate it from the rails. damage, you will need two people to perform the following instructions.
Page 14 HOW TO REMOVE AND INSTALL THE • Make sure you have a right rail cover for each side. PULL OUT DRAWER Right IMPORTANT: To avoid possible injur or product or property Rail cover damage, you will need two people to perform the following instructions.
Page 15: Removing, Reversing And Replacing
REMOVING, REVERSING AND REPLACING REFRIGERATOR DOORS (OPTIONAL) NOTE: See the Parts and Features section to match your model. TOOLS NEEDED: 10mm hex-head socket wrench, No. 2 Phillips screwdrive r, fiat-head screwdrive r, 10mm open-end wrench, fiat 2-inch putty knife. IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it.
Page 16 • Use an adjustable wrench to remove the handle mounting screws (3). • Carefully pry off the plug buttons (4). • Install the plug buttons (4) on left side. • Install the handle mounting screw (3) on the right side •...
Page 17: Door Closing And Alignment
NOTE: Having someone push against the top of the AFTER COMPLETING THE JOB refrigerator takes some weight off the leveling screws. Make sure that the four corners of the door gasket are This makes it easier to adjust the screws. fnldp.d nvp.r To ensure a good seal, apply a small nr_f amount of silicon grease on the gasket.
Page 18: Using Your Refrigerator
ENSURING PROPER AIR CIRCULATION SETTING THE CONTROLS In order to ensure proper temperatures, air must flow Your refrigerator has two controls that let you regulate between the refrigerator and freezer sections. As shown the temperature in the freezer and refrigerator in the illustration below, cool air enters through the bottom compartments.
Page 19: Adjusting Control Settings
I_ Identifier your control type RECOMMENDED CONDITION/REASON: ADJUSTMENT: • Refrigerator control: position 1 to 7 REFRIGERATOR section Turn (32°F to 47°F or 0°C to 8°C) too warm REFRIGERATOR The higher the number setting, the colder the refrigerator control to next •...
Page 20: Food Storage Guide
FOOD STORAGE GUIDE Packaging Successful freezing depends on correct packaging. When Storing Fresh Food you close and seal the package, it must not allow air or Wrap or store food in the refrigerator in airtight and moisture in or out. If you do, you could have food odor moisture-proof material unless otherwise noted.
Page 21: Refrigerator Shelves
REFRIGERATOR SHELVES Sliding Out Shelves (optional on some models) You can slide some glass shelves in and out of your The shelves in your refrigerator are adjustable to meet refrigerator as follows. your individual storage needs. These units are all glass shelves.
Page 22: Chef Fresh / Snack Pan
CHEF FRESH / SNACK PAN CRISPER HUMIDITY CONTROL (on some models) While holding the chef fresh with one hand, pull it forward You can control the amount of humidity in the moisture- slightly. Lift slightly and pull it out. sealed crispers. Adjust the control to any setting between @and C__.
Page 23: Crisper Cover With Lattice On Inner Surface
CRISPER COVER WITH LATTICE ON INNER DOOR RACKS SURFACE (on some models) The door racks may be removed for easier cleaning. Snap-on Door Racks To remove the crisper cover: To remove the racks: 1. Remove both crisper drawers. 1. Remove all items in the door racks. 2.
Page 24: Dairy Bin
DAIRY BIN DURABASE (on some models) 1. To remove the Durabase, push it back to the end as 1. To remove the dairy bin, simply lift it and pull straight out. much as possible. Tilt up the front of the Durabase and pull straight out.
Page 25: Guide-Out Drawer Basket
GLIDE- OUT DRAWER BASKET WIRE DURABASE (on some models) (on some models) 1. To remove wire Durabase, pull wire durabase out to full extension. 1. To remove, lift basket up and pull out straight out. Tilt up the front of the wire Durabase and pull it straight out.
Page 26: Care And Cleaning
PLASTIC PARTS (covers and panels) Do not use paper towels, window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material. CONDENSER COILS Remove grille base. Use a vacuum cleaner with an extended attachment to clean condenser coils. Explosion Hazard Use non-flammable...
Page 27: Power Interruptions
c) If neither a food locker nor dry ice is available, consume or can perishable food at once. WHEN YOU GO ON VACATION 4. Turn the bulb counter clockwise. If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator 5.
Page 28: About The Custom Cube Icemaker
NOTE: Automatic Ice Maker feature is included only in NOTE: If the cube size is smaller or larger than you certain models. Please check your product specification. expected, you can regulate the size with the cube size button. Every time you press the cube size button, the indicator Personal Injury Hazard moves up one light.
Page 29: Connecting The Water Line
NOTE: Water line installation is needed when the Two 1/4" outer diameter Automatic Ice Maker and/or Water Dispenser features compression nuts and are available on your product. 2 ferrules (sleeves) to connect the copper tubing to BEFORE YOU BEGIN the shutoff valve and the This water line installation is not warranted by the refrigerator water valve.
Page 30 INSTALLATION INSTRUCTIONS 7. CONNECT THE TUBING TO THE VALVE (CONTINUED) Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and FASTEN THE SHUTOFF VALVE connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve.
Page 31 CONNECT THE TUBING TO THE 11. PLUG IN THE REFRIGERATOR REFRIGERATOR Arrange the coil of tubing so NOTES: that it does not vibrate against the back of the refrigerator or • Before making the connection to the refrigerator, be against the wall. Push the sure the refrigerator power cord is not plugged into refrigerator back to the wall.
Page 32: Troubleshooting Guide
UNDERSTANDING SOUNDS YOU MAY HEAR • The defrost timer will click when the automatic defrost cycle begins and ends. The thermostat control (or Your new refrigerator may make sounds that your old one refrigerator control, depending on the model) will also didn't make.
Page 33 COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH Check if... Then... The refrigerator that was replaced was an Modern refrigerators with more storage space require older model. more operating time. The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal room temperatures, expect your motor to run about 40% to 80% of the time.
Page 34 OFF-TASTE OR ODOR Check if... Then... The icemaker was recently installed. Discard first few batches of ice to avoid discolored or off-flavored ice. The ice has been stored for too long. Throw away old ice and make new supply. The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food either compartment, is not wrapped properly.
Page 35 AUTOMATIC ICEMAKER DOES NOT WORK Check if... Then... Icemaker power switch in the O (off) position. Move the switch to the I (on) position. Water supply turned off or not connected. See the Connecting the Water Line section. Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.
