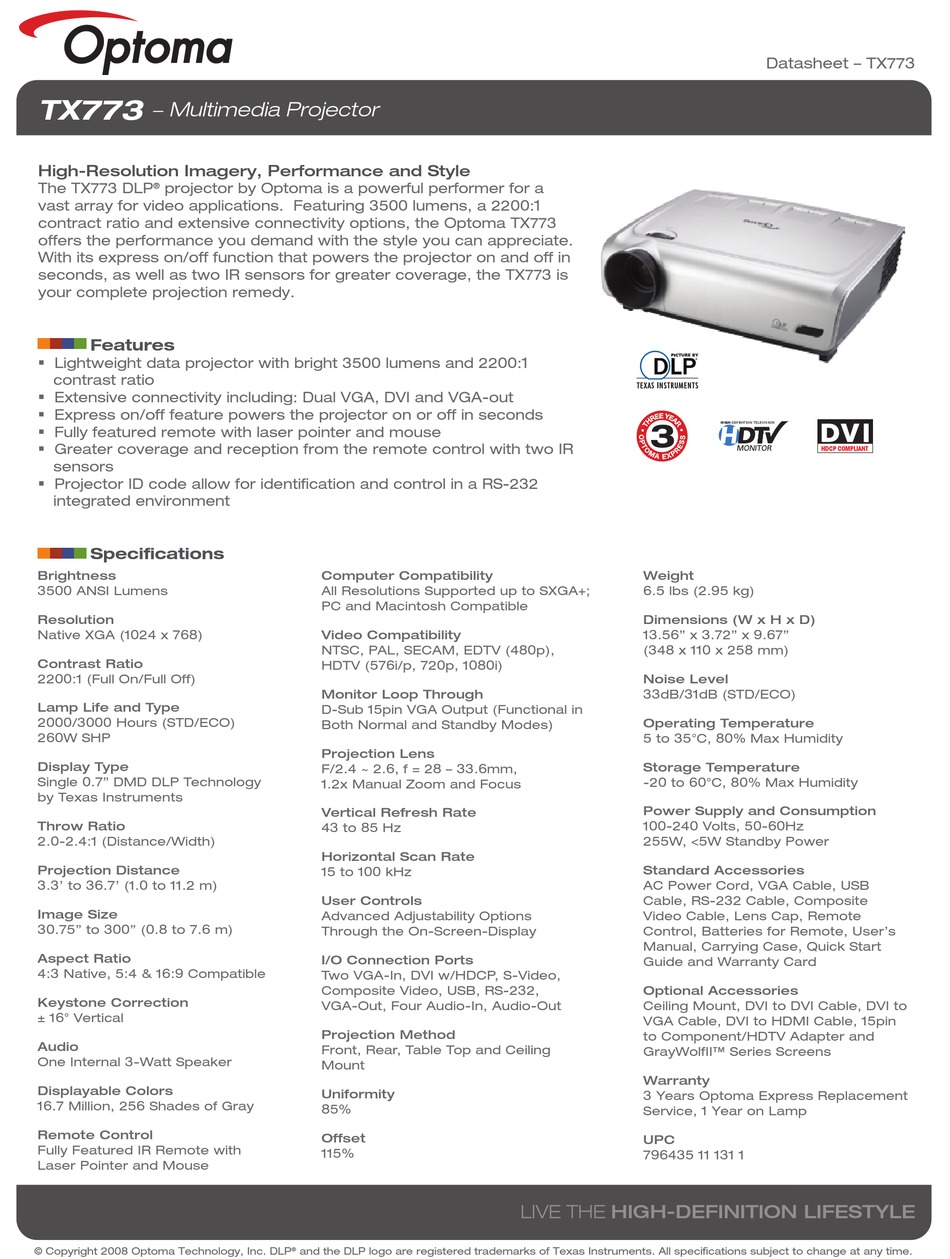

Optoma TX773 Datasheet

TX773
− Multimedia Projector
High-Resolution Imagery, Performance and Style
The TX773 DLP projector by Optoma is a powerful performer for a
®
vast array for video applications. Featuring 3500 lumens, a 2200:1
contract ratio and extensive connectivity options, the Optoma TX773
offers the performance you demand with the style you can appreciate.
With its express on/off function that powers the projector on and off in
seconds, as well as two IR sensors for greater coverage, the TX773 is
your complete projection remedy.
Features
 Lightweight data projector with bright 3500 lumens and 2200:1
contrast ratio
 Extensive connectivity including: Dual VGA, DVI and VGA-out
 Express on/off feature powers the projector on or off in seconds
 Fully featured remote with laser pointer and mouse
 Greater coverage and reception from the remote control with two IR
sensors
 Projector ID code allow for identification and control in a RS-232
integrated environment

Specifications

Brightness
3500 ANSI Lumens
Resolution
Native XGA (1024 x 768)
Contrast Ratio
2200:1 (Full On/Full Off)
Lamp Life and Type
2000/3000 Hours (STD/ECO)
260W SHP
Display Type
Single 0.7" DMD DLP Technology
by Texas Instruments
Throw Ratio
2.0-2.4:1 (Distance/Width)
Projection Distance
3.3' to 36.7' (1.0 to 11.2 m)
Image Size
30.75" to 300" (0.8 to 7.6 m)
Aspect Ratio
4:3 Native, 5:4 & 16:9 Compatible
Keystone Correction
± 16° Vertical
Audio
One Internal 3-Watt Speaker
Displayable Colors
16.7 Million, 256 Shades of Gray
Remote Control
Fully Featured IR Remote with
Laser Pointer and Mouse
© Copyright 2008 Optoma Technology, Inc. DLP
Computer Compatibility
All Resolutions Supported up to SXGA+;
PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, EDTV (480p),
HDTV (576i/p, 720p, 1080i)
Monitor Loop Through
D-Sub 15pin VGA Output (Functional in
Both Normal and Standby Modes)
Projection Lens
F/2.4 ~ 2.6, f = 28 – 33.6mm,
1.2x Manual Zoom and Focus
Vertical Refresh Rate
43 to 85 Hz
Horizontal Scan Rate
15 to 100 kHz
User Controls
Advanced Adjustability Options
Through the On-Screen-Display
I/O Connection Ports
Two VGA-In, DVI w/HDCP, S-Video,
Composite Video, USB, RS-232,
VGA-Out, Four Audio-In, Audio-Out
Projection Method
Front, Rear, Table Top and Ceiling
Mount
Uniformity
85%
Offset
115%
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Weight
6.5 lbs (2.95 kg)
Dimensions (W x H x D)
13.56" x 3.72" x 9.67"
(348 x 110 x 258 mm)
Noise Level
33dB/31dB (STD/ECO)
Operating Temperature
5 to 35°C, 80% Max Humidity
Storage Temperature
-20 to 60°C, 80% Max Humidity
Power Supply and Consumption
100-240 Volts, 50-60Hz
255W, <5W Standby Power
Standard Accessories
AC Power Cord, VGA Cable, USB
Cable, RS-232 Cable, Composite
Video Cable, Lens Cap, Remote
Control, Batteries for Remote, User's
Manual, Carrying Case, Quick Start
Guide and Warranty Card
Optional Accessories
Ceiling Mount, DVI to DVI Cable, DVI to
VGA Cable, DVI to HDMI Cable, 15pin
to Component/HDTV Adapter and
GrayWolfII™ Series Screens
Warranty
3 Years Optoma Express Replacement
Service, 1 Year on Lamp
UPC
796435 11 131 1
LIVE THE HIGH-DEFINITION LIFESTYLE
Datasheet – TX773
