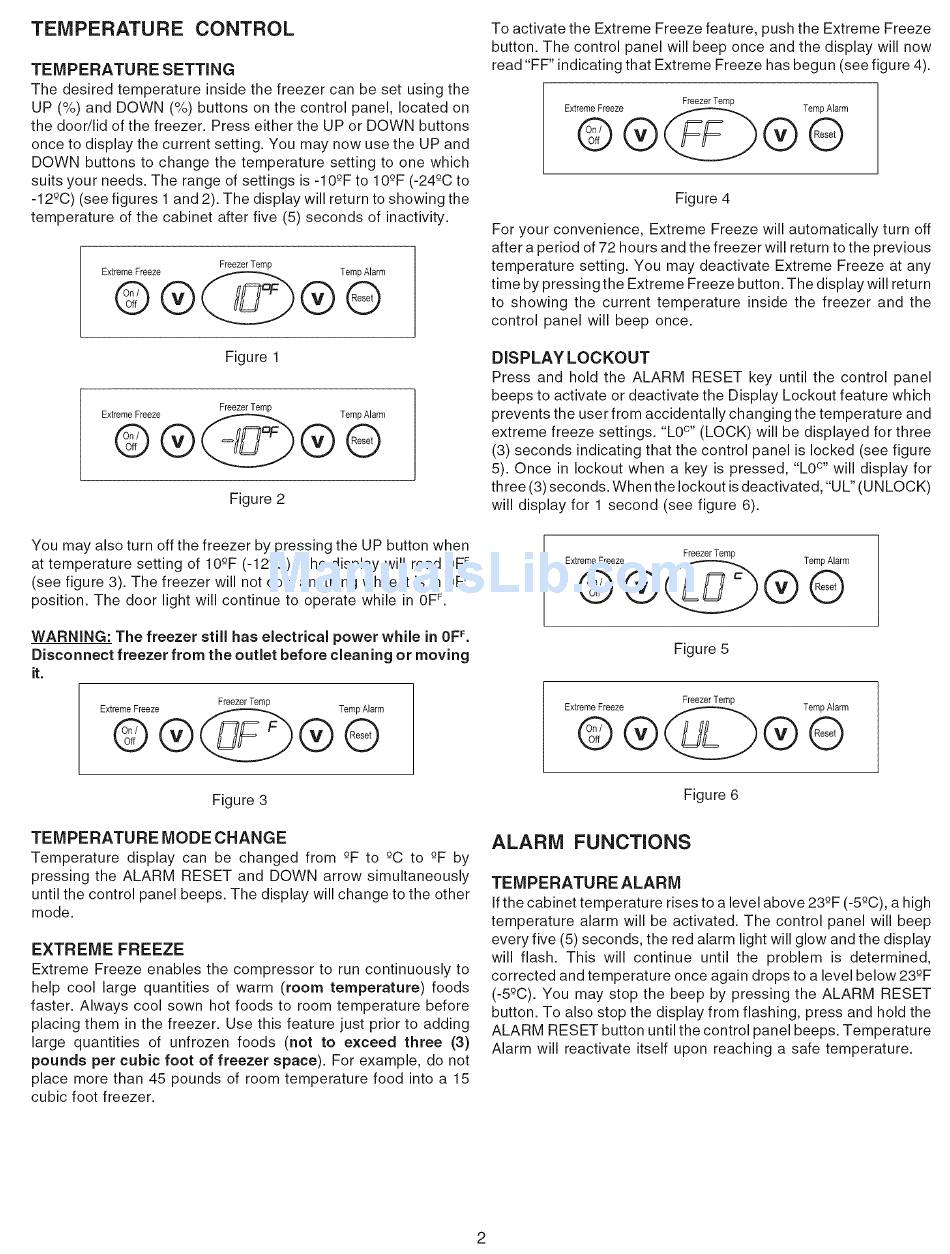

TEMPERATURE CONTROL
TEMPERATURE SETTING
The desired temperature inside the freezer can be set using the
UP (%) and DOWN (%) buttons on the control panel, located on
the door/lid of the freezer. Press either the UP or DOWN buttons
once to display the current setting. You may now use the UP and
DOWN buttons to change the temperature setting to one which
suits your needs. The range of settings is -10-°F to 1O-°F(-24-oCto
-12-oC) (see figures 1 and 2). The display will return to showing the
temperature of the cabinet after five (5) seconds of inactivity.
Freezer Temp
ExtremeFreeze
©®
Temp Alarm
®@
Figure 1
Freezer Temp
ExtremeFreeze
©®
Temp Alarm
®@
Figure 2
You may also turn off the freezer by pressing the UP button when
at temperature setting of lO-oF (-12-oC). The display will read OFF
(see figure 3). The freezer will not cool anything while it is in OFF
position. The door light will continue to operate while in OFF.
WARNING: The freezer still has electrical power while in OFF.
Disconnect freezer from the outlet before cleaning or moving
it.
Freezer Temp
Extreme Freeze
©®
Temp Alarm
®@
To activate the Extreme Freeze feature, push the Extreme Freeze
button. The control panel will beep once and the display will now
read "FF" indicating that Extreme Freeze has begun (see figure 4).
Freezer Temp
ExtremeFreeze
©@
Temp Alarm
®®
Figure 4
For your convenience, Extreme Freeze will automatically turn off
after a period of 72 hours and the freezer will return to the previous
temperature setting. You may deactivate Extreme Freeze at any
time by pressing the Extreme Freeze button. The display will return
to showing the current temperature inside the freezer and the
control panel will beep once.
DISPLAY LOCKOUT
Press and hold the ALARM RESET key until the control panel
beeps to activate or deactivate the Display Lockout feature which
prevents the user from accidentally changing the temperature and
extreme freeze settings. "L0 c'' (LOCK) will be displayed for three
(3) seconds indicating that the control panel is locked (see figure
5). Once in lockout when a key is pressed, "L0 c'' will display for
three (3) seconds. When the lockout is deactivated, "U L" (UNLOCK)
will display for 1 second (see figure 6).
Freezer Temp
Extreme Freeze
©®
Temp Alarm
®@
Figure 5
Freezer Temp
ExtremeFreeze
©®
Temp Alarm
®@
Figure 3
TEMPERATURE MODE CHANGE
Temperature display can be changed from -°F to -oC to -oF by
pressing the ALARM RESET and DOWN arrow simultaneously
until the control panel beeps. The display will change to the other
mode.
EXTREME FREEZE
Extreme Freeze enables the compressor to run continuously to
help cool large quantities of warm (room temperature) foods
faster. Always cool sown hot foods to room temperature before
placing them in the freezer. Use this feature just prior to adding
large quantities of unfrozen foods (not to exceed three (3)
pounds per cubic foot of freezer space). For example, do not
place more than 45 pounds of room temperature food into a 15
cubic foot freezer.
Figure 6
ALARM FUNCTIONS
TEMPERATURE ALARM
If the cabinet temperature rises to a level above 23-oF(-5-oC),a high
temperature alarm will be activated. The control panel will beep
every five (5) seconds, the red alarm light will glow and the display
will flash. This will continue until the problem is determined,
corrected and temperature once again drops to a level below 23-oF
(-5-oC). You may stop the beep by pressing the ALARM RESET
button. To also stop the display from flashing, press and hold the
ALARM RESET button until the control panel beeps. Temperature
Alarm will reactivate itself upon reaching a safe temperature.
