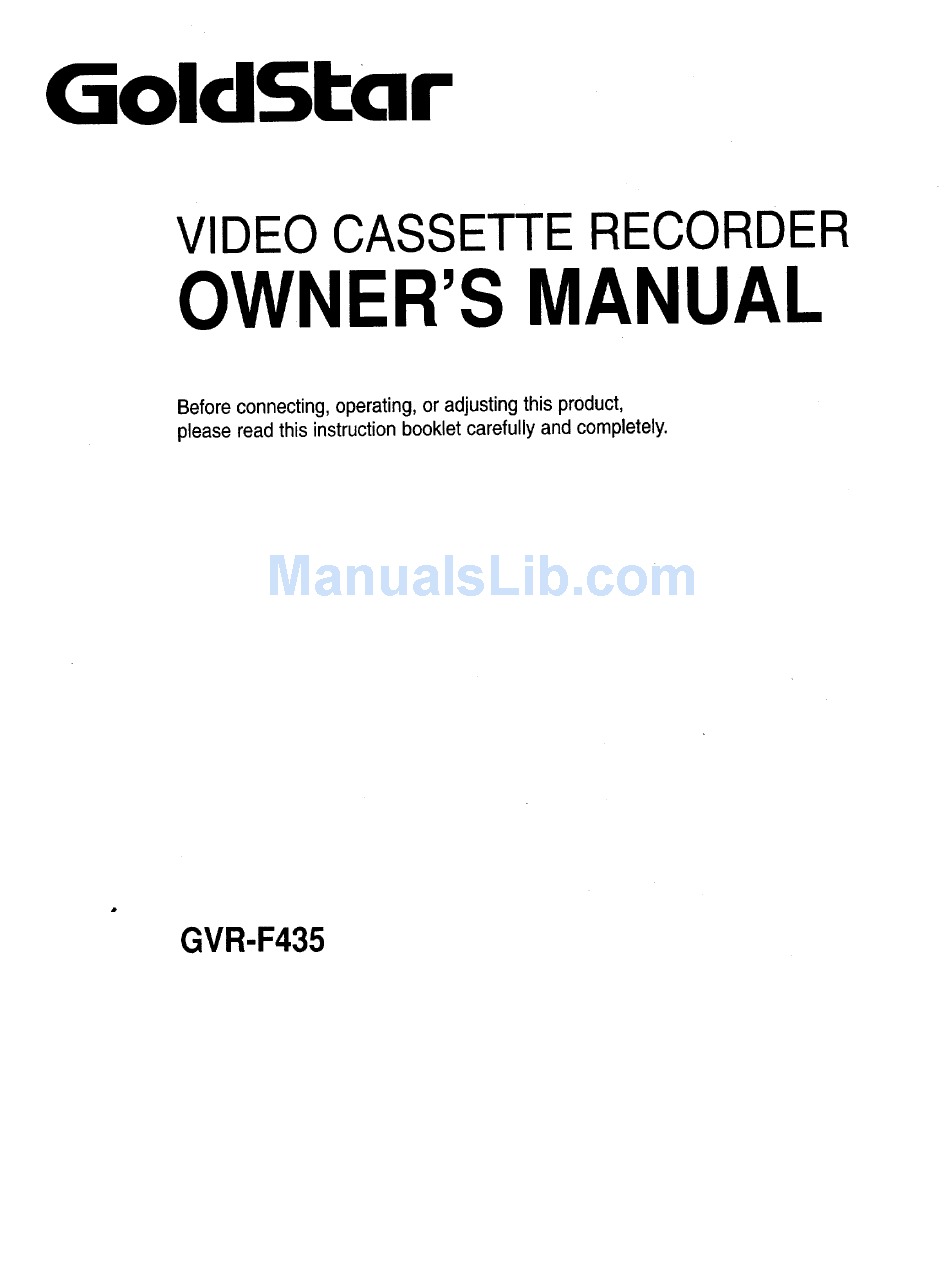

- Page 1 GoldStar VIDEO CASSETTE RECORDER OWNER'S MANUAL Before connecting, operating, or adjusting this product, please read this instruction booklet carefully and completely. GVR-F435...
- Page 2 WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION • TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS PLUG BE FULLY...
-
Page 3: Table Of Contents
CONTENTS FEATURES Features/Accessories ....................3 • Double Azimuth 4 Head System ImportantSafeguards .................... 4 • Quick Response Mechanism Installation/Wiring Diagram ..................6 VCR to TV Connection ..................6 • 181 Channel Frequency Synthesized Cable Compatible Antennato VCR Connections................7 Tuner with Autochannel CableAntenna (CAW) Connections .............. -
Page 4: Importantsafeguards
IMPORTANT SAFEGUARDS Read Instructions -- All the safety and operating Ventilation -- Slotsand openings in the cabinet are pro- instructions shouldbe read before the product is operat- vided for ventilation and to ensure reliableoperationof the productand to protectit from overheating. A ndthese openingsmustnot be blockedor covered. - Page 5 Object and Liquid Entry p Never push objects of any 14. Protective Attachment Plug This product is kind through openings into this productas they may equipped with an attachment plug featuring overload touch dangerousvoltagepoints or short-outparts that protection. This is a safety feature. See Instruction couldresultin a fire or electricshock.Never spill liquid Manual for replacement or resetting of protective device.
-
Page 6: Installation/Wiring Diagram
INSTALLATION Placing your VCR on the top of or under the IV receiver may result in interfer- ence appearing on the IV screen when the VCR is on. If this occurs, move the VCR to a position alongside the TV receiver. WIRING DIAGRAM Typical wiring for your VCR is shown below. -
Page 7: Antennato Vcr Connections
ANTENNA TO VCR CONNECTIONS ANTENNAS WITH ONE LEAD (Combined VHF-UHF) Disconnect the antenna leads from VHF/UHF Antenna the rear of the TV receiver. Identify the type of cable from your antenna. If it is a round cable as illustrated, it is a 75-ohm coaxial antenna cable. -
Page 8: Cableantenna (Caw) Connections
CABLE ANTENNA (CA TV) CONNECTIONS If your cable wire is connected to your "IV set "IV without a converter or descrambler box, unscrew the wire from your TV and attach it to the IN FROM ANT terminal on the VCR. Use the supplied round coaxial cable... -
Page 9: Vcr Outputchannel Setting
The cable hookup left allows you either TV set 75 ohm Cable System to view and record the same channel (scrambled or non-scrambled signal), or to view one channel (non-scrambled signal) while recording another chan- " nel (scrambled or non-scrambled sig- nal). -
Page 10: Controlnames And Locations
CONTROL NAMES AND LOCATIONS I FRONT OPERATION INDICATORS REC/ITR BUTTON To record normally, press this button once. Press it Details are on the next page. twice to activate Instant Timer Recording (ITR). REW BUTTON CASSETTE COMPARTMENT Where the videocassette is inserted. Press this button during the STOP mode to rewind the tape, or during the... - Page 11 VHF/UHF ANTENNA INPUT CONNECTOR Connect the VHF/UHF antenna to this terminal. VIDEO-OUT JACK Connect this terminal to the video input terminal on an externalunit,such as a monitorreceiveror anotherVCR. AUDIO-OUT JACK Connect this terminal to the audio input terminal on an external unit, such as a monitor receiver, home audio system, or another VCR.
-
Page 12: Remote Controlunit
REMOTE CONTROL UNIT The remote control is used for most of the operations and features of the VCR. Before proceeding, put batteries in the remote and become familiar with the buttons. Use only type AA batteries. The maximum operating distance is about 25 feet. The POWER, REW, PLAY, FF,, P/STILL and RE€/ITR buttons on the remote control unit perform the same functions as the corresponding buttons on the VCR. - Page 13 POWER EJECT MENU ENTER I- -_- EXIT ' Z"_" "_-] Ct_AR cJi.cJ UP, DOWN, LEFT, RIGHT ARROWS (except the 5 button) Move up, down, left, right one row, column, or selection (hold to _-T-_ repeat). • Pt.A-_ _ - • STOP CLOCK/COUNT/REMAIN BUTTON REW/(_]...
-
Page 14: Onscreen Display(Osd)
ONSCREEN DISPLAY ONSCREEN FUNCTION DISPLAYS Some of these functions will be displayed every time the VCR is operated, - =P-CHANNEL DISPLAY STOP FUNCTION DISPLAY Indicates the selected channel (or AV Indicates the function in progress. in AUDIO/VIDEO mode). TAPE SPEED DISPLAY Shows on the current tape speed. -
Page 15: Settingthe Onscreendisplay
SETTING THE ONSCREEN DISPLAY The SETUP, clock setting, and timer recordings are accessed conveniently with MENU Button Onscreen Menu Displays that lead you through each step. The following pages describe the Onscreen selections to be set. -ENTER Button Before Using the Onscreen Display 1. -
Page 16: Channel Selection
CHANNEL SELECTION This VCR is equipped with a frequency synthesized tuner capable of receiving up to 181 channels. These include VHF channels 2-13, UHF channels 14-69 and CLOCK CATV channels 1-125. Channel presetting is required, as described below, after PROGRAM the antenna connections have been completed (described on pages 7-9). -
Page 17: Viewingtv Only
CABLE OPERATION CHANNEL CATV BROADCAST ON DISPLAY CHANNEL If cable television is available in your area, it can be received on your new VCR by subscribing to your local cable television company. Cable "IV channels will then be supplied into your home through a cable. Your local cable television company can advise you of the channels available in your area and any special adaptors that may be required. -
Page 18: Video Cassettetapes
VIDEO CASSETTE TAPES This VCR will operate with any video cassette which has the l_ mark. The table below shows the recording/playback time of VHS cassettes when they are used in the SP, LP and EP speeds. (LP speed is for playback only.) T-60 T- 120 T-160... -
Page 19: Settingthe Clock
SETTING THE CLOCK Things to know before starting POWER EJECT MENU ENTER • The clock uses the 12-hour system. (Be sure to set AM and PM correctly.) MENU Button • The buttons for setting the clock are on the remote control. •... -
Page 20: Normal Playback
NORMAL PLAYBACK NOTES: • Make sure that the Timer indicator in the VCR indicator panel is not lighted. If it is, press the POWER button once. POWER EJECT MENU ENTER • This VCR is equipped with an Auto Power-On system which operates when a cassette is inserted into the VCR. -
Page 21: Special Effectsplayback
SPECIAL EFFECTS PLAYBACK These special effects are available during playback. During their operation the audio is muted. POWER EJECT MEt_ ENTER TO WATCH A STILL PICTURE During PLAYBACK mode,.. 1. Press the P/STILL button. cb c3 Still picture will appear on the TV screen. PLAY Button 2. - Page 22 USING THE SLOW MOTION FEATURE During PLAYBACK mode... _OWER EJECT MENU ENTI_R 1. When you press the SLOW button during playback, the tape will be played back at a speed 1/19 times slower than the normal speed. 2. Press PLAY button to return to normal playback speed or press STOP button to stop tape movement.
- Page 23 VISS (VHS Index Search System)/TIME SEARCH TV's POWER switch ON. The VHS INDEX SEARCH SYSTEM enables you to locate the beginning of any Select channel 3 or 4. recording made on this VCR. Whenever a recording begins, an invisible INDEX If a direct VIDEO/AUDIO connection is mark is recorded on the tape.
-
Page 24: Normal Recording
NORMAL RECORDING PREPARATIONS: _1, Insert the VIDEO CASSE'i-I-E. • Cassette indicator appears on the indicator panel. • Make sure that the Timer indicator • The POWER indicator will light. is OFF. If the Timer indicator appears, press the POWER button Turn the TV set ON, and set the channel of your TV to channel 3 or 4, the same once. -
Page 25: Timer Recording
TIMER RECORDING This VCR can be programmed to record up to 8 programs within a period of 1 year. For unattended recording, the timer needs to know the channels to be recorded and the starting and ending times. Button Things to know before starting •... - Page 26 Press DOWN button to choose the DAY item. Press LEFT or RIGHT button to choose the desired day. PROGRAM 1 Example: 6 SAT START STOP CHANNEL : SPEED Press DOWN button to choose the START item, REPEAT : [_] SELECT EI_ ADJUST Press LEFT or RIGHT button to choose the desired start time.
- Page 27 12. Press EXIT button when finished. Cable Users: If your cable hookup is via a TV converter box, you can program multiple recordings only on the converter box output channel. This is because the converter determines what channel you view through your VCR. NOTE: If you are finished programming and you want to set the VCR to record the pro- grams you have entered.
-
Page 28: Instanttimer Recording(Itr)
INSTANT TIMER RECORDING (ITR) Instant "limer Recording (ITR) allows you to make a recording easily of a preset length without using the program timer. Be sure that clock is set to the correct time before using the ITR. Set the TV's POWER switch to ON. Select channel 3 or 4 to match the VCR's POWER EJECT MENU... -
Page 29: Tape Countermemoryfeature
TAPE COUNTER MEMORY FEATURE REAL-TIME COUNTER Shows length of tape run in hours, minutes, and seconds. Press the CLK/CNT/REM select button to select the real-time counter display or clock display. Every press of the CLK/CNT/REM select button changes the "IV screen as follows. F:'OWER EJECT MENU ENTER --ENTER... -
Page 30: Editinga Recording
EDITING A RECORDING 1. Press the PLAY button and watch the program until you reach the exact point where you want the new recording to start. 2. Press the P/STILL button. 3. Press the .P_C/ITR button once. The program material to be recorded will appear on the television. -
Page 31: Vcr To Vcr Dubbing
CAMCORDER TO VCR DUBBING AND EDITING If you wish to edit or dub your camcorder recordings to this VCR, the rear panel mounted Audio and Video (A/V) input jacks make the connections quick and easy. ANT IN The direct A/V jacks will also provide better picture results than using the RF (IN To TV's FROM ANT) jack on the rear panel. -
Page 32: Troubleshooting
TROUBLESHOOTING SYMPTOM CHECK POINT & CORRECTION INSERTING OR REMOVING THE CASSETTE Cassette cannot be inserted into • Load cassette in direction indicated by arrow on cassette. Cassette Compartment. • Is a cassette already in the VCR? • Check that the display on the VCR is ON. If not, make sure power cord is plugged in. -
Page 33: Video Head Cleaning
CHECK POINT & CORRECTION SYMPTOM CLOCK -- : ..appears on the -IV screen. • Reset time according to instructions. Power has been interrupted. VCR does not start at preset record • Setup recording time according to instructions. starting time. •... -
Page 34: Specifications
SPECIFICATIONS Power Source AC 120V, 60Hz Power Consumption Approx. 16 Watts Head System Four head helical scan azimuth system 33.35 mm/sec Tape Speed (SP) 16.67 mm/sec (LP) 11.12 mmfsec (EP) 12.7 mm Tape Width Maximum Recording Time (SP) 2 HOURS (T-120) (EP) 6 HOURS (T-120) 8 HOURS (T-160) -
Page 36: Warranty
GOLDSTAR LIMITED WA NTY LG Electronics U.S.A., Inc. will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the date of original purchase.
