Craftsman 315.277140 Owner's Manual

4-1/2 inch industrial palm grip random orbit sander double insulated
Hide thumbs

Advertisement

OWNER'S
MANUAL
MODEL NO.
315.277140
CAUTION:
Read Rules for
Safe Operation
and All Instruc-
tions Carefully
CRAFTSMAN°
4-1/2 Inch Industrial Palm Grip
Random Orbit Sander
Double Insulated
Thank You for Buying
Craftsman
Tools
972000-246
4-95
Warranty
Introduction
Operation
Maintenance
Repair Parts
Sold only by
SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179
Printed In U.S.A.

Advertisement

loading

  Related Manuals for Craftsman 315.277140

  Summary of Contents for Craftsman 315.277140

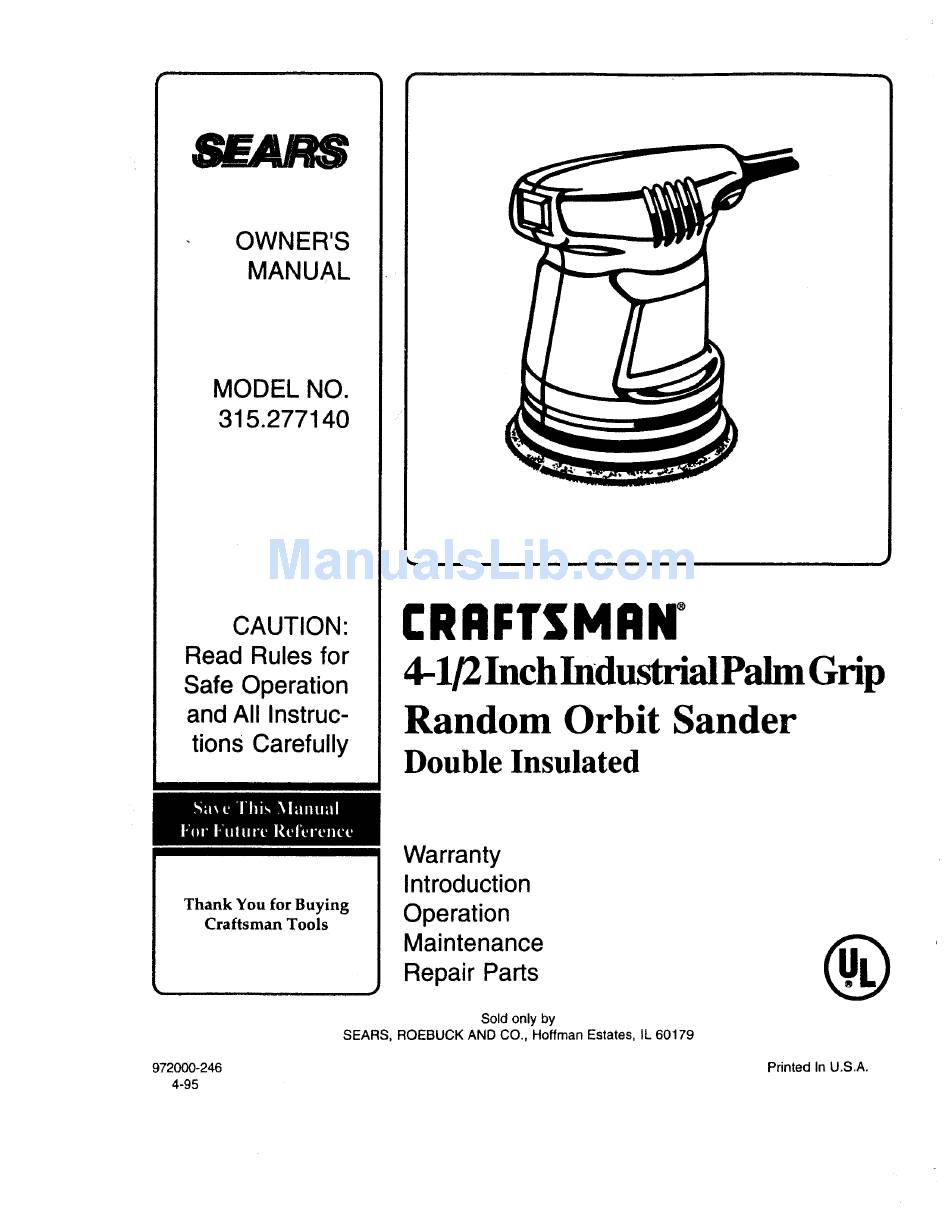

  • Page 1 OWNER'S MANUAL MODEL NO. 315.277140 CRAFTSMAN° CAUTION: Read Rules for 4-1/2 Inch Industrial Palm Grip Safe Operation and All Instruc- Random Orbit Sander tions Carefully Double Insulated Warranty Introduction Thank You for Buying Operation Craftsman Tools Maintenance Repair Parts Sold only by SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179...
  • Page 2: For Safe Operation

    FULL ONE YEAR WARRANTY ON CRAFTSMAN INDUSTRIAL PALM GRIP RANDOM ORBIT SANDER If this.Craftsman Industrial Palm Grip Random Orbit Sander fails due to a defect in material or workmanship within one year from the date of purchase, Sears will replace it, free of charge.
  • Page 3: Rules For Safe Operation

    33. DRUGS, ALCOHOL, MEDICATION. Do not operate tool while under the influence of drugs, alcohol,or any medication._ 34. When servicing use only identical Craftsman replacement parts. 35. POLARIZED PLUGS. To reduce the risk of electric shock,this tool has a polarized plug (one blade is wider than the other).
  • Page 4 FEATURES Your sander is suitable for sanding with coarse, medium, and fine grit sanding discs. See Figure 1. BEFORE'_.TTEMPTING TO USE YOUR SANDER, FAMILIARIZE YOURSELF WITH ALL OPERATING FEATURES AND SAFETY REQUIREMENTS. ELECTRICAL CONNECTION Your sander has a precision built electric motor. It should be connected to a power supply that is 120 volts, 60 Hz, AC only (normal household current).
  • Page 5: Operation

    OPERATION APPLICATIONS SANDING DISC (USE ONLY FOR THE PURPOSES LISTED BELOW) 1. _Sanding wood surfaces. Removing rust from and sanding steel surfaces. SANDING DISC SELECTION Selecting the correct size _rit and type sanding disc is an extremely important step in achieving a high quality sanded finish.
  • Page 6: Preparing For Operation

    OPERATION PREPARING FOR OPERATION carefulnot to let yourhand coverthe air vents. ", TO OPERATE Clamporotherwise securetheworktopreventitfrom moving underyoursander. SANDING See Figure 3. Place sander on workpiece sothat all of sanding disc surface is in contact with workpiece. Start your sander and move it slowlyover workpiece making successive passes in parallel lines, circles, or crosswise movements.
  • Page 7: Maintenance

    MAINTENANCE GENERAL EXTENSION CORDS Only the parts shown on parts list, page 11, are intended to The use ofany extension cord willcause some loss of power. be rqpaired or replaced by the customer. All other parts To keep the loss to a minimum and to prevent tool overheat- represent an important part of the double insulation system ing, use an extension cord that is heavy enough tocarry the and should be serviced only by a qu_ified...
  • Page 8 NOTES Page8...
  • Page 9 NOTES Page 9...
  • Page 10 CRAFTSMAN 4-1/2 INCH INDUSTRIAL PALM GRIP ,HI • RANDOM ORBIT SANDER MODEL NUMBER 315.277140 SEE NOTE "A" Q---7 NOTE: "A" - The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage to the System, service should be performed by your nearest Sears Repair Center.
  • Page 11: Parts List

    CRAFTSMAN 4-112 INCH INDUSTRIAL PALM GRIP RANDOM ORBIT SANDER MODEL NUMBER 315.277140 ,,,Themodel number will be found on a plate attached to the motor housing. Always mention the model number ° in all correspondence regarding your SANDER or when ordering repair parts.
