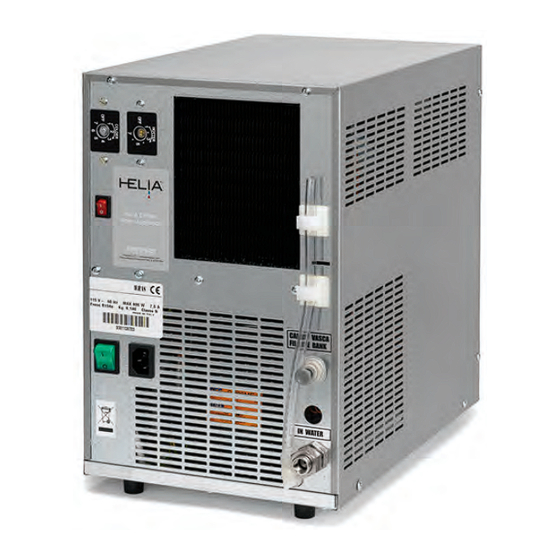

Everpure Helia Water Appliance EV9318-50 Specification Sheet

Low Volume premium water appliance for drinking water
applications
I N S T A L L A T I O N T I P S
Position the appliance in the point of installation,
away from sources of heat and direct sunlight
Do not install the appliance outdoors and in very
damp rooms
The appliance should be positioned in such a way
as to leave approximately 2.40 to 2.80 inches of
space free for air to circulate freely
Flush all dispensers before use
Ensure John Guest fittings are secure before
operation
EV9318-50
Hel ia Wate r A pp lia nce
Helia Water Appliance: EV9318-50 Helia Water Appliance: EV9318-50
O P E R A T I O N T I P S
To ensure the highest quality water, use in
combination with an Everpure filtration system
Before making the water connection, make sure
the incoming water pressure is between 14.5 psi
and 43.5 psi
If the incoming water pressure is below 14.5 psi or
the flow rate is less than 0.50 gpm, fit a device
capable of increasing the pressure (such as an
autoclave or similar)
If the incoming water pressure exceeds 43.5 psi,
predispose a pressure reducer capable of reducing
the latter to the 14.5 psi and 43.5 psi
B E N E F I T S
Chills to an ideal temperature of 40°F
Heats to an ideal temperature of 200°F, with
adjustable temp control
Compact unit is easy to hide in any kitchen
cabinet or wet bar
Whisper-quiet, hermetically sealed, and
maintenance-free compressor and uses stainless
steel components
Sealed ice bank cooling system ensures constant
availability of chilled water
Uses ozone-friendly R134a refrigerant
Consumes only 870 watts of electricity when
compressor is cycling
UL listed
Must be used with the Everpure Helia faucet or
(EV9000-83/87) or three way bar faucet
(EV9000-78)
Use with an Everpure Commercial Grade Water
Filtration System
A P P L I C A T I O N / S I Z I N G
Sized for coffee, office, water applications
Maximum Water Capacity (chilled): 6.6 gph
Maximum Water Capacity (hot): 2.1 gph
