Everpure Exubera EV9318-60 Specification Sheet

I N S T A L L A T I O N T I P S
Position the appliance in the point of installation,
away from sources of heat and direct sunlight
Do not install the appliance outdoors and in very
damp rooms
The appliance should be positioned in such a way
as to leave approximately 2.40 to 2.80 inches of
space free for air to circulate freely
Fill the ice bank before connecting CO2, main
water supply or power
Requires CO2 cylinder to provide carbonation
(EV9318-62)
Before connecting CO2, run water through
dispenser
Flush all dispensers before use
Ensure John Guest fittings are secure before
operation

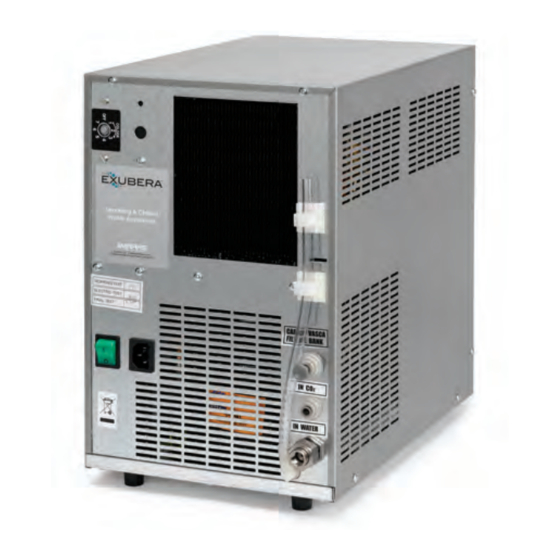

EV9318-60
Exub era W at er A p pli ance
Exubera: EV9318-60 Exubera: EV9318-60
O P E R A T I O N T I P S
To ensure the highest quality water, use in
combination with an Everpure filtration system
Before making the water connection, make sure
the incoming water pressure is between 14.5 psi
and 43.5 psi
If the incoming water pressure is below 14.5 psi or
the flow rate is less than 0.50 gpm, fit a device
capable of increasing the pressure (such as an
autoclave or similar)
The pressure is especially important for those
water coolers fitted with a carbonation device
If the incoming water pressure exceeds 43.5 psi,
predispose a pressure reducer capable of
reducing the latter to the 14.5 psi and 43.5 psi
Advice on using the appliance for carbonated
water: To guarantee the correct operation of the
pump in time, the appliance must always be
operated with water in the cooling circuit
B E N E F I T S
Produces ambient, chilled and chilled carbonated
water
Combined with Everpure filtration technologies,
allows for premium carafe water
Capable of supplying water-cooled to 40ºF
Efficient ice bank technology
Consumes only 350 watts of electricity when
compressor is cycling
Can be plumbed to coffee or ice machine
Durable construction
UL Approved
A P P L I C A T I O N / S I Z I N G
Maximum Cold Water Capacity: 6.6 gph
Suggested tubing: 3/8" OD, 1/4" ID
polyethylene tubing
