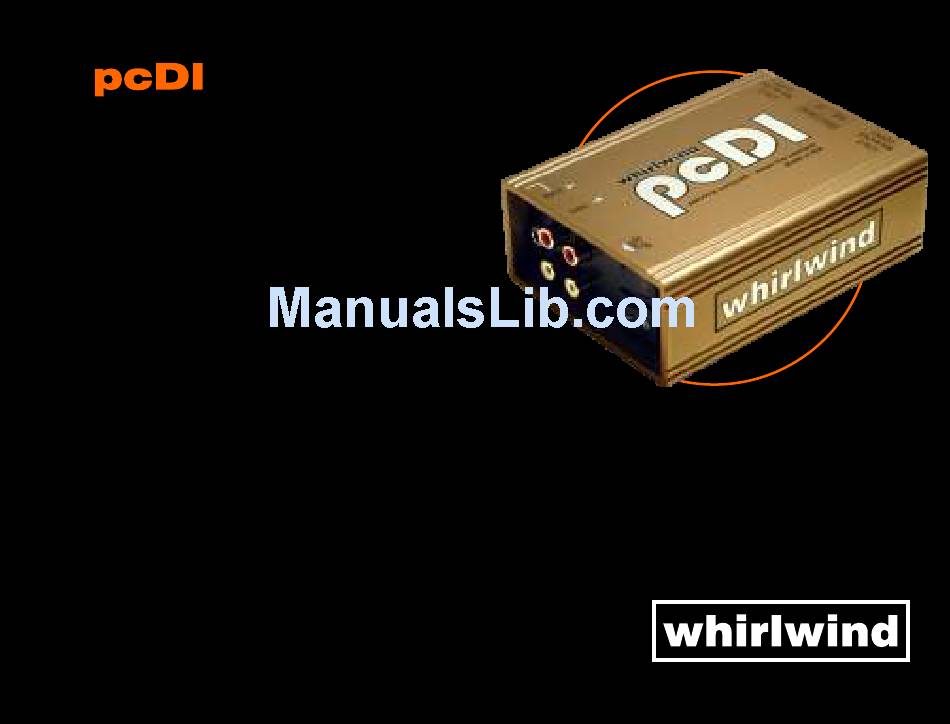

Dual channel stereo direct box. Use
to connect CD and tape players,
computer sound card outputs, DJ
mixers, etc. to professional
equipment with balanced inputs
such as a mixing console.
Signal is input via 3.5mm (1/8")
stereo TRS jack or color-coded RCA
phono type input / through jacks.
Output is via color-coded XLRs.
Features a ground lift switch to help
eliminate hum and buzz, a "STEREO
/ MONO" switch to combine stereo
sources into a mono signal. Each
section also features a 20dB pad
®
switch for connecting to "hot" signal
sources.
www.whirlwindusa.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the pcDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whirlwind pcDI

  • Page 1 Dual channel stereo direct box. Use to connect CD and tape players, computer sound card outputs, DJ mixers, etc. to professional equipment with balanced inputs such as a mixing console. Signal is input via 3.5mm (1/8") stereo TRS jack or color-coded RCA phono type input / through jacks.
  • Page 2 + side of the red RCA This switch is usually left in the phono jack and the sleeve is common “GND” position (grounds are Whirlwind Music Dist., Inc. ground to both. connected from input to output). If 99 Ling Road...
