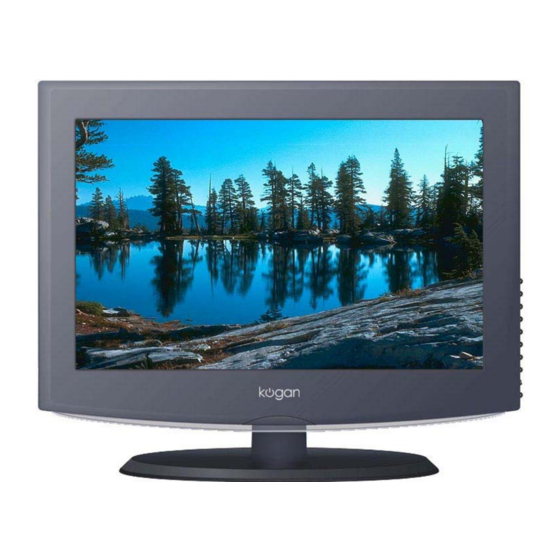

High Definition LCD TV / DVD combo
Kogan PRO32
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Kogan HDMI PRO32

Summary of Contents for Kogan HDMI PRO32

  • Page 1 High Definition LCD TV / DVD combo Kogan PRO32 USER MANUAL...

  • Page 2: Safety Information

    Safety information To ensure reliable and safe operation of this equipment, please read carefully all of the instructions in this user guide, especially the safety information below. Electrical safety ·The TV set should only be connected to a mains power supply which matches that stated on the label on the mains power adaptor.

  • Page 3: Table Of Contents

    OPERATING INSTRUCTIONS Contents Safety information--------------------------------------------------------------------------------------- Electrical safety ----------------------------------------------------------------------------------------- Physical safety ------------------------------------------------------------------------------------------ In the box -------------------------------------------------------------------------------------------------- Connection ------------------------------------------------------------------------------------------------ Rear connection panel -------------------------------------------------------------------------------- 4 Getting Started ------------------------------------------------------------------------------------------- Front panel controls ------------------------------------------------------------------------------------ 5 The Remote control ------------------------------------------------------------------------------------- 6 Using the remote control for normal TV functions ---------------------------------------------- 6 Initial Setup Instruction Guide ---------------------------------------------------------------------- Power ON/OFF: Standby mode -------------------------------------------------------------------- 8 Selection of Input Mode ------------------------------------------------------------------------------ 8...

  • Page 4: In The Box

    In the box TV set Power supply cable Remote control - If any of the accessories are missing, then please contact Kogan Technologies. - Keep all the original packaging in case you need to return the TV to Kogan Technologies.

  • Page 5: Connection

    Connection Rear connection panel Number Name Function Description HDMI HDMI input jacks (audio and video) VGA (D-sub) computer input VGA Audio IN VGA audio input (3.5mm stereo) YPbPr (1,2) IN YPbPr inputs YPbPr (1,2) Audio IN YPbPr Audio input S-VIDEO S-Video input COAX OUT Audio signal (digital) coaxial output...

  • Page 6: Getting Started

    Getting Started 1. Connect the aerial or input source to the appropriate input socket at the rear of the TV set (see page 4). 2. Connect the small round plug on the power adaptor cable to the power input socket at the rear of the TV set. 3.

  • Page 7: The Remote Control

    The Remote Control Using the remote control for normal TV functions 1. Insert two AAA batteries, making sure that the polarity is correct as marked inside the compartment. 2. Aim the remote control at the IR sensor just below the green light (see page 5 for diagram).
  • Page 8 20. GREEN Press to activate the “GREEN” function in teletext ZOOM In DVD mode press to toggle graphic zoom levels. 21. RED Press to activate the “RED” function in teletext PROGRAM In DVD mode press to program playing order 22. EJECT Press to eject a disc from the DVD Player 23.

  • Page 9: Initial Setup Instruction Guide

    Initial Setup Instruction Guide Power ON/OFF: Standby mode - Press POWER button on the remote control or on the side panel to turn on the unit. [The power indicator changes from red to green] - Press POWER button on the remote control or on the side panel again to return the display to standby mode.

  • Page 10: On Screen Display (Osd) Menu

    On Screen Display (OSD) Menu After you have installed the batteries in the remote control, you can set setting preferences on the TV using the OSD menu system. Navigating the OSD menu: The buttons used in the OSD menu include: ’MENU’...

  • Page 11: Video Page Menu

    On Screen Display (OSD) Functions Video Page Menu Adjustment of “Brightness” or “Contrast” 1. Press the Menu button, and the “Video” menu appears. 2. Press or Enter to enter the “Video” sub menu 3. Press to highlight your selection. 4. Press to adjust.
  • Page 12 Selection of “Color Temperature” 1. Press the Menu button, and the “Video” menu appears. 2. Press or Enter to enter the “Video” sub menu 3. Press to highlight “Color Temperature”. 4. Press or Enter to enter the Color Temperature submenu. 5.
  • Page 13 Table of Advanced Video Adjustment Settings Setting Options Description Off, Low, Medium, Select to control the sharpness Strong, Auto and noise reduction. Off, Low, Medium, Strong Select to improve the dynamic color level. Select “On” to correct the flesh Flesh Tone On, Off tone automatically.

  • Page 14: Audio Page Menu

    Table of VGA Display Adjustment Items Description button to select it. H. Position button move the display left or right. button to select it. V. Position button to move the display up or down. button to select it. Phase button to adjust. button to select it.

  • Page 15: Tv Page Menu (Only For Tv)

    Selection of “SPDIF Type” 1. Press the Menu button, and then press until the “Audio” menu appears. 2. Press or Enter button to enter the “Audio” menu. 3. Press to highlight “SPDIF Type”. 4. Press to select “Dolby Digital”, “PCM” or “Off”. 5.
  • Page 16 Using the “Channel Scan” 1. Press the Menu button, and then press he “TV” menu appears. 2. Press or Enter button to enter the “TV” menu. 3. Press to highlight “Channel Scan”. 4. Press or Enter button to start the channel search. 5.
  • Page 17 Selection of “Channel Edit” 1. Press the Menu button, and then press until the “TV” menu appears. 2. Press or Enter button to enter the “TV” menu. 3. Press to highlight “Channel Edit”. 4. Press or Enter button to enter the submenu. 5.

  • Page 18: Setup Page Menu

    Setup Page Menu Use of the “Time Setup” menu 1. Press the Menu button, and then press until the “Setup” menu appears. 2. Press or Enter button to enter the “Setup” menu. 3. Make sure “Time Setup” is highlighted, press as required.
  • Page 19 “Sleep Timer” Option This option is replaced by use of the SLEEP button on the remote control. See Page 6, button 19 for more details. “Reset Default” Selecting this option will return items in the setup menu to factory default (Note: this will not reset the Parental password) 1.

  • Page 20: Parental Page Menu

    Note: The initial password for the system is “0000”. If you have changed the password and forgotten it, please contact Kogan Technologies. It is advised that the password be changed the first time the Parental Menu is accessed. Do not forget your new password! Using the “Change Password”...
  • Page 21 Using the “Program Block” function 1. After entering the “Parental” menu, press to highlight “Program Block”. 2. Press or Enter button to confirm. 3. Press to choose from the following options: - Block All - No Block - Block R and above: restricted 18+ - Block AV and above: adult audience.
  • Page 22 Using the “Clean All” function 1. After entering the “Parental” menu, press to highlight “Clean All”. 4. Press or Enter button and the “Are you sure” Popup menu will appear. 5. Press to choose between “OK” and “Cancel”. Choose “OK” to Clean All. This will remove all Parental Blocks from the system (the password changes will remain).

  • Page 23: Dvd Player Operation

    DVD Player Operation Basic Disc operation Turn ON and OFF the DVD function Turn on the LCD TV and then press AV/TV repeatedly to select DVD mode. Insert disc into DVD slot Insert the disc into the Disc slot, with the (printed side of the disc facingt towards back of the unit). The player will load the disc automatically.
  • Page 24 ii) Sequential playback (for DVD / Super VCD / VCD / CD / CD-G / HD-CD and Mp3/MPG discs) Apart from discs with menus (most DVDs, Super VCD and VCD 2.0), sequential playback will commence automatically upon insertion of the disc. iii) Program playback (for DVD / Super VCD / VCD / CD / CD-G / HD-CD and Mp3 / JPEG discs) Using Program playback, you can select up to 16 tracks from the disc to playback in a programmed order.

  • Page 25: Supporting Dvd Formats

    Supporting DVD formats This product can play the following DVD disc formats: Disc Type Disc Size (Diameter) Recording Time Recorded Content Remarks 12cm Single side: 120mins. Approx DVD format: Compressed digital audio and video Double sides: 240mins. Approx Super VCD 12cm 45mins.

  • Page 26: Dvd Functions Operating Instructions

    DVD Functions Operating Instructions Please refer to the remote control guide on page 7 for button number references. Play (for DVD / Super VCD / VCD / CD / CH-G / HD-CD and MP3 / JPEG /MPG input) For DVD discs, press from the root or title menu.
  • Page 27 Repeat (for DVD / Super VCD / VCD / CD / CH-G / HD-CD and MP3 / JPEG /MPG input) Press REPEAT once to display the current repeat mode. For Super VCD, VCD, CD, CD-G, HD-CD discs, while playing in sequence mode, press REPEAT to toggle between the following modes in sequence: REPEAT (OFF) / REPEAT (1) / REPEAT (ALL) For DVD discs, press REPEAT to toggle between the following modes in sequence:...
  • Page 28 Audio (for DVD / Super VCD / VCD / CD / CH-G / HD-CD and MP3 / JPEG discs) Press LANG once to display current audio mode. Press again to toggle between different audio modes in sequence. ♦ For DVD discs, toggle between audio tracks offered, such as different language, directory commentary, Dolby Digital, etc.

  • Page 29: Mp3 / Jpeg / Video File Playback

    MP3 / JPEG / Video File Playback After loading a data disc, USB Drive or Memory Card (see page 30 – “Source” for more information), the TV will start to scan for the stored MP3s, JPEG photos and MPG videos folders. It will automatically display the MP3 contents and start to play the first file (highlighted file).

  • Page 30: Dvd Player Functional Settings Menu

    DVD Player Functional Settings Menu Menu Navigation 1) In DVD mode, press DVD SETUP button to activate the DVD player Functional Settings menu. 2) Press to move and highlight between different sub-menus. 3) Press or ENTER to enter the highlighted sub-menu. 4) Press DVD SETUP button again to exit the OSD menu, or move the highlight to EXIT SETUP then press ENTER button to exit.
  • Page 31 Password - To edit the rating setting, press to highlight the use the Number buttons to enter the default password “0000”, then press ENTER to confirm and unlock. -To change the password, input any 4 digit number when the Unlock symbol is showing. Once the 4 digit number is entered, that will be the new password and the new lock will be activated.

  • Page 32: Language Setup

    Language Setup Press DVD SETUP button to enter the DVD Functional settings menu, use until the Language Setup menu appears, then press or ENTER to confirm the selection. NOTE: For all of the below, if the selected language is not included in your DVD disc content, it will select the default language of the disc automatically.

  • Page 33: Troubleshooting

    Troubleshooting Before contacting a service technician for any problems that arise, perform the following simple checks. If the problem persists, unplug the LCD TV and contact Kogan Technologies. PROBLEM POSSIBLE SOLUTION - Check that the main plug has been properly connected to a power outlet.

  • Page 34: Maintenance

    The following troubleshooting problems below refer only to VGA mode. PROBLEM POSSIBLE SOLUTION - Adjust resolution, horizontal frequency, or vertical frequency. The image is not appearing on - Check it whether the signal cable is connected or loose. the screen properly - Check the input source.

  • Page 35: Handling Discs

    Handling Discs 1. To remove a disc from its storage case, press on the center of the case and take the disc out. 2. Hold the disc by the edges, to avoid touching the Recorded side of the disc. Cleaning discs 1.

  • Page 36: Features And Specifications

    Features ·High Definition display. ·Support HDMI Interface (HIGH-DEFINITION MULTIMEDIA INTERFACE). ·DVD and DVB-T All in One. ·RF, HDMI, VGA, YPbPr, AV, S-Video, DVD, USB, Card Reader inputs. ·Stereo audio inputs. ·Coaxial Digital audio outputs. ·Automatic or manual channel search. ·Auto-shutdown to save power when no signal is present. Specifications TV System PAL/Secam/NTSC...
