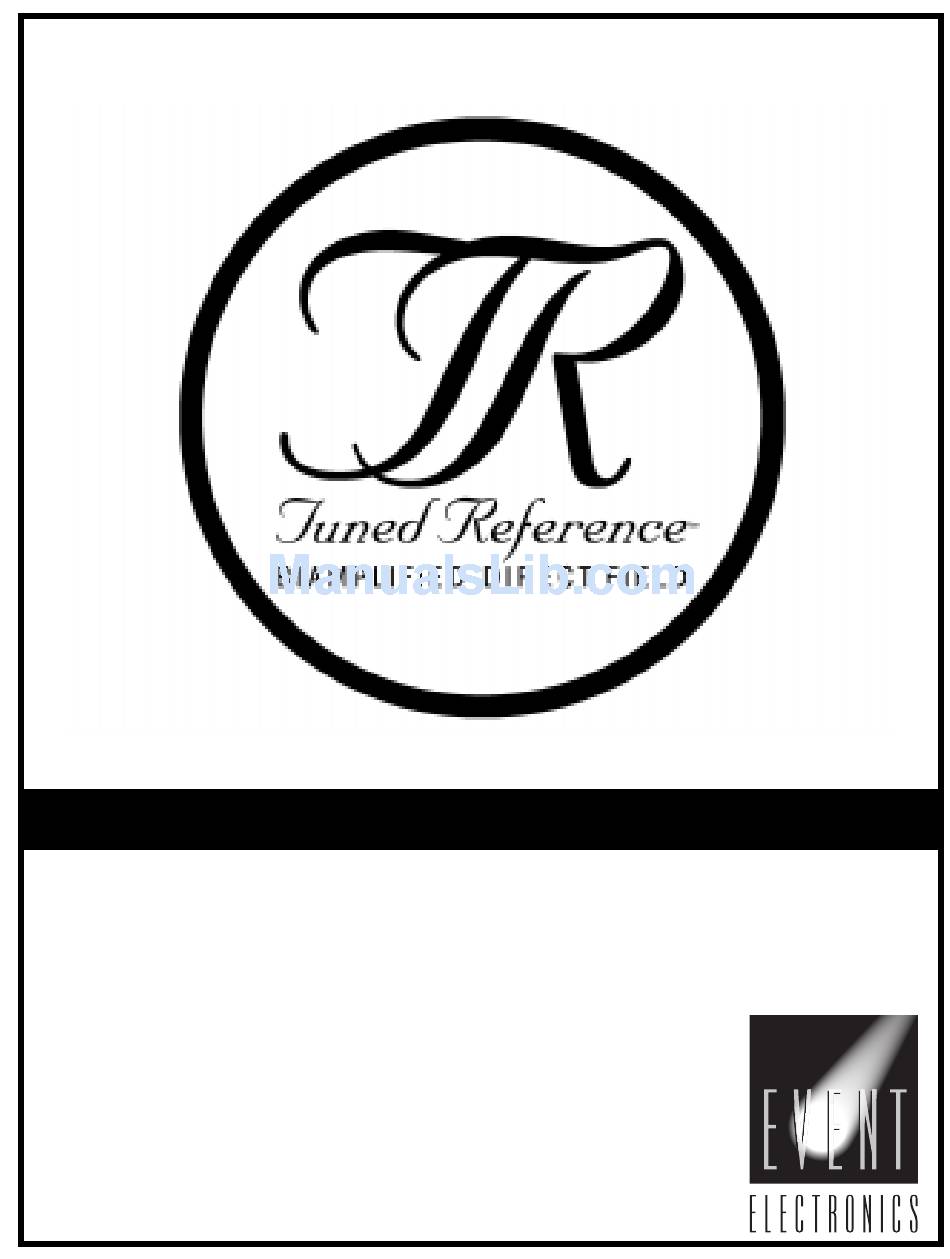

- Page 1 USER GUIDE...
- Page 2 TUNED REFERENCE USER GUIDE Thank you for choosing the Tuned Reference Biamplified Direct Field ™ Monitor System. To get the most from your new monitors, please take a moment to read this manual and familiarize yourself with the product’s features, set-up, and use. About the Tuned Reference Series Our engineers have spent years designing transducers, studio electronics, and high performance studio monitoring systems—including some of the...
- Page 3 Setup You’ll notice that the Tuned Reference monitors are physically identical. When used in a stereo configuration, there is no physical or acoustic distinction between the left and right speakers. Note, too, that the cabinets can sit vertically or horizontally without regard for performance, so long as both cabinets are situated in the same direction.
- Page 4 TUNED REFERENCE USER GUIDE most accurate stereo reproduction. If you need a wider sweet spot to allow for greater listener movement or for group monitoring, face the speakers in a slightly more open position, but never more than necessary. Finally, if you must mount the speakers substantially above or below ear level, you will also need to tilt the cabinets downward or upward to keep the driver components directly facing you.
- Page 5 The Line 2 input connector is hardwired in parallel with the Line 1 input connector, so either may be used as an input or as a pass-through connection. Input specifications apply equally to both inputs. BALANCED INPUTS Figure 2. Tuned Reference rear panel connections and controls. Unbalanced RCA Line Input This jack accepts a male RCA connector, wired for unbalanced operation.
-
Page 6: Care And Maintenance
TUNED REFERENCE USER GUIDE Input Sensitivity This control is used to compensate for different signal levels that appear at the input. The control has a 20dB range; when set at maximum (MAX), 0.5V RMS input at the balanced ins or 0.25V RMS at the unbalanced in will produce full amplifier output. - Page 7 TUNED REFERENCE USER GUIDE Contacting Customer Service If you experience any trouble with your Tuned Reference monitors, please call the Event Electronics Customer Service department at 805-566-7777, ext. 5. Before calling, however, we ask that you please consult the Technical Support section of our Web site, www.event1.com.
- Page 8 TUNED REFERENCE USER GUIDE Tuned Reference Specifications (cont.) Input Impedance 40k balanced, 20k unbalanced Input Sensitivity 0.5V RMS input at the balanced ins or 0.25V RMS input at the unbalanced in produces full output with Input Sensitivity control at maximum Input Sensitivity Control Range 20dB Protection...
