Summary of Contents for FFC LAF3438

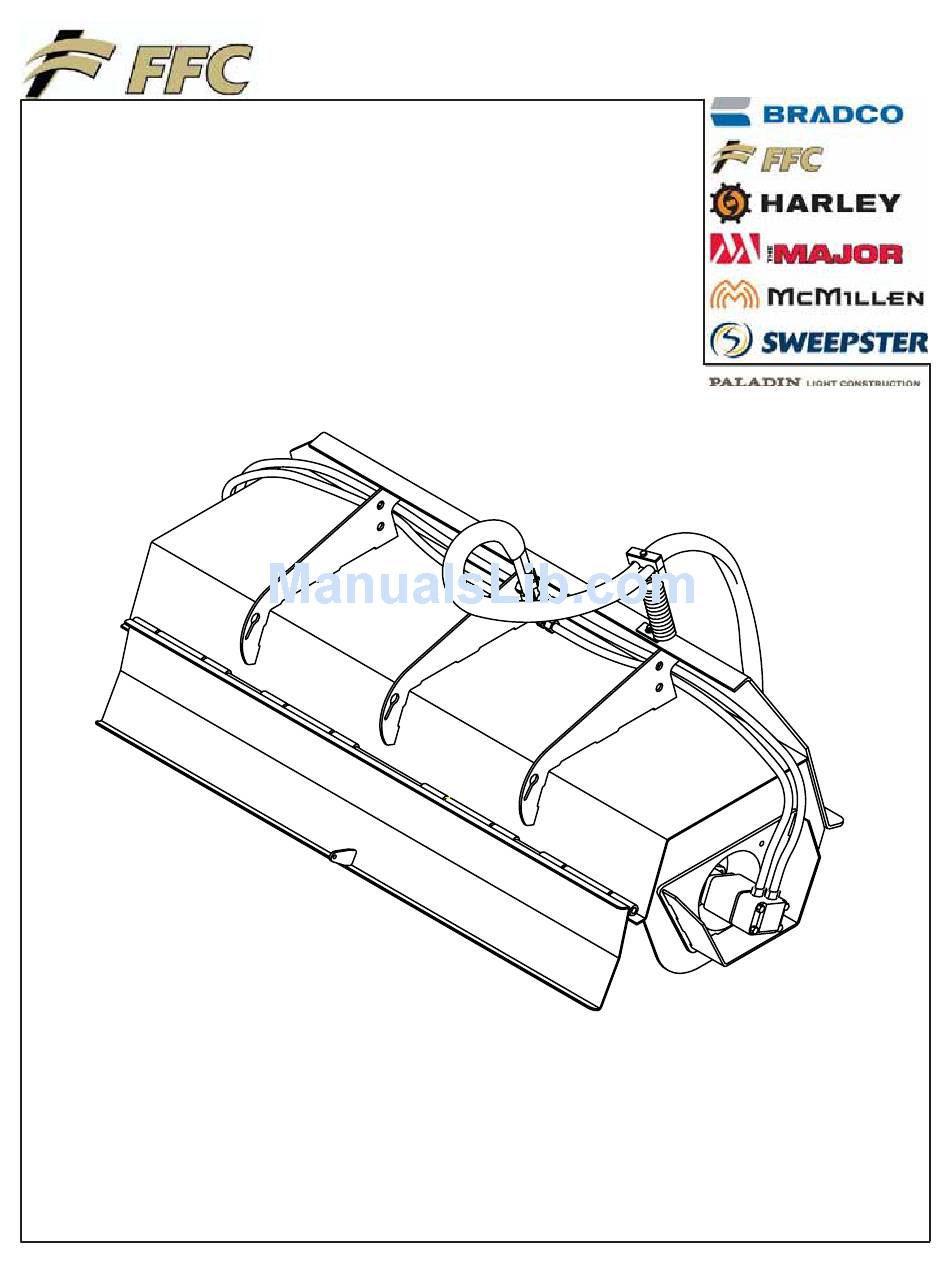

- Page 1 OPERATOR’S & PARTS MANUAL ROTO-TILLER SERIAL NUMBER: ___________________ Manual Number: MR15639 Models: LAF3438, LAF3452 & LAF3468 MODEL NUMBER: ___________________ Date: February 2007 800-747-2132 I www.paladinbrands.com 100 East Lee Road, Lee, IL 60530, United States of America...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction, General Information, Serial Number ……………………………………………….. 1 Owner and Operator Safety Information …………………………………………………………… 2-5 Definitions of Safety Terms and Symbols, Accident Prevention ……………………… 2 Safety Instructions .......……..…………………………………………… 3-4 Safety Signs .......…........………………………………. 5 Power Unit Specifications, Mounting ……………………………………………………………… 6 Hydraulic Connection ……………………………………………………………………………….. -
Page 4: Owner And Operator Safety Information
DEFINITION OF SAFETY TERMS AND SYMBOLS Throughout this manual, the terms DANGER, WARNING, and CAUTION are used to indicate the degree of hazard to personnel if proper safety procedures are not followed. These words will be used in conjunction with the Safety Alert Symbol: a dark triangle containing a white exclamation mark. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WORK SAFELY - A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST ACCIDENTS !! SECTION 1 Use the right tool for the job at hand. WARNING SECTION Make sure that your tools are in good condition for performing the desired function. WARNING When using tools, wear the protective equipment Obey all the safety instructions listed in... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS WORK SAFELY - A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST ACCIDENTS !! WHEN MOUNTING THIS PRODUCT TO YOUR POWER UNIT: WARNING SECTION [CONTINUED] Refer to the operator’s manuals of your power unit, your loader, and your quick-attach for special or WARNING detailed mounting instructions. -
Page 7: Safety Signs
SAFETY SIGN LOCATIONS ITEM QTY. PART # DESCRIPTION 50-0723 READ MANUAL 50-0724 HYDRAULIC RDL3100 STAND CLEAR RDL3178 NOT A STEP INSTRUCTIONS Keep all safety signs clean and legible. Replace all missing, illegible, or damaged safety signs. Replacement parts for parts with safety signs attached must also have safety signs attached. -
Page 8: Power Unit Specifications, Mounting
POWER UNIT SPECIFICATIONS IMPORTANT Exceeding any of the maximum recommended power unit specifications CAN result in damage to this product and WILL void all FFC Attachments warranties. DESCRIPTION SPECIFICATIONS Weight of Power Unit without Planer 11,000 lbs. maximum Operating Capacity of Power Unit’s loader 3,750 lbs. -
Page 9: Operation, Maintenance
ROTO-TILLER OPERATION SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-5 of this manual) BEFORE BEGINNING ANY ROTO-TILLER OPERATION WARNING Failure to obey the following procedures could result in death or serious injury. Never lift the lowest portion of this product higher than 1’-0” above the ground while operating. Do not lock the auxiliary hydraulics of your power unit in the “ON”... -
Page 10: Service
ROTO-TILLER SERVICE SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-5 of this manual) BEFORE BEGINNING ANY ROTO-TILLER SERVICE Removing Wire, Twine, Weeds, etc. that are Wrapped Around the Roller 1. Park your power unit on a level surface with this product properly attached. 2. -
Page 11: Parts Illustration
PARTS ILLUSTRATION... -
Page 12: Parts List
ROTO-TILLER: PARTS LIST LAF3438 LAF3452 LAF3468 ITEM QTY. 38” 52” 68” DESCRIPTION DHF2021 Chain: 18 links varies (28) (36) LAF3400 Tine varies (2) LAF3401 Motor Guard varies (2) LAF3402 Motor Mounting Plate varies (2) LAF3403 Motor-Tine Shaft Coupler LAF3416 LAF3404 LAF3408 Shroud LAF3414... -
Page 13: Specifications
ROTO TILLER SPECIFICATIONS Model Overall Overall Overall Offset to Torque @ Shipping Number Width Height Depth Right 2,500 psi Weight LAF3438 53” 27” 27” varies 469 ft. lbs. 450 lbs. LAF3452 67-13/16” 27” 33-1/2” 12-1/2” 939 ft. lbs. 600 lbs. LAF3468 78-1/4”... -
Page 14: Warranty
PLEASE TRI-FOLD AND AFFIX TAPE HERE Warranty Registration Form and Delivery Inspection Report IMPORTANT! Warranty Void if card is not returned with 10 days. All Applicable sections must be filled in. This section to be filled out and signed by Dealer at time of delivery. Warranty Registration Customer’s Name Dealer’s Name... - Page 15 FFC LIMITED 12 MONTH WARRANTY Thank you for purchasing a FFC product. Warranty protection is valid only when this Warranty Registration is completed and signed by the customer and dealer, and mailed to FFC. I hereby acknowledge that I have received a copy of the owners Limited Warranty and I accept the terms therein.
