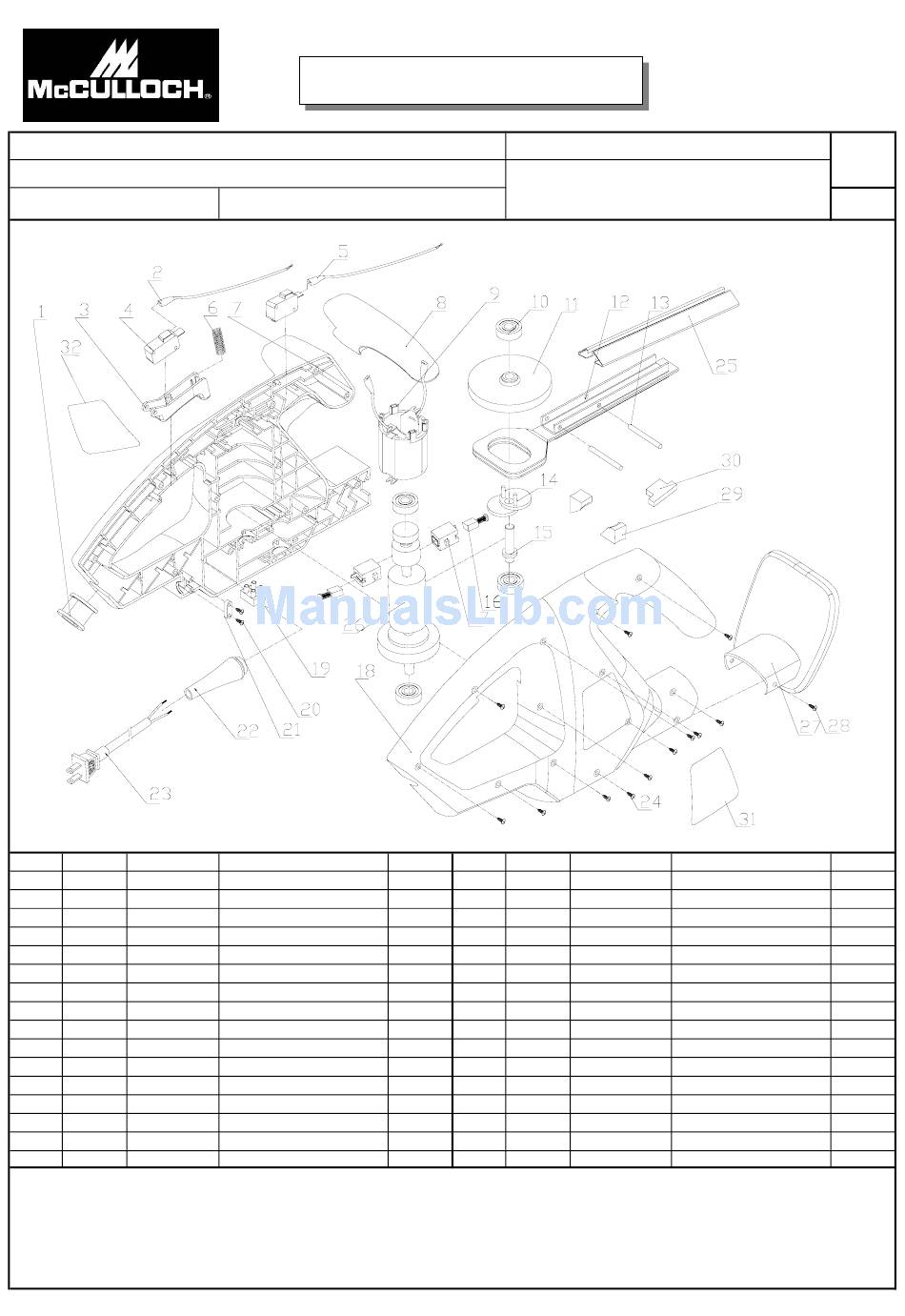

McCulloch MT203A16 Service Spare Parts List

SPECIFY MODEL NO. WHEN ORDERING PARTS
16" Hedge Trimmer
MODEL NO.
No. Parts No.
STK CODE
1 MC-6059-203A01
2 MC-6010-203A02
3 MC-6028-203A02
4 MC-6022-203A01
5 MC-6010-203A01
6 MC-6024-203A01
7 MC-6038-203A01
8 MC-6028-203A01
9 MC-6261-203A01
10 MC-6MB-608-01
11 MC-6073-203A01
12 MC-6250-203A02
13 MC-6115-203A01
14 MC-6112-203A01
15 MC-6111-203A01
16 MC-6216-203A01
Stocking Codes are:
A - Dealer stocked
SERVICE SPARE PARTS LIST
MT203A16 / 41AFA16K977
Description
TUBE
WIRE
TRIGGER
SWITCH
WIRE
SPRING
HOUSING (L)
TRIGGER
FIELD ASS'Y
BEARING
GEAR
16" BLADE
PIN
ECCENTRIC SHAFT
OUTPUT SHAFT
BRUSH
B - Distributor stocked
Q No. Parts No.
STK CODE
1 17 MC-6159-203A01
1 18 MC-6038-203A02
1 19 MC-6041-840001
2 20 MC-6SDABB04-14
1 21 MC-6043-982002
1 22 MC-6199-203A01
1 23 MC-6011-203A01
1 24 MC-6SDABB04-20
1 25 MC-6017-203A02
4 26 MC-6260-203A01
MC-6262-203A01
1 27
1 28 MC-6SVABB04-10
2 29 MC-6252-203A02
1 30 MC-6252-203A01
1 31 MC-6097-203A08
2 32 MC-6097-203A07
C - Factory stocked
DATE
9/30/2003
Description
BRUSH HOLDER
HOUSING (R)
TERMINAL BLOCK
SCREW
STRAIN RELIEF
CORD GUARD
POWER CORD
SCREW
BLADE COVER
ARMATURE
COVER
SCREW
GASKET
GASKET
LABEL (R)
LABEL (L)
REVISED
DATE
N/A
Q
2
1
2
2
1
1
1
12
1
1
1
2
2
1
1
1
