Troy-Bilt TB65REX User Manual

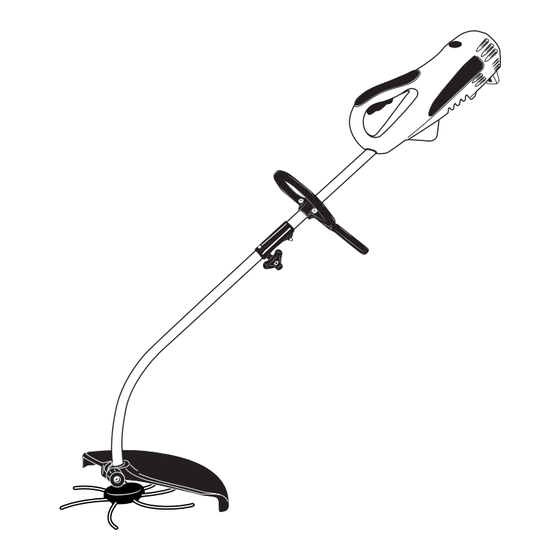

Cordless grass trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
MANUEL DE UTILISATION
MANUAL DEL USUARIO
MODEL : TB65REX
SAFETY
OPERATION
MAINTENANCE
SECURITE
FONCTIONNEMENT
ENTRETIEN
SEGURIDAD
OPERACION
MANTENIMIENTO
For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can
result in serious personal injury. Spend a few moments to familiarize yourself with your trimmer before each use.
Pour votre sécurité, lisez entièrement ce manuel avant d'utiliser votre nouvel outil. Le non respect des instructions peut
résulter en des accidents graves. Prenez quelques instants pour vous familiariser avec le coupe-herbe avant chaque utili-
sation.
Para su propia seguridad, favor de leer este manual antes de intentar operar su unidad nueva. Si no se siguen estas
instrucciones se pueden provocar serias heridas personales. Favor de dedicar un poco de tiempo para familiarizarse cada
vez que se utilice la unidad.
PN 6096-230301
Cordless Grass Trimmer
Toneuse/Tronçonneuse Électrique de gazon
Recortaador/Cortador de Césped Eléctrico
WARNING • PLEASE READ
AVERTISSEMENT • LIRE ATTENTIVEMENT
ADVERTENCIA • FAVOR DE LEER
Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB65REX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Troy-Bilt TB65REX

Summary of Contents for Troy-Bilt TB65REX

  • Page 1 USER MANUAL Cordless Grass Trimmer MANUEL DE UTILISATION Toneuse/Tronçonneuse Électrique de gazon MANUAL DEL USUARIO Recortaador/Cortador de Césped Eléctrico MODEL : TB65REX SAFETY OPERATION MAINTENANCE SECURITE FONCTIONNEMENT ENTRETIEN SEGURIDAD OPERACION MANTENIMIENTO WARNING • PLEASE READ For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury.

  • Page 2: Please Read

    PLEASE READ Dear Customer, Thank you for purchasing a Troy Bilt product. With proper operation and maintenance it will provide you with years of service. In order to make the best use of your investment, be CERTAIN to familiarize yourself with the contents of the ENTIRE User Manual before attempting to operate and maintain your unit.

  • Page 3: Informacion General

    1 - GENERAL INFORMATION - RENSEIGNMENTS GENERAUX - INFORMACION GENERAL SPECIFICATIONS ........TB65REX Input .
  • Page 4 1 - GENERAL INFORMATION - RENSEIGNMENTS GENERAUX - INFORMACION GENERAL MOTOR HOUSING CARTER MOTEUR CORD RETAINER CAJA DEL MOTOR RETENUE DU CORDON RETENEDOR DEL CABLE REAR HANDLE POIGNEE ARRIERE ON/OFF TRIGGER MANUBRIO TRASERO MANETTE MARCHE/ARRET GATILLO DE ENCENDI- DO/APAGADO AIR OPENINGS TROUS DE VENTILATION APERTURAS DE AIRE “P“...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS DE SECURITE IMPORTANTES - INSTRUCCIONES DE SEGURIDAD IMPOR- TANTES PLEASE READ - SAVE THESE INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed to assure maximum safety and optimum performance. Read this manual before assembling and operating this appliance. Failure to comply with instructions may result in electrical shock, burns, fire, or personal injury.
  • Page 6 INSPECT UNIT FOR DAMAGE to the housing or plug. Keep all fasteners tight. Do not use if the trigger does not turn the unit off properly. Never use unit if cord or plug has been damaged, the motor or unit itself is not working as it should or has been dropped, damaged, left outdoors or dropped in water.
  • Page 7 (1). When using the appliance, an extension cord of adequate size must be MINIMUM WIRE GAUGE RECOMMENDATIONS used for safety and to prevent loss of power and overheating. EXTENSION CORD WIRE SIZE VOLTS LENGTH REQUIRED (2). The extension cord must be specifically intended for outdoor use and 25 feet / 7.5m 18 A.W.G.* marked “SJ”...
  • Page 8 8. KEEP HANDS AND FEET AWAY from rotating line. Do not operate without debris shield attached. 9. DRESS PROPERLY - Always wear long pants, shoes and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. 10. KEEP AREA CLEAR - Keep everyone, especially children and pets away from the area of operation 50 feet (15m). Turn off unit immediately if you are approached.
  • Page 9 14. DO NOT OVERREACH - Keep firm footing and balance at all times. 15. AVOID UNINTENTIONAL STARTING - Do not carry plugged in trimmer with your finger on the trigger. 16. DISCONNECT trimmer from power supply when not in use and before servicing stringhead. 17.
  • Page 10 FOR WARRANTY OR SERVICE contact the nearest Troy Bilt Authorized Service Centerby calling 800# on back cover. 1-3. INTERNATIONAL SYMBOLS 1. Read the User Manual (Figure 2-1). 2. Use of these personal safety items is highly recommended to reduce the risk of accidental injury (Figure 2-2). SAVE THESE INSTRUCTIONS POUR TOUT ENTRETIEN OU SERVICE AU TITRE DE LA GARANTIE, prenez contact avec le Centre de mainte- nance agréé...
  • Page 11 3 - ASSEMBLY INSTRUCTIONS - INSTRUCTIONS POUR MONTAGE - INSTRUCCIONES DE ENSEMBLADO 3-1A 3-1B NOTE: The only assembly required for your trimmer is to install the debris shield and adjust the assist handle. 3-1. DEBRIS SHIELD INSTALLATION Position the motor housing with string head carrier facing up (Figure 3-1A). Place the debris shield (A) on the tube so the holes align with the slots on the bracket (B)(Figure 3-1B).
  • Page 12 3-3A 3-3B 3-3. REX DISPOSABLE CUTTING HEAD INSTALLATION AND REMOVAL INSTALLATION Unplug unit. Position the unit with the string head carrier facing up Align disposable string head locking tabs with corresponding slots in carrier as shown (Figure 3-3A). With firm pressure push disposable string head onto carrier until an audible click is heard. REMOVAL Unplug unit.

  • Page 13: Installing The Attachment

    Release Button Release Button Primary Hole Coupler Le bouton du de dégagement Le bouton du de dégagement Coupleur Trou primaire Botón de liberación Botón de liberación Acoplador Orificio Principal Knob Upper Shaft Housing Attachment Knob Bouton Guide Recess Boîtier supérieur de la manche Accessoire Bouton Cavité...
  • Page 14 4 - ADJUSTMENT INSTRUCTIONS - INSTRUCTIONS DE RÉGLAGE INSTRUCCIONES DE AJUSTE 4-1. CONNECT THE CORD Ensure the cord is NOT plugged into a receptacle before this procedure. Make a loop with 8”- 10” (20 - 25cm) of the end of the extension cord. Place the loop into the slots (A) under the motor housing and lock into place as shown in Figure 4-1.

  • Page 15: Trimmer Operation

    4-3A 4-3B 4-3. TRIMMER OPERATION TRIMMING / MOWING (Figure 4-3A). Swing trimmer with a sickle-like motion from side to side. Do not tilt the string- head during the procedure. Test area to be trimmed for proper cutting height. Keep stringhead at same level for even depth of cut.
  • Page 16 4-3C TRIMMING AROUND TREES. Trim around tree trunks with a slow approach so string does not contact bark. Walk around the tree trimming from left to right. Approach grass or weeds with the tip of the string and tilt stringhead slight- ly forward.
  • Page 17 5- ACCESSORIES and LUBRICANTS - ACCESSOIRES et LUBRIFIANTES - ACCESORIOS y LUBRICANTES FOR PERFORMANCE AND SAFETY REASONS USE ONLY GENUINE GENUINE FACTORY PARTS ACCESSORIES AND REPLACEMENT PARTS. USE ONLY THE STRINGHEAD SUPPLIED WITH THIS PRODUCT. DO NOT USE ANY OTHER CUTTING ATTACHEMENT. POUR DES RAISONS DE PERFORMANCES ET DE SÉCURITÉ, UTILISEZ EXCLUSIVEMENT DES DES PIÈCES DE RECHANGE ET ACCESSOIRES D'ORIGINE.
  • Page 18 6 - MAINTENANCE INSTRUCTIONS - ENTRETIEN - INSTRUCCIONES DE MAINTENIMIENTO 6-1. STRINGHEAD Use only appropriate REX replacement accessories. Always clean dirt and debris from the spool and hub prior to, when the unit is idle, and after performing any type of maintenance.

  • Page 19: Parts List

    6 - PARTS LIST Parts No. Description Parts No. Description 6003-230301 READ HOUSING 17-7 6008-230303 SPOOL CARRIER 6038-230305 HOUSING (R) 17-8 6194-230302 CUTTING LINE 6169-230301 6228-230306 BAG BEHIND ASS'Y 6099-230301 MOTOR 18-1 9081-332101 CONNECTOR 6022-230301 SWITCH 18-2 6SDAB-05-08 SCREW 6228-230304 CONNECTING HEAD ASS'Y 18-3 9056-332101...
  • Page 20 MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by Troy-Bilt LLC No implied warranty, including any implied warranty of with respect to new merchandise purchased and used in the merchantability or fitness for a particular purpose, United States, its possessions and territories.
  • Page 21 à quatre-vingt-dix (90) jours à compter de ou de substitution pour l'entretien des pelouses, le trans- la date d'achat au détail initiale pour tout produit Troy-Bilt util- port ou des frais connexes, ou les frais entraînés par une isé...
  • Page 22 Troy-Bilt y que sea usado con el (los) producto(s) con- Las estipulaciones establecidas en esta Garantía ofre- templados en este manual, anularán la garantía con respec- cen la solución única y exclusiva que resulte de las ven-...
  • Page 23 STOP ARRÊT For problems or questions, DO NOT return this product to the store. Contact your ALTO Customer Service Agent . En cas de problèmes ou pour des questions, NE PAS retourner ce produit au point de vente. S'adresser au préposé du Service à la clientèle en composant. Para problemas o preguntas, NO devolver este producto a la tienda Contacte a su Agente de Servicio al Cliente.
