Introduction
The Model C2314-C2317 Reversible Stile and Rail
Sets allow you to shape ¾" material into door stiles
and then simply reverse the cutter components to
shape the door rails. This set comes complete with
a ball bearing guide and shims.
⁄
"
1
4
Reversible Stile and Rail Set
• Failure to follow these guidelines will result
in serious personal injury.
• Follow the safety guidelines set forth by the
manufacturer of the shaper.
• DO NOT remove guards and anti-kickback
devices from the shaper.
• ALWAYS WEAR ANSI APPROVED EYE AND
EAR PROTECTION when using this bit.
• Unplug shaper before installing or adjusting
cutter.
• Always inspect workpiece for cracks, knots,
or other imperfections that could cause the
workpiece to kick or shatter while milling.
• Always feed the workpiece against the cut-
ter rotation.
These shaper bits have sharp edges. Use care
while removing the waxy protective coating.
Never turn on the shaper with the protective
coating still on the bit.
2
⁄
"
1
2
1"

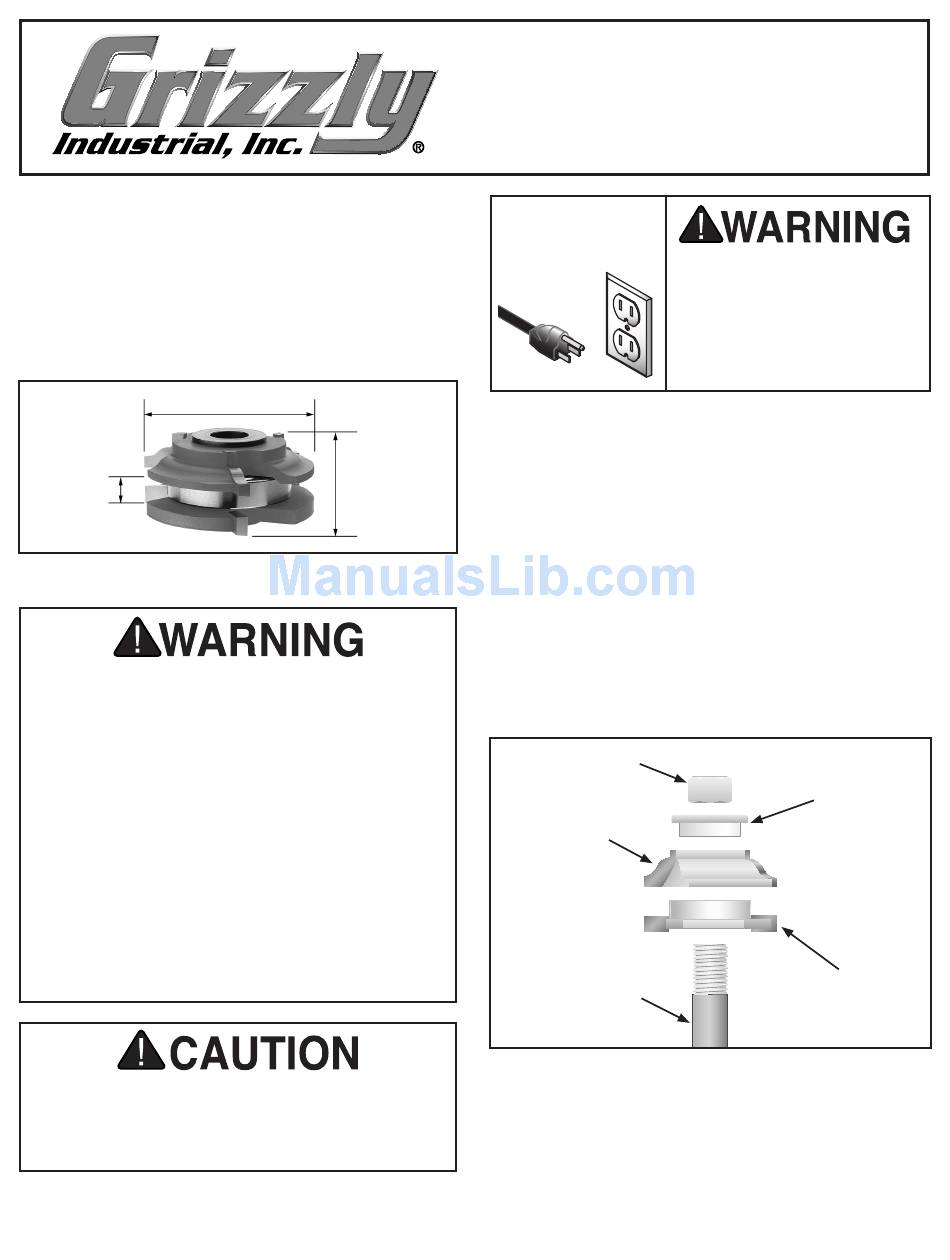

INSTRUCTIONS FOR
C2314-C2317 REVERSIBLE
STILE AND RAIL SET
!
Cutting Rails
For safety and best results, we recommend using
a shaper with adjustable fences and a miter gauge.
These instructions are only intended for setting up
the cutter for counterclockwise rotation.
To cut the rail ends:
1.
UNPLUG THE SHAPER!
2.
Slide the flat cutter, bearing side up, over the
spindle as shown in Figure A.
Spindle Nut
Profile
Cutter
Spindle
Figure A. Set-up for cutting rails.
3.
Place the bushing into the hole in the profile cut-
ter and slide both onto the spindle.
4.
Thread the spindle nut against the bushing and
tighten it with a wrench.
-1-
Always disconnect power
to the machine when set-
ting up or making adjust-
ments. Failure to do this
may result in serious per-
sonal injury.
Bushing
Flat
Cutter
