Bell'O PR-25 Assembly Instructions Manual

Real wood audio video cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

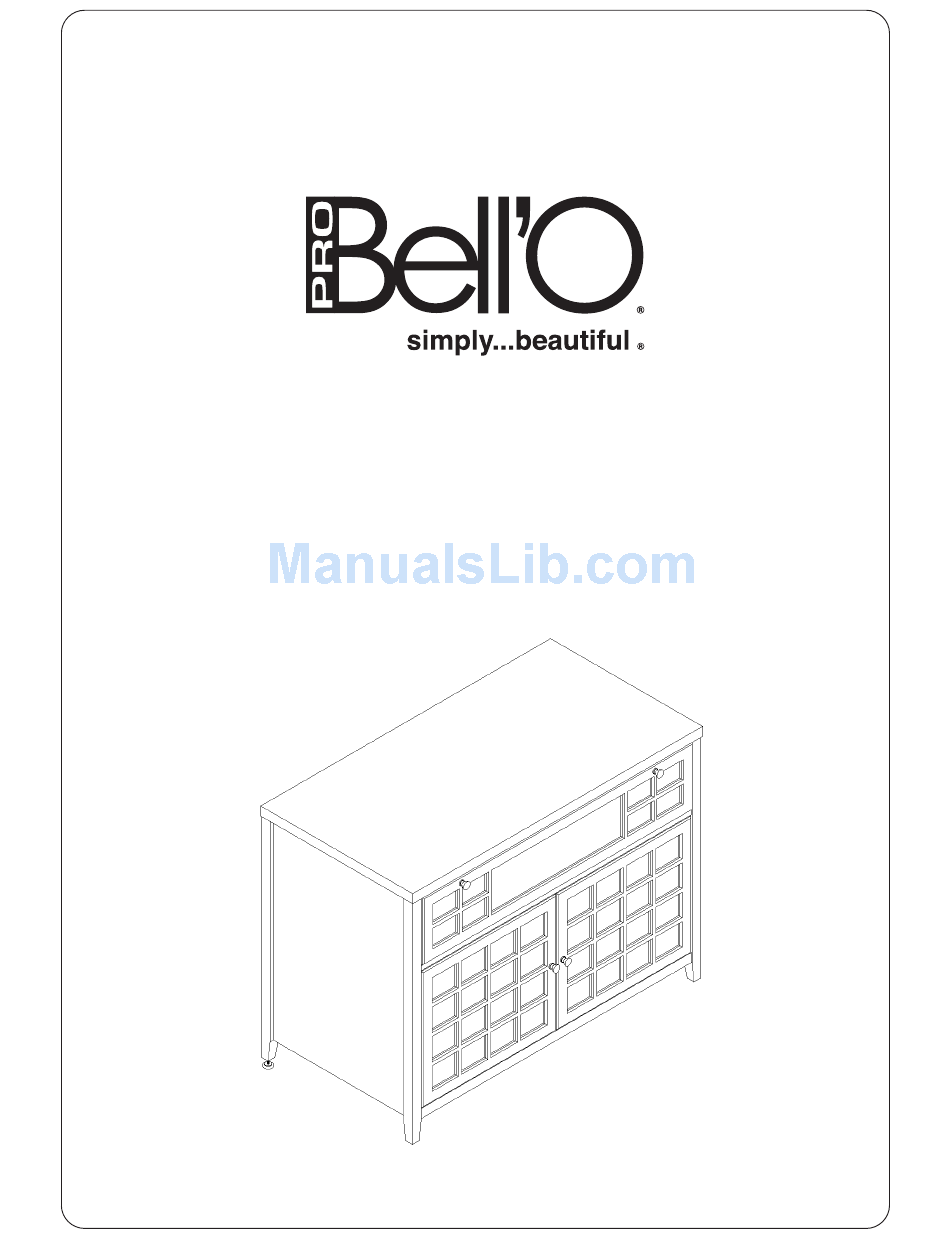

PR-25 Real Wood Audio Video Cabinet
ASSEMBLY INSTRUCTIONS
The real hardwoods used in Bell'O furniture are naturally
beautiful. Some differences in wood grain are desirable
and expected. Please use only high quality wood furniture
polish to care for your cabinet.
Patent Pending

Advertisement

loading
Need help?

Need help?

Do you have a question about the PR-25 and is the answer not in the manual?

Questions and answers

Related Manuals for Bell'O PR-25

Summary of Contents for Bell'O PR-25

  • Page 1 PR-25 Real Wood Audio Video Cabinet ASSEMBLY INSTRUCTIONS The real hardwoods used in Bell'O furniture are naturally beautiful. Some differences in wood grain are desirable and expected. Please use only high quality wood furniture polish to care for your cabinet.

  • Page 2: Parts List

    PARTS LIST PART DESCRIPTION QUANTITY A. CABINET TOP 1 PC B. LEFT SIDE SUPPORT PANEL 1 PC C. RIGHT SIDE SUPPORT PANEL 1 PC D. UPPER INTERIOR SHELF 1 PC E. MIDDLE INTERIOR SHELF 1 PC F. BOTTOM SHELF 1 PC G.
  • Page 3 PARTS LIST (Continued) PART DESCRIPTION QUANTITY K1. UPPER BACK PANEL 1 PC K2. LOWER BACK PANEL 1 PC L. LOWER CABINET DOORS 2 PCS 1. CAM LOCK PIN 18 PCS 2. CAM LOCK 18 PCS 3. 30MM DOWEL 32 PCS 4.
  • Page 4 PARTS LIST (Continued) PART DESCRIPTION QUANTITY 8. 05/32" x 22MM SCREW 4 PCS 9. RIGHT DRAWER HINGE 1 PCS 10. HINGE PIN 2 PCS 11. 3.5 X 15MM SCREW 16 PCS 12. LOWER DOOR HINGE 4 PCS 13. LOWER CABINET KNOB 2 PCS 14.
  • Page 5 ASSEMBLY INSTRUCTIONS NOTE: 2 PEOPLE ARE RECOMMENDED TO ASSEMBLE THIS FURNITURE. THIS TABLE IS CONSTRUCTED WITH REAL WOOD VENEER. TO AVOID DAMAGE DURING ASSEMBLY, IT SHOULD BE ASSEMBLED ON A SOFT SURFACE. Fig. 1 1. PLACE the bottom shelf (F) on edge. PLACE four smaller dowels (3) into the holes in the top side of the bottom shelf as shown in Fig.
  • Page 6 Fig. 2 PLACE four larger dowels (5) half way through the lower middle shelf (E), and PLACE the ends of the dowels into the exposed edge of the divider (H) as shown in Fig. 2.
  • Page 7 Fig. 3 PLACE the second divider (H) over the exposed ends of the dowels (5) on the opposite side of the lower middle shelf (E) with the FRONT arrow facing the front of the shelf (the edge without the cut out slots) as shown in Fig. 3.
  • Page 8 Fig. 4 4. Place four smaller dowels (3) into the holes on the exposed edge of the divider (H). Place the upper interior shelf (D) onto the dowels as shown.
  • Page 9 Fig. 5 5. PLACE the left cabinet side (B) on a soft surface with the levelling foot facing the rear as shown. A. SCREW two cam lock pins (1) into the upper and center cross frame, and three cam lock pins (1) into the bottom cross frame.
  • Page 10 Fig. 6 6. Placement of the right cabinet side (C): A. SCREW two cam lock pins (1) into the upper and center cross frame, and three cam lock pins (1) into the bottom cross frame. INSERT two smaller dowels (3) into each of the cross frames.
  • Page 11 Fig. 7 7. CAREFULLY TURN the partially assembled cabinet upright. A. SCREW the LEFT drop down door hinge (6) and RIGHT door hinge (9) into the interior sides of the cabinet using the small Philips head screws (4). NOTE: THE DOOR TENSION ON THE HINGES CAN BE ADJUSTED BY TURNING THE KNOB LOCATED ON THE HINGE.
  • Page 12 Fig. 8 8. SCREW two cam lock pins (1) into the tops of the cabinet sides (B) and (C). A. PLACE two smaller dowels (3) into the tops of the cabinet sides, and the tops of the dividers (I). B. PLACE two cam locks (2) into the interior of each cabinet side. C.
  • Page 13 Fig. 9 9. Working from the rear of the cabinet, SCREW two rear panels (K1) and (K2) to the cabinet using screws (4). NOTE: THE REAR PANELS ARE MADE TO BE SNUG. DO NOT FORCE OR BEND THE PANELS MORE THAN VERY SLIGHTLY IF NEEDED.
  • Page 14 Fig. 10 Ensure table is level by adjusting rear legs (J). This will also aide in leveling the doors. 10. SCREW the lower door hinges (12) to the interior of the cabinet using screws (11). A. ATTACH the cabinet doors (L) to the hinges (12) using screws (11). B.
  • Page 15 Fig. 11: Aligning the Doors 11. ALIGN the doors by adjusting the screws on the insides of each hinge (11) using the supplied screwdriver tool as shown.
  • Page 16 This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. BELL'O INTERNATIONAL CORPORATION, 711 Ginesi Drive, Morganville, NJ 07751-1235 Phone: (732) 972-1333 Fax: (732) 536-6482 Web: www.bello.com E-mail: sales@bello.com...
