Craftsman 917.273321 Owner's Manual

Craftsman 917.273321 Owner's Manual

26.0 hp electric start 50" mower. automatic garden tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

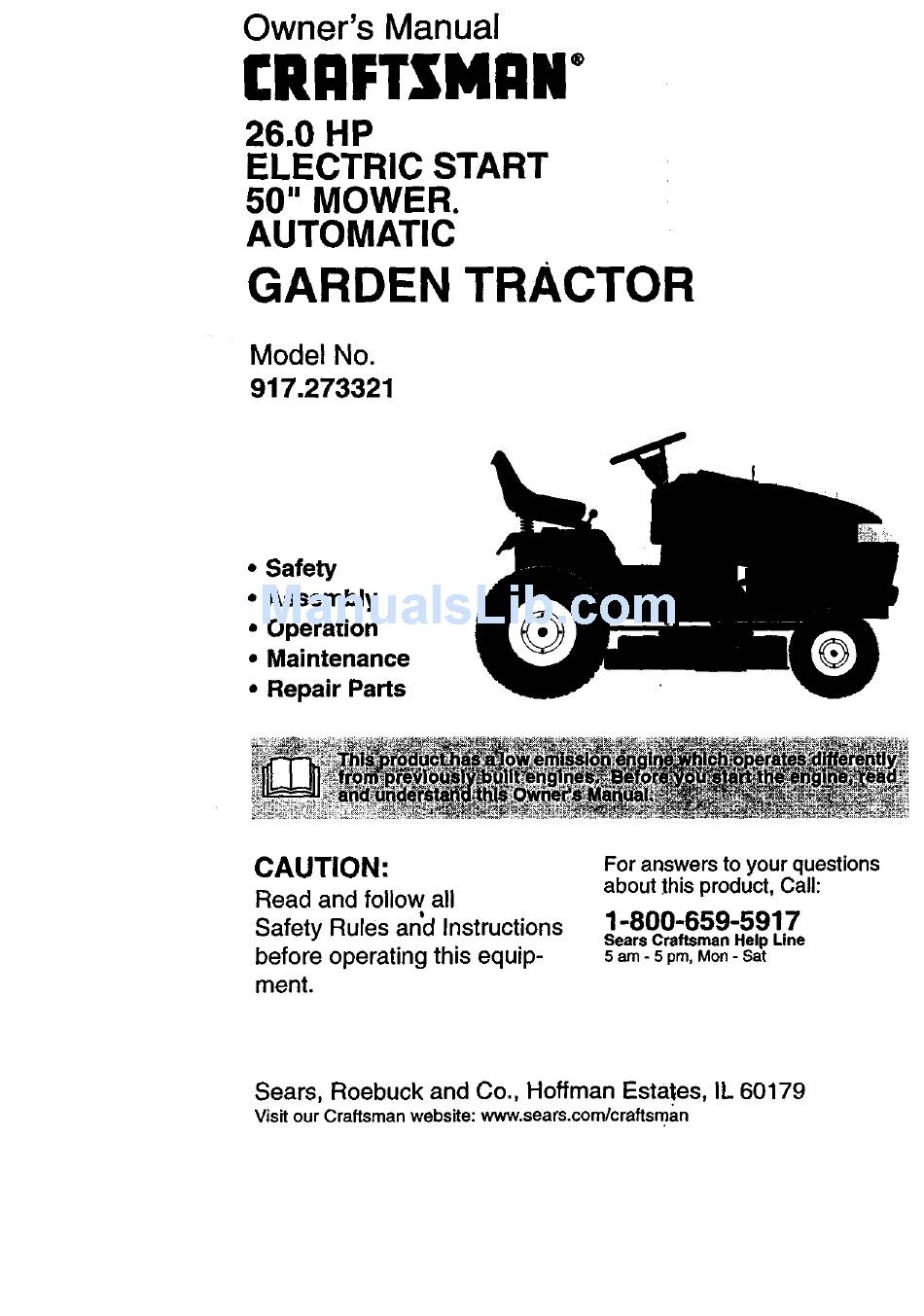

Owner's Manual
CRflFT [MRN*
26.0 HP
ELECTRIC
START
50" MOWER.
AUTOMATIC
GARDEN TRACTOR
Model No.
917.273321
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equip-
ment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Esta.tes, IL 60179
Visit our Craftsman
website:
www.sears.com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.273321 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftsman 917.273321

Summary of Contents for Craftsman 917.273321

  • Page 1 For answers to your questions about this product, Call: Read and follow all 1-800-659-5917 Safety Rules and Instructions Sears Craftsman Help Line before operating this equip- 5 am - 5 pm, Mon - Sat ment. Sears, Roebuck and Co., Hoffman Esta.tes, IL 60179...

  • Page 2: General Operation

    Please contact your nearest service center. After 30 days from the date of purchase, warranty service is available by taking your Craftsman riding equip- ment to your nearest Sears Service Center. (In-home warranty service will still be avail- able after 30 days from the date of purchase but a standard trip charge will apply).

  • Page 3: Slope Operation

    • Do nottry to stabilize the machine by • Tum off blades when not mowing. putting your foot on the ground. • Stop engine before removing grass • Do not use grass catcher on steep catcher or unclogging chute. slopes. •...
  • Page 4 • Nevermakeadjustments or r_paimwith • Mower blades are sharp and can cut. the enginerunning. Wrap the blade(s) or wear gloves, and • Grass catcher components are =_ubject use extra caution when servicing them. • Check brake operation frequently. to wear, damage, and deterioration, Adjust and service as required.

  • Page 5: Maintenance

    A spark arrester for the muffler is available through CONGRATULATIONS on your purchase your nearest Sears Authorized Service of a Craftsman Tractor. It has been Center (See REPAIR PARTS section of this manual). designed, engineered and manufactured to give you the best possible dependability and performance.
  • Page 6 PARTS BAG CONTENTS SHOWN FULL SIZE (11) Shoulder Bolt 5/16-18 (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob (2)_Washers 17/32 x 718x 16 Ga_4 (3) Retainer Springs (Double Loop) (2) Nylon Locknuts 3/8-16 '_IIlllllllllll' (2) Hex Bolts 3/8-16 x 1 (4) Retainer Springs (Single Loop)
  • Page 7 Parts Bag contents not shown full size Parts packet separately in carton Seat Video Steering. Steedng Cassette Sleeve Wheel Insert • <:_ (2) FrontLinkAssemblies Nose Roller (2) Keys Steering Wheel StseringSleeve Extension Nose Roller ._ _9 8ra_kots Parts Bag Manual Slope Sheet (4) Brackets (4) AdjustJrlg...

  • Page 8: Tools Required For Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

  • Page 9: Check Battery

    CHECKBATTERY CHECKTIREPRESSURE The tires on your tractor were overinflated • Lift hood to raised position. at the factory for shipping purposes. • If this battery is put into service after Correct tire pressure is important for best month and year indicated on label (label cutt ng performance.
  • Page 10 TO ATTACH NOSE ROLLER Tab Hole =B" Bracket • Position brackets, 17/32 x 7/8 :_ 16 gauge washers, and nose roller between deck Nose Roller " /" mounting brackets as shown. Be sure to position brackets on correct side, as shown.
  • Page 11 v" CHECKLIST • Place the suspension arms on inward pointing deck pins. If necessary, rock Please review the following checklist: and raise front of mower to align deck All assembly instructions have been pins with the holes in suspension arms. completed.
  • Page 12 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR REVERSE FORWARD FAST SLOW WARNING ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP "_ LIGHT FUEL CHOKE MOWER HEIGHT PARKING BRAKE...
  • Page 13 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Light Switch Position Hourmeter Ignition Switch...

  • Page 14: To Set Parking Brake

    The operationof anytractorcan resultin foreignobjectsthrownintothe eyes,whichcan rest]itin severeeye damage.Alwayswearsafetyglasses eye shields while operating your tractor or performing any adjustments repairs. We recommend a wide vision safety mask over spectacles, or stan- dard safety glasses. • Turn ignition key to "OFF" position HOW TO USE YOUR TRACTOR remove key.
  • Page 15 approximate and may vary depending _,CAUTION: Do not operate the mowe_ upon soil conditions, height of grass and without either the entire grass catcher, on types of grass being mowed. mowers so equipped, or the discharge • The average lawn should be cut to guard in place.

  • Page 16: Towing Carts And Other Attachments

    NOTE: To protect hood from damage IMPORTANT: When operating in tempera- when transporting your tractor on a truck tures below 32°F(0°C), use fresh, clean or a trailer, be sure hood is closed and winter grade gasoline to help insure good secured to tractor.
  • Page 17 WARM WEATHER STARTING (50 ° F PURGE TRANSMISSION AND ABOVE) _CAUTION: Never engage o,'disen- • When engine starts, slowly push choke gage freewheel lever while the engine is control in until the engine begins to run running. smoothly. If the engine starts to run To ensure proper operation and perfor- mance, it is recommended that the trans-...

  • Page 18: Mowing Tips

    MOWING TIPS • If grass is extremely tall, it should be • Tire chains cannot be used w.hen the mowed twice to reduce load and possi- mower housing is attached to;tractor. ble fire hazard from dded clippings. • Mower should be properly leveled for Make first cut relatively high;...

  • Page 19: General Recommendations

    CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE AS YOU COMPLETE _"_.(I_€_ Check Operator PresSr(wce a nd I_edock Systems Check for Loose Fasteners 1#17 t# € Sharpen/Replace Mower Blades Lubrication Chart I# € Check Battery Level Clean Battery and Termin_ds I# # Check Trsnsaxle Cooling Adjust Blade Belt(s) Tension ll_s Adjust Motion Drive Belt(s) Tension...
  • Page 20 TRACTOR IMPORTANT: To ensure proper assembly, center hole in blade must align with star Always observe safety rules when per- on mandrel assembly. forming any maintenance. • Reassemble hex bolt, lock washer and BRAKE OPERATION flat washer in exact order as shown. If tractor requires more than six (6) feet •...
  • Page 21 • Keep battery and terminals clean. • Keep battery bolts tight. • Keep small vent holes open. • Recharge at 6-10 amperes for 1 hour. "F -,10* G" =G" _o' 10G" TIEMPEP_'i_U_ RANGE_ATED klEl(TOil. _ TO CLEAN BATTERY AND TERMINALS Change the oil after every 50 hours of Corrosion and dirt on the battery and ter- operation or at least once a year if the...
  • Page 22 CLEAN AIR INTAKE/COOLING .AREAS NOTE: Do not wash the paper cartridge or use pressurized air, as this will damage To insure proper cooling, make .s'urethe the cartridge. grass screen, cooling fins, and other • Remove nut and cartridge plate. external surfaces of the engine are kept clean at all times.
  • Page 23 CLEANING We do not recommend using a garden hose to clean your tractor unless the elec- trical system, muffler, air filter and carbure of all foreign matter. Clean engine, battery, seat, finish, etc. tor are covered to keep water out, Water Keep finished surfaces and wheels free in engine can result in a shortened engine of all gasoline, oil, etc.
  • Page 24 TO LEVEL MOWER HOUSING. • To raise front of mower housing, loosen nut "H" from trunnion on both front links. Adjust the mower while tractor js parked Tighten nut "G" on both front links an on level ground or driveway. Make sure equal number of turns.
  • Page 25 • Check primary idler arm and two idlers • Install new belt onto electric clutch pul- to see that they rotate freely. ley. • Roll belt into upper groove of left hand • Be sure spring is securely hooked to pri- mandrel pulley.
  • Page 26 Blade Drive Belt Left Hand Mandrel dler Pulley Right Hand Mandrel Secondar Cover Sprin Anti-Sway-BaF Bracket TO ADJUST AI"rACHMENT cLuTcH • Road test tractor for proper stopping distance as stated above. Readjust if The electric clutch should provide years of service.

  • Page 27: Belt Installation

    BELTINSTALLATION NOTE: If for any reason the effort to move the motion control lever becomes • Place V part of belt into grooves on engine pulley and front V-Idler, making too excessive, reverse the above adjust- sure to route belt inside of all belt keep- ment procedure by loosening Iocknut 114 turn, ers.
  • Page 28 The other vehicle must also be a 12 volt negative grounded system. Do not use your tractor battery to start other vehicles. TO ATTACH JUMPER CABLES - • Connect each end of the RED cable to the POSITIVE (+) terminal of each bat- tery, taking care not to short against chassis.
  • Page 29 IMPORTANT: Do not adjust for maximu Keps Nut Hex Bolt Terminal spring tension when using light attach- Access ments such as a mower. Adjust lilt lever Door spring to aid in lifting attachment. Do nol overpower spring. When removing attact ment, always adjust spring tension to its Positive lowest position.
  • Page 30 ENGINE Closed For Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the customers expense, may be performed by any non- road engine repair establishment or indi- vidual. Warranty repairs must be per- formed by an authorized engine,manufac- turer's service outlet.
  • Page 31 Immediately prepare your tractor for stor- Also, expedance indicates that alcohol blended fuels (called gasohol or using age at the end of the season or if the trac- tor will not be used for 30 days or more. ethanol or methanol) can attract moisture which leads to separation and formation of ACAUTION: Never store the tractor with...

  • Page 32: Troubleshooting

    TROUBLESHOOTING CHART CAUSE CORRECTION PROBLEM Will not start • Out of fuel. • Fill fuel tank. • See "TO START ENGINE" in • Engine not =CHOKED" prop- Operation section. erly. • Walt several minutes before • Engine flooded. attempting to start. •...
  • Page 33 TROUBLESHOOTING CHART PROBLEM CAUSE CORRECTION Loss of power • Cuffing too much grass/too • Set In "Higher Cut" posF fast. tion/reduce speed. • Throttle in =CHOKE" position. • Adjust throttle control. • Clean underside of mower hous- • Build-up of grass, leaves and trash under mower.
  • Page 34 TROUBLESHOOTING CHART PROBLEM CORR'ECTION CAUSI_" Mower blades will not • Frozen idler pulley. • Replace idler pulley. • Frozen blade mandrel. rotate (cont'd) • Replace blade mandrel. Poor grass discharge • Engine speed too slow. • Place throttle control in =FAST" position.
  • Page 35 SCHEMATIC TRACTOR . . MODEL NUMBER 917,273320 STARTER...
  • Page 36 TRACTOR - - MODEL NUMBER 917.273321 ELECTRICAL...
  • Page 37 TRACTOR - - MODEL NUMBER 917.273321 ELECTRICAL PART DESCRIPTION 144927 Battery 74760412 Bait Hex Head 1/4-20 x 3/4 7603J • Tray, Battery 145211 BoltWet BTR 1/4-20 x 7.5 Zinc 150109 Hold down Battery FrontMount 145769 Nut Push Nytoo 1/4" Wet Battery 153664 Switch InterlockPush-In 166184...

  • Page 38: Chassis And Enclosures

    TRACTOR - - MODEL NUMBER 917.273321 CHASSIS AND ENCLOSURES ,122 i 1, 47...
  • Page 39 TRACTOR - - MODEL NUMBER 917.273321 CHASSIS AND ENCLOSURES PART PART DESCRIPTION DESCRIPTION 150253 Rail, Fmme*RH 137113 BracketAsm., Fender 17490620 ScrewThdrol 3/8-16 x 1-1/4 140506 Drawbar,Gt 19131614 Washer 13/32 x 1 x 14 Ga. 73800700 Nut, LockHex 7/16Unc 163976 Dash 17490508 Screw, Thd 5/16-18 x 1/2 137159...

  • Page 40: Ground Drive

    TRACTOR - - MODEL NUMBER 917.273321 GROUND DRIVE '®...
  • Page 41 TRACTOR - - MODEL NUMBER 917.273321 GROUND DRIVE PART PART DESCRIPTION DESCRIPTION 7070E Key 1/4 x 2.5 STD541431 Nut, Crownlock5/16-18 7563R Washer, Thrust, Axle 74490548 Bolt Hex Flghd5/16-18 x 3 Gr5 STD541437 Nut, Crownloc_ 3/6-16 142432 Screw Hex Wsh. Hi-Lo 114-1/2 STD561210 Pin, Cotter 140481...

  • Page 42: Steering Assembly

    TRACTOR - . MODEL NUMBER 917.273321 STEERING ASSEMBLY 1313 Is.._...
  • Page 43 TRACTOR - - MODEL NUMBER 917.273321 STEERING ASSEMBLY PART DESCRIPTION Wheel, Steering 159944X428 137094 Axle Asm., Front 6855M Fitting,Grease 161849 Spin91e Asm, LH 161848 SpindleAsm., RH 6266H Beadng, Race Thrust Harden Washer 25/32 x 1-5/8 x 16 Ga. 121748X 12000029 - Ring, Klip #T5304-75 121232X Cap, Spindle...
  • Page 44 TRACTOR - - MODEL NUMBER 917.273321 ENGINE •37 I SPARK ARRESTER KIT I...
  • Page 45 TRACTOR - - MODEL NUMBER 917.273321 ENGINE PART DESCRIPTION Engine (See Breakdown) ..Kohler Model CV26S-69526 150249 • Muffler Side 13200300 ElbowSTD 90 Degree 3/8 - 18 NPT 151396 MufflerAssemblyGuard 121361X PulleyV-Idler 150828 Keeper Asm Belt Engine Vgt 96 105432X Bushing 140923 Clutch Electric...

  • Page 46: Seat Assembly

    TRACTOR - - MODEL NUMBER 917.273321 SEAT ASSEMBLY PART PART DESCRIPTION DESCRIPTION 140124 Seat 72050412 Bolt, Carriage 1/4-20 X 1-1/2 140551 Bracket, Pivot Seat 121249X Spacer, Split 140675 Strap, Fender 123740X Spdng, Cprsn 127018X Bolt, Shoulder 5/16-18 x .62 123976X Nut, Lock 1/4 Lge Fig Gr.

  • Page 47: Wheels And Tires

    Decal, Maintenance 106202X Reflector,Taillight 167176 Decal, RPLC 163223 Decal, Fender Hyd/AutoWhite 164884 Decal, Blower HSNG Decal, Handle LFT HieghtAdj. 163204 Decal, Fender, Craftsman "° 138311 (Lift Handle) 156439 Decal, Fender, Danger Pad Footrest 4900J Decal, Clutch/Brake 157199 Manual, Owner's (Eng)

  • Page 48: Lift Assembly

    TRACTOR - - MODEL NUMBER 917.273321 LIFT ASSEMBLY 35 17...
  • Page 49 TRACTOR - - MODEL NUMBER 917.273321 LIFT ASSEMBLY PART DESCRIPTION 1" 121006X RodAsm., Lever 159187 ShaftAsm., Lift Vgt 159189 LeverAsm., Uft Rh 12000022 • E-Ring Truarc #5133-87 19292016 Washer 29/32x1-1/4x16Ga. 74780624 Bolt,Fin Hex 3/8-16 x 1-1/2 125631X Grip, Handle Fluted 122"365X Button,Plunger 122364X...

  • Page 50: Mower Deck

    TRACTOR -- MODEL NUMBER 917.273321 MOWER DECK...
  • Page 51 TRACTOR - - MODEL NUMBER 917.273321 MOWER DECK PART PART DESCRIPTION DESCRIPTION 15699O Mower Deck Weldment STD541437 Nut, Crownlock 3/6-16 Unc STD541431 Nut, Crownlock 5/16-18 74760628 Boll, Fin Hex 3/8-16 Uncx 1- 138457 BracketAsm., Sway Bar STD624008 Cover, Mandrel RH Retainer,Spring 137200 130832...
  • Page 52 TRACTOR - - MODEL NUMBER 917.273321 HYDRO GEAR TRANSAXLE - - MODEL NUMBER 222-3010L "-...
  • Page 53 TRACTOR - - MODEL NUMBER 917.273321 HYDRO GEAR TRANSAXLE - - MODEL NUMBER 222-3010L PART PART DESCRIPTION DESCRIPTION 164591 Assembly,Housing,LH 153767 Locknut, Hex 5/16-18 164592 Assembly,Housing,RH 142904 Bolt,Hex 5/16-18 x 1-1/2 153765 Oil Seal .984 x 1.5 x .25 142905 Hex Cap Screw 5/16-18 x 1 ShoulderBolt 142876...
  • Page 54 TRACTOR - - MODEL NUMBER 917.273321 TRANSAXLE - PUMP - MODEL NUMBER BU-10L-122...
  • Page 55 TRACTOR - - MODEL NUMBER 917.273321 TRANSAXLE - PUMP - MODEL NUMBER BU-101.-122 PART DESCRIPTION 144569 Shaft, Pump 122716X Ring, Retaining 122745X Beadng, Bell 122715X Spacer 122700X • Seal, Lip 122699X Ring, Retaining 122767X Bearing, Cradle 122717X Seal, Up 122748X Arm, Trunnion 122749X Guide, Slot...
  • Page 56 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 CYLINDER HEAD VALVE & BREATHER I 15._, J--%l 0--8 _--14...
  • Page 57 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 CYUNDER/ItEADNALVE/BREATHER CRANKCASE PART • PART DESCRIPTION DESCRIPTION 24-033-03 Kit, breather cover w/gasket' 24-032-01 Seal, oilfront (Includes 2,3) Crankcase (USE: Miniblock) 24-041-23 Gasket, breather 24-294-13 Fitting 24-096-15 Cover, breather 12-380-17 Pin, dowel locating(6) M-0645020...
  • Page 58 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 BLOWER HOUSING AND BAFFLES I IGNITION I ELECTRICAL...
  • Page 59 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 IGNITION/ELECTRICAL BLOWER HOUSING & BAFFLES PART PART DESCRIPTION DESCRIPTION 54-755-15 Kit, grass screen 54-027-95 Housing,blower (Includes 2-4,and 24 113 18) (Incl. M-0545010 & 24 063 36) M-0403025 24-100-02 Screw, hex.
  • Page 60 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 STARTING SYSTEM ENGINE CONTROLS 0" I$-_o--_15 t¢ j 121-- " 3 " --t3 t0--_ °-_1-' i-. e :)IL PAN LU BRICATION...
  • Page 61 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 STARTING SYSTEM OIL PAN/LUBRICATION PART PART DESCRIPTION DESCRIPTJON 12-098-03 Starter, solenoidshift M-0645025 Screw, hex. flange M6x1.0x25 M-0839080 Screw, hex. flange M8x1.24x80 M-0631005 Washer, plain 6 mm (2) M-0841080 Nut, hex.

  • Page 62: Fuel System

    TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 CRANKSHAFT EXHAUST I 2--q FUEL SYSTEM...
  • Page 63 TRACTOR - - MODEL NUMBER 917.273321 KOHLER ENGINE-MODEL NUMBER CV26S, TYPE NUMBER 69526 CRANKSHAFT FUEL SYSTEM PART PART DESCRIPTI(_N DESCRIPTION 24-014-72 Crankshaft (Includes 2) 24-853-27 . Kit, carburetorw/gaskets 52-139-09 Plug, cup (Includes2-6) 24-041-15 Gasket, carburetor 24-053-27 Carburetorassembly EXHAUST (For informationonlynot availableseparately) PART (Includes24 234 02...
  • Page 67 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL SIGHTING -_ ..CUT GUIDE TH" _ greater than 15 °) never across the face. Make turns gradu- J ally to prevent tipping or loss of control. Exercise extreme Operate your Tractor up and down the face of slopes (not caution when changing direction on slopes.
  • Page 68 For in-home major brand repair service: Call 24 hours a day, 7 days a week 1.-800-4..MY-_H 0 M EsM (1-800-469-4663) Para pedir servicio de reparaci6n a domicilio 1-800-676-5811 In Canada for all your service and parts needs call Au Canada pour tout ]e service ou les pi_ces 1-800-865-4455 For the repair or replacement parts you need: Call 6 _m-11pm CST, 7 days a week...
