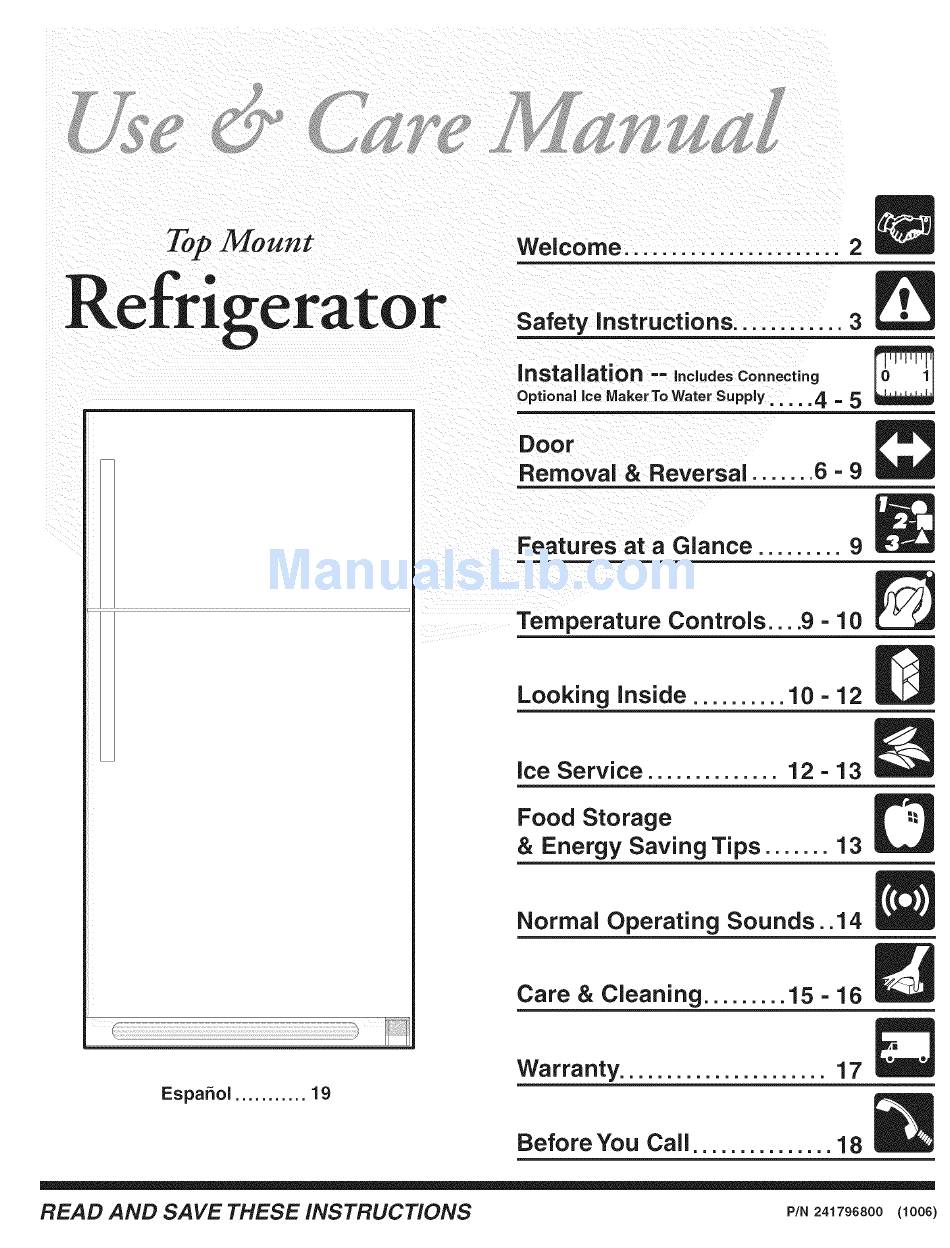

- Page 1 Top Mount Welcome ....... ® Safety Instructio s .... Installation =- _ncludea Connecting Optional Ice MakerTo Water Supply ..Door Removal & Reversal ..6 -9 Features at a Glance ..Temperature Controls ..9 - 10 Looking Inside ..10 - 12 Ice Service ....
- Page 2 Questions? Congratulations on your purchase of a new refrigerator! We here at Electrolux Home Products, Inc. are very proud of our 1-800-944-9044 product and we are completly committed to providing you with the best service possible. Your satisfaction is our #1 priority. (United States) Please read this Use &...
- Page 3 PROPER DISPOSAL OFYOUR REFRIGERATOR OR FREEZER Risk of child entrapment Child entrapment suffocation are not problems of FORYOUR SAFETY the past. Junked or abondoned • Do not store or use gasoline, or other flammable liquids refrigerators or freezers are still in the vicinity of this or any other appliance.
- Page 4 ThisUse&Care Manual provides specific o perating LEVELING instructions foryourmodel. Use therefrigerator only as All four corners of your refrigerator must rest firmly on a solid instructed inthisUse &Care Manual. Before starting the floor. Your refrigerator is equipped with adjustable front rollers refrigerator, follow these important firststeps.
- Page 5 To Connect Water Supply Line To ice Maker Inlet Valve Disconnect refrigerator from electric power source. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve. Unscrew plastic cap from water valve inlet and discard cap.
- Page 6 DoorStop Handle So ..Tools Necessary: KnifePUtly Center :Hinge Su_vv H nge _crew Phillips head Quadrex head Socket Adjustable screwdriver Wrench Wrench DOOR REMOVAL AND REVERSAL INSTRUCTIONS: Top Hinge Cabinet Hole Plugs Handle Hole Hinge Hole PUug Remove toe grille. Remove top hinge with 3/8"...
- Page 7 TO REMOVE FREEZER HANDLE: (Handles may be easier to reverse while doors are off.) Remove two screws attaching handle to bottom of freezer door. Swing bottom of handle away from the door and slide handle straight up and off of dovetail button. TO REMOVE FREEZER HANDLE:...
- Page 8 TO ATTACH TRIM: TO REMOVE REFRIGERATOR HANDLE: Slide both trim locks out of trim. (Handles may be easier to reverse while doors are off.) Insert new adhesive trim locks contained in your literature Figure 1 Style Handles pack. Remove two screws attaching handle to top of refrigerator door.
- Page 9 To Remove Handles Remove bottom hinge. Reinsert two outside screws in holes and tighten. Firmly hold freezer handle while loosening set screws Reverse steps 1 - 6 to reinstall doors with 3/32" allen wrench. Remove freezer handle. Repeat step 1 for refrigerator door. ice Maker_ ice Bucket Fixed Door Bin...
- Page 10 Recommended o°" ..o ..Freezer Control (some models Refrigerator & Freezer Control (some models) Refrigerator Control (some models) TEMPERATURE ADJUSTMENT GUIDE If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder. If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
- Page 11 ADJUSTABLE DOOR BiNS To adjust cantilever shelves: Some models have adjustable door bins that can be moved to suit individual needs. To move door bins Lift bin straight up. Remove bin. Place bin in desired Lift front edge up. position. Pull shelf out.
- Page 12 HUMiDiTY C ONTROL DELl DRAWER (SOME (SOME MODELS) MODELS) TheHumidity Control, Some models are equipped aumidity_ present onsome models with a Deli Drawer for storage withcrisper drawers, allows of luncheon meats, spreads, youtoadjust thehumidity High cheeses, and other deli items. Humidit, within thecrisper.
- Page 13 • Wash the ice container in warm water with mild detergent. Rinse well and dry. • Stop the ice maker when cleaning the freezer and during vacations. • If the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position.
- Page 14 UNDERSTANDINGTHE SOUNDSYOU MAY HEAR A. Evaporator The flow of refrigerant through the evaporator Your new high-efficiency refrigerator may make unfamiliar sounds. These are all normal sounds and soon will become create a boiling or gurgling sound. familiar to you. They also indicate your refrigerator is operating B.
- Page 15 Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use any type of scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher.
- Page 16 NEVER CLEAN CONDENSER (SOME MODELS) Ifyourrefrigerator equipped with a Defrost Avoid cuts when replacing light bulbs, Never Clean Wate condenser, there's no need to clean the condenser under normal operating conditions. If the refrigerator is operated under particularly dusty or greasy conditions, or if there is significant Defrost Water Pan (some models)
- Page 17 Yourappliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained accordance...
- Page 18 ATTENTION Properly Install Your Refrigerator "Installation" Section On Pages 4-5 To Reverse The Doors "Door Removal & Reversal" Section On Pages 6-9 Before calling for service, review this list. It may save you time and expense. This Common list includes common occurrences that are not the result of defective workmanship Occurrences or materials in this appliance.
