Craftsman 917.388592 Owner's Manual

5.5 horsepower 21" rear discharge rotary lawn mower
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Owner's
Manual

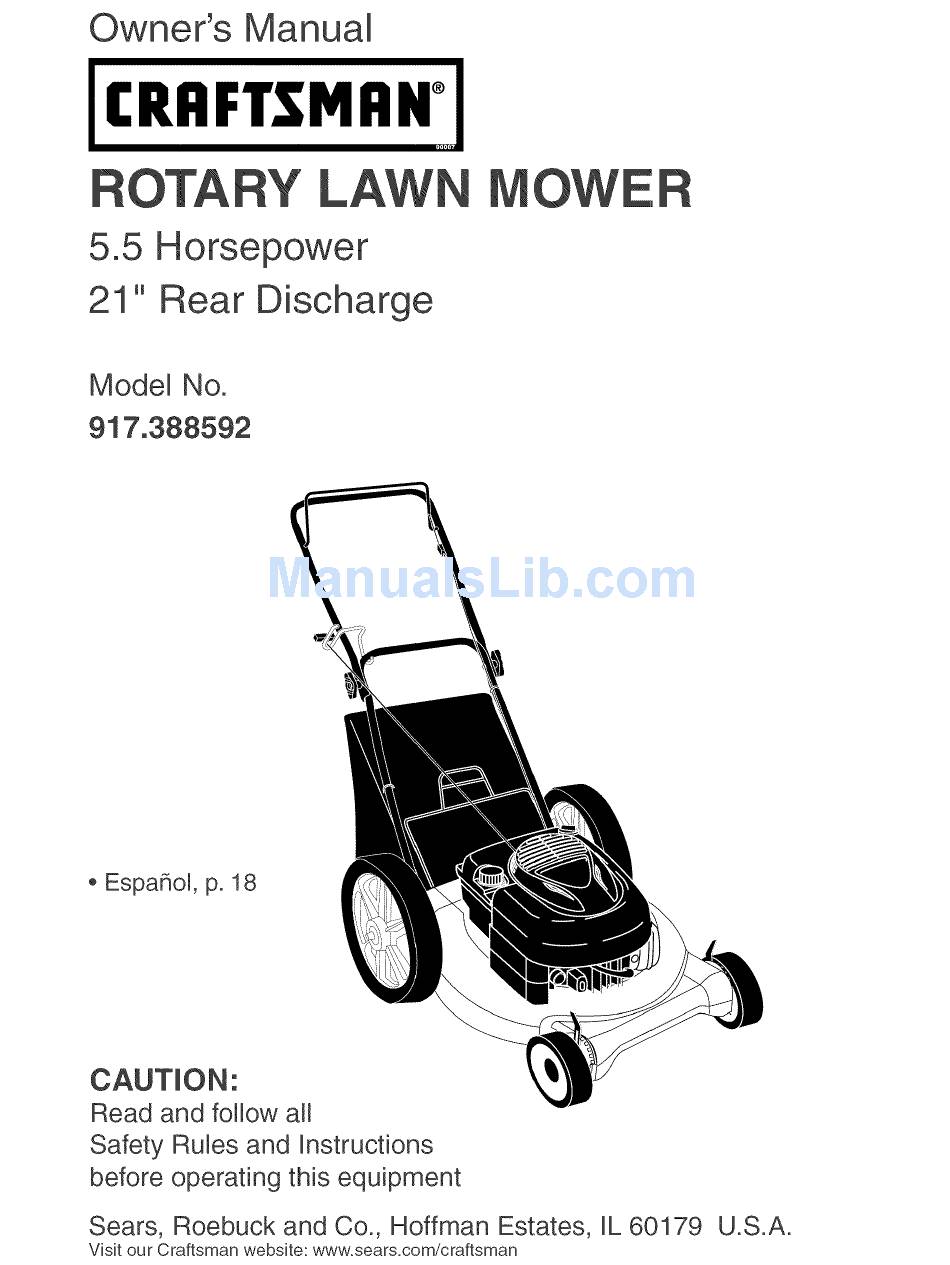

CRIIFTSMRH °
,I,I
5.5 Horsepower
21" Rear Discharge
Model No.
917.388592
Espahol, p. 18
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.
