NuTone LA-205WH Installation & Operating Instructions

Two-Note Wireless Chime
MODEL: LA-205WH
MOUNTING THE PUSHBUTTON
TRANSMITTER

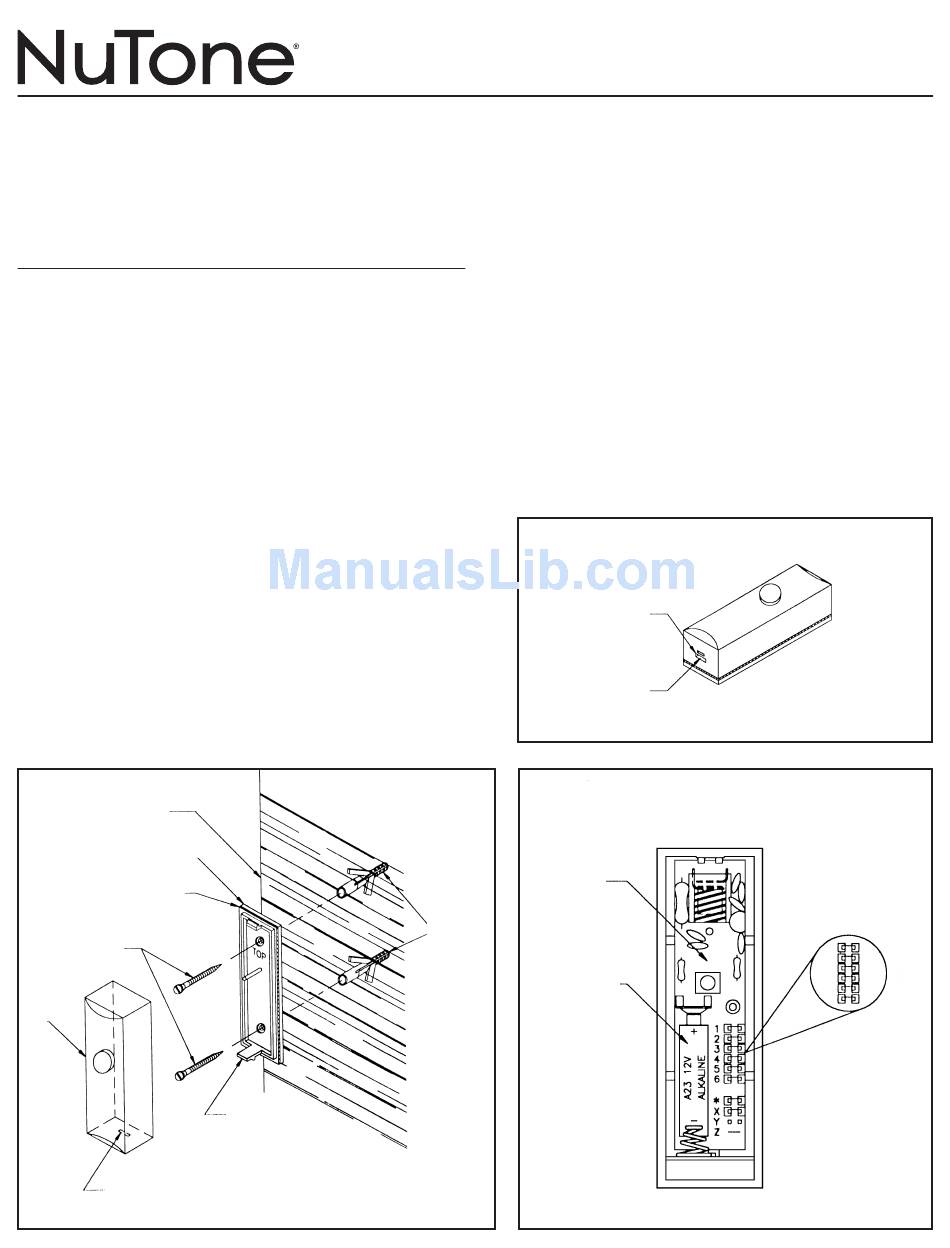

Refer to Figures 1 and 2.
1. Locate the Transmitter next to or near the door. Do not mount the
transmitter on a metal surface. Caution: Some stucco houses
have metal mesh in the wall structure which will affect the
wireless chime performance. Experiment with various positions
of receiver with respect to the pushbutton to determine the
location that gives best performance before mounting
permanently. If not satisfied, use a wired chime.
2. Remove the Transmitter cover by inserting the tip of a screwdriver in
the slot at the bottom of the Transmitter and then gently rock the
Transmitter cover apart from the Transmitter base.
3. Choose a level place to locate the Transmitter base.
4. Position the Transmitter base, and mark the mounting surface with a
pencil through the two holes in the Transmitter.
5. Drill two ⁄ " diameter holes at the previously marked area.
3
1 6
6. Insert the plastic anchors into the
7. Place Transmitter base over anchors, and fasten with two screws
provided. Do not replace cover at this time.
8. Apply a small amount of caulking to the mounting screw holes on the
base for waterproofing.
TRANSMITTER SECURITY CODING
Refer to Figure 3.
It is not necessary to change the security code of the Transmitter
unless you experience interference from other wireless devices.
WOODEN WALL OR
DOOR FRAME
BASE
WATERPROOF
GASKET
MOUNTING
SCREWS
COVER
SLOT
3 ⁄ " diameter holes.
1 6
LIP
DO NOT MOUNT ON
METAL SURFACE
INSTALLATION & OPERATING INSTRUCTIONS
1. To change the security code, remove any combination of the six plastic
jumper straps.
2. NOTE: Both the Transmitter and Receiver codes must match.
BATTERY INSTALLATION
Refer to Figure 3.
1. Position the A23 12 volt battery
as illustrated. Be sure to observe polarity (+/–). For replacement
battery, use EverReady
INSTALLING TRANSMITTER COVER
1. Position the Transmitter cover over the Transmitter base so that the
"lip" on the base engages into the "slot" on the cover. Make sure the
rubber gasket is properly seated. Firmly press cover until it snap fits
over the base.
TO OPEN
COVER "PUSH"
P.C. BOARD
PLASTIC
WALL
ANCHORS
BATTERY
LOCATION
FIGURE 2
READ & SAVE THESE INSTRUCTIONS!
® A23BP or Duracell ®
SLOT
TOP
MN21B (or equivalent).
FIGURE 1
SECURITY CODE
SETTING
FIGURE 3
