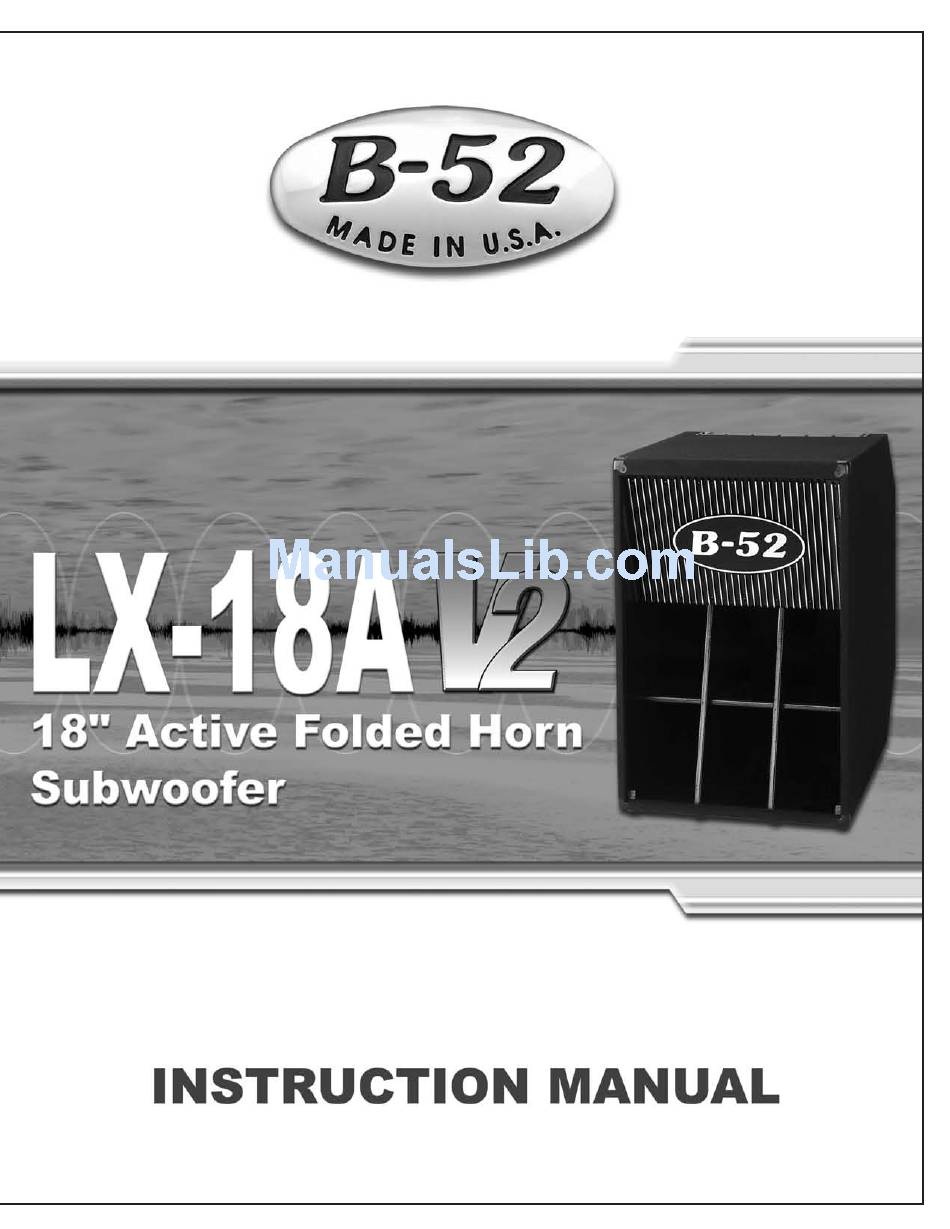

Summary of Contents for B-52 LX-18A V2
-
Page 2: Important Safety Information
XLR Balanced Inputs. XLR Balanced Full-Range Outputs XLR Balanced (120 Hz) High-Pass Outputs. 0–180 Degree Phase Switch. Neutrik Speaker Output. Full Thermal & Short Circuit Protection. Signal Sensing On/Off Circuitry. CABINET FEATURES: Void-free 7-layered plywood Construction. Rugged black carpet finish 4”... - Page 3 Authorized dealer. Service is required when the LX-18A V2 has had liquid spilled on or inside the subwoofer, objects have fallen onto the speaker or it has been damaged in any way, the speaker has been exposed to rain or moisture, does not operate normally or has been dropped.
-
Page 4: Panel Controls
18) External Speaker On/Off Switch: Turns Speakon NL-4 connector (and external subwoofer) on and off. When only using the LX-18A V2, turn this switch off. When an external, non-powered subwoofer (LX-18 V2) is connected, turn this switch on. - Page 5 External Speaker Neutrik Pins: 1 + or 2 + = (+) 1 - or 2 - = (-) Sub-Out B 52 Digital Amplifier LX-18AV2 Designed by ETI Sound Systems / B-52 Pro Audio, Huntington Park, CA Model: LX-18A. May be covered by one or more patents pending.
- Page 6 B 52 B-52 LX-18A (As well as the LX-18V2 - Passive 18” subwoofer) Audio Input External High-Pass Full-Range Level Speaker Protection Phase Neutrik Pins: 1 + or 2 + = (+) 1 - or 2 - = (-) Power Sub-Out Outputs...
-
Page 7: Warranty Information
B-52 LX-18A Thank you for choosing this B-52 Pro-Audio sound product. B-52 manufactures some of the world’s best sounding and most reliable professional speaker systems and components. E.T.I. Sound Systems, Inc., manufacturers of B-52, takes great pride in thoroughly testing each B-52 product prior to shipment. Please read the warranty terms and conditions below and carefully read the provided Limited Warranty Card for additional terms and conditions. - Page 8 E.T.I. SOUND SYSTEMS, INC. 3383 Gage Avenue, Huntington Park, CA, 90255 Phone: 323-277-4100 Fax: 323-277-4108 National: 1-800-344-4ETI Internet: www.B-52PRO.com E-mail: info@B-52PRO.com...
