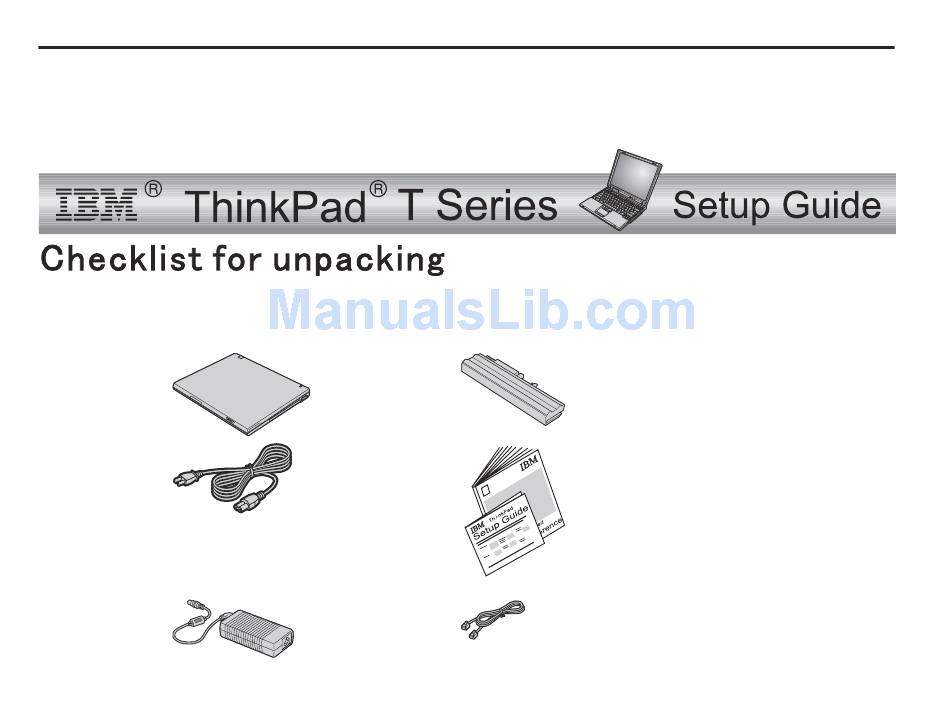

Thank you for purchasing the IBM ThinkPad T Series computer. Match the items on this list with the items in the box. If any item is
missing or damaged, please contact your place of purchase.
h Computer
h Power cord
h AC adapter
© Copyright IBM Corp. 2002
h Battery pack
h Books:
v Setup Guide
v Service and
Troubleshooting
Guide
v Manual package
®
for Microsoft
®
Windows
h Telephone cable
Part Number: 92P1476
Notes:
1. Some models may contain additional
items that are not listed.
2. For some models, a diskette drive is
included in the package.
3. Your computer features IBM
Disk-to-Disk recovery. Everything
needed to recover factory-installed files
and applications is on your hard disk.
Disk-to-Disk recovery eliminates the
need for a Recovery CD. For more
information, see "Recovering
preinstalled software" in the Service
and Troubleshooting Guide.
1
Advertisement
Related Manuals for Lenovo ThinkPad T40
Summary of Contents for Lenovo ThinkPad T40
- Page 1 Part Number: 92P1476 Thank you for purchasing the IBM ThinkPad T Series computer. Match the items on this list with the items in the box. If any item is missing or damaged, please contact your place of purchase. h Computer h Battery pack Notes: 1.
-
Page 2: Setting Up Your Computer
Setting up your computer 1. Installing the battery. a) Align the side of the battery with the front side of the battery compartment, then gently push the battery into the compartment. b) Slide the battery latches to the locked position. 2. - Page 3 3. Turning on the system. a) Open the computer display. Press the latches 1 and open the display 2 . Then position the display so that it is convenient for viewing. b) Press the power switch 1 . ™ 4. Using the UltraNav ®...
- Page 4 Using the volume control. You can adjust the sound level of the built-in speakers by using the following three buttons: Volume down Volume up Mute If you mute the sound and then turn off your computer, the sound will remain muted when you turn on your computer again. To turn on the sound, press the Volume up or Volume down button.
-
Page 5: Installing Memory
Installing memory Increasing memory capacity is an effective way to make programs run faster. You can increase the amount of memory in your computer by installing a PC2100 double data rate (DDR) synchronous dynamic random access memory (DRAM) unbuffered small outline dual inline memory module (SO-DIMM), available as an option, in the memory slot on the bottom of the computer. - Page 6 If the SO-DIMM is already in the memory slot, remove it to make room for the new one by pressing out on the latches on both edges of the socket at the same time. Be sure to save it for future use. 5.
- Page 7 To make sure that the SO-DIMM is installed correctly, do as follows: 1. Turn the computer on. 2. While the “To interrupt normal startup, press the blue Access IBM button” message is displayed at the lower-left of the screen, press the Access IBM button. 3.
- Page 8 Trademarks Your name: _________________________ The following terms are trademarks of the IBM Corporation in the United States or other countries or both: Company name: _________________________ Model number: ThinkPad _________________________ Serial number: TrackPoint _________________________ UltraNav Company or reseller service: _________________________ Microsoft and Windows are trademarks of Microsoft Corporation in the United States and/or other countries.
