5. Attach bracket by hand tightening the large
nut to the threaded back of the bracket. (5)
EasySelect ®
6. Hose Attachment: Hand tighten
Showerhead
hose end to bracket and handle. Do
not use pliers, wrench, or pipe tape
Pomme de douche to connect hose ends to showerhead
Waterpik ® EasySelect
® or bracket.
Cabezal de ducha
®
Waterpik EasySelect ®
Instruction Manual
7. If showerhead or bracket becomes
Manuel d'instructions
loose during use, re-tighten large nut as
described above.
Manual de instrucciones
FN 20011364-F AG
Note: Drawings may not match your product. Remarque: Les illustrations peuvent ne pas
correspondre a´votre produit. Nota: Es posible que los dibujos no coincidan con su producto.

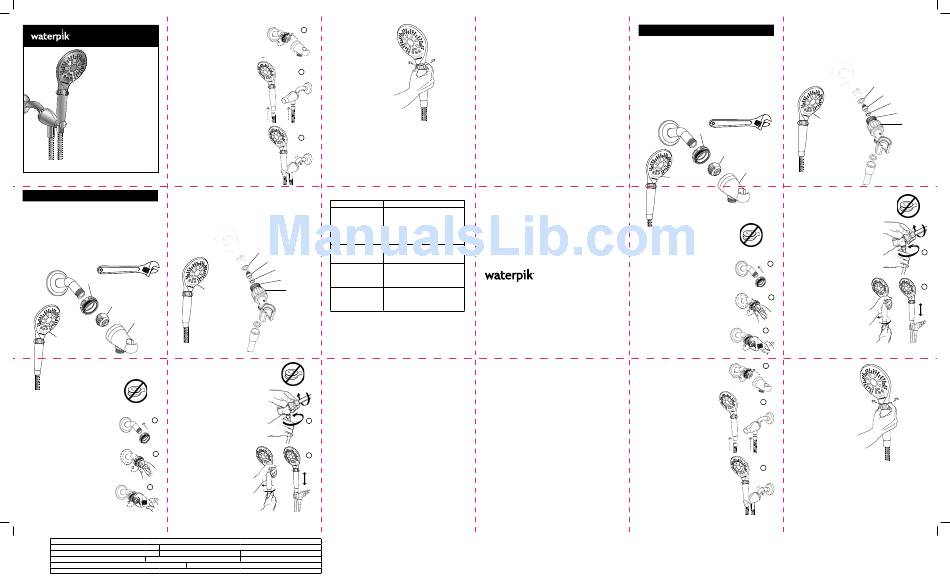

COMPONENTS
ENGLISH
(Front Entry Bracket, some models)
Thank you for purchasing this Waterpik ® EasySelect ® brand
Showerhead, and welcome to a new level of showering enjoyment! Your showerhead comes with the respective hardware set
shown below.
Since we invented the massaging showerhead in 1974, we've been
constantly working to improve the showering experience for our
customer. Our latest generation shower technology delivers both pure
relaxation and rejuvenation with the selection at your finger tips.
COMPONENTS
(Side Entry Bracket, some models)
Your showerhead comes with the respective hardware set
shown below.
Adjustable Wrench
Large Nut
(not included)
Pivot Ball
Showerhead
Bracket
Hand Held
Showerhead
INSTALLATION
(Front Entry Bracket)
1. Remove old showerhead.
INSTALLATION
(Side Entry Bracket)
2. Slightly loosen nut on bracket assembly and
position hose connection downward. Tighten
1. Remove old showerhead.
pivot ball to pipe. Ensure nut is secure by
3
2. Remove large nut from EasySelect ® bracket and
hand tightening. (2)
remove pivot ball.
NOTE: This nut and bracket have a left handed
thread. The large nut tightens when turned
clockwise as viewed from the front of the
bracket. 4A
3. Hand tighten hose end to bracket
3. Place large nut over shower pipe (narrow end
and handle. Do not use pliers or
toward wall).(3 )
wrench to connect hose ends to
showerhead or bracket. (3)
4. Thread pivot ball onto shower pipe and hand
4B
tighten clockwise to a snug fit. (4A) Use an
adjustable wrench or pliers to tighten an
additional ¼ turn. (4B)
IMPORTANT: Do not over tighten.
DATE: 30 June 2010 CLIENT: Water Pik, Inc.
FILENAME: FN20011364-FAG_LAR-LAOInst.indd DESCRIPTION: EasySelect LAR/LAO Showerhead Instruction Manual
FILE TYPE: Adobe InDesign CS4 PREPARED BY: Brian Colon
SIZE FLAT: 20.4" x 11.25" SIZE FOLDED: 3.4" x 3.8125"
DIELINE: N/A INK: Black
NOTES: No embedded color profile.
OPERATION
5
Turn spray selector on handle
in either direction to control
spray pattern.
6
Waterpik brand showerheads are equipped with an OptiFLOW
®
tor that limits maximum water flow to 2.5 gallons per minute at 80 psi as
mandated by U.S. federal law.
7
The flow regulator may be removed for cleaning debris to improve water
flow in the showerhead. To remove, unscrew filter screen from pivot ball
by turning counterclockwise. Remove regulator with needle-nose pliers
and replace filter screen.
Troubleshooting Guide
Problem
No water flow from installed
shower head:
Low water pressure or
Washer
missing spray patterns
Filter Screen
Flow Leaking at pipe pivot ball
Regulator
connection:
Pivot Ball
Hand Held
Nut
Showerhead and/or bracket
Showerhead
stiff to change angle
CARE AND CLEANING
• Clean filter screen at least once a year or whenever you notice a drop
in water pressure. To clean, remove bracket from large nut. Remove
the pivot ball from the shower pipe and gently brush the filter screen,
located in the pivot ball. You can also back flush the filter screen by
holding the pivot ball under a running faucet with the small end (non-
threaded) up in the water stream. To replace showerhead, follow steps
2-4 of installation.
• To clean mineral deposits, gently rub the rubber nozzles on the face of
2
the showerhead to dislodge. For deeper cleaning, remove showerhead
and place in 1-1½ cups of white vinegar for 2-3 hours. Reattach
showerhead and run in all modes for 1-2 minutes to clean out vinegar.
Vacuum Breaker (some models)
Vacuum breakers are required on hand-held showers in the State of
3
Wisconsin and the City and County of Los Angeles, California, by plumbing
code in order to protect water supplies from potential back-flow.
The vacuum breaker (located within the bracket or hose) may discharge a
small amount of water when you turn on your shower. It will also drain a
small amount of water when you turn off your shower. Both are normal
operative conditions.
FORM: 20011364-F AG
FOLDS: Indicated
LIMITED LIFETIME WARRANTY
Water Pik, Inc. warrants to the original purchaser of this product that
it is free from defects in material and workmanship for as long as the
original purchaser owns this product. Water Pik, Inc. will replace any
part of the product which in our opinion is defective, provided that the
product has not been abused, misused, altered or damaged after pur-
chase. (This includes damage due to use of tools or harsh chemicals.)
In the event an item has been discontinued we will replace with what
we deem to be the closest product. Water Pik, Inc. is not responsible
for labor charges, installation, or other consequential cost. The respon-
sibility of Water Pik, Inc. shall not exceed the original purchase price of
the product. This warranty gives you specific legal rights. You may also
have other rights that vary where you reside. Save your receipt as proof
of purchase is required for warranty action.
Have any questions or need assistance?
In the U.S., call our toll-free Outside the U.S., write us at:
regula-
®
Customer Assistance Line, Water Pik, Inc
1-800-525-2774.
1730 East Prospect Road
Fort Collins, CO 80553-0001 USA
If in Canada call our toll-free
Customer Assistance Line, www.waterpik.com
1-888-226-3042
If product malfunctions or becomes damaged, stop use and contact
Water Pik, Inc. for replacement.
Waterpik ® (stylized) is a trademark of Water Pik, Inc. registered in the EU,
Switzerland, Mexico, Canada, and United States.
Solution
Waterpik ® is a trademark of Water Pik, Inc. registered in Argentina, Australia,
Austria, Canada, China, Czech Republic, Hungary, India, Japan, Poland, Russian
a Confirm previous shower washer is not in
Federation, South Africa, Switzerland, Ukraine, and the United States.
the j-pipe.
OptiFlow ® is a trademark of Water Pik, Inc. registered in Australia, Canada, the EU,
b Confirm the hose is properly installed, try
Hong Kong, Korea and the United States.
switching ends.
Medallion is a trademark of Water Pik, Inc., registered in Australia, the EU, and
®
c Confirm there is only one washer in the the United States.
pivot ball.
EasySelect ® is a trademark of Water Pik, Inc. registered in Australia, the EU,
Mexico and the United States.
a Clean shower head in vinegar/water
Treat yourself better ™ is a trademark of Water Pik, Inc.
solution. (See care section).
© 2010 Water Pik, Inc.
b Clean screen and flow regulator.
Printed in China.
a Confirm one single washer is seated on
top of the screen.
b Grate bar of soap across the j-pipe
threads to act as a sealant.
Water Pik, Inc.
a Immerse pivot ball and large nut of the 1730 East Prospect Road
bracket in hot water or use a blow dryer
Fort Collins, CO 80553-0001 U.S.A.
for several minutes and then use a towel
www.waterpik.com
