Jenn-Air JCD2591WES00 Parts List
Hide thumbs Also See for JCD2591WES00:

Advertisement

CABINET PARTS
REFRIGERATOR
For Models: JCD2591WES00
(Stainless)
3−09 Printed In U.S.A. (jdc)(bay)
Part No. W10259852 Rev. A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCD2591WES00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jenn-Air JCD2591WES00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: JCD2591WES00 (Stainless) 3−09 Printed In U.S.A. (jdc)(bay) Part No. W10259852 Rev. A...

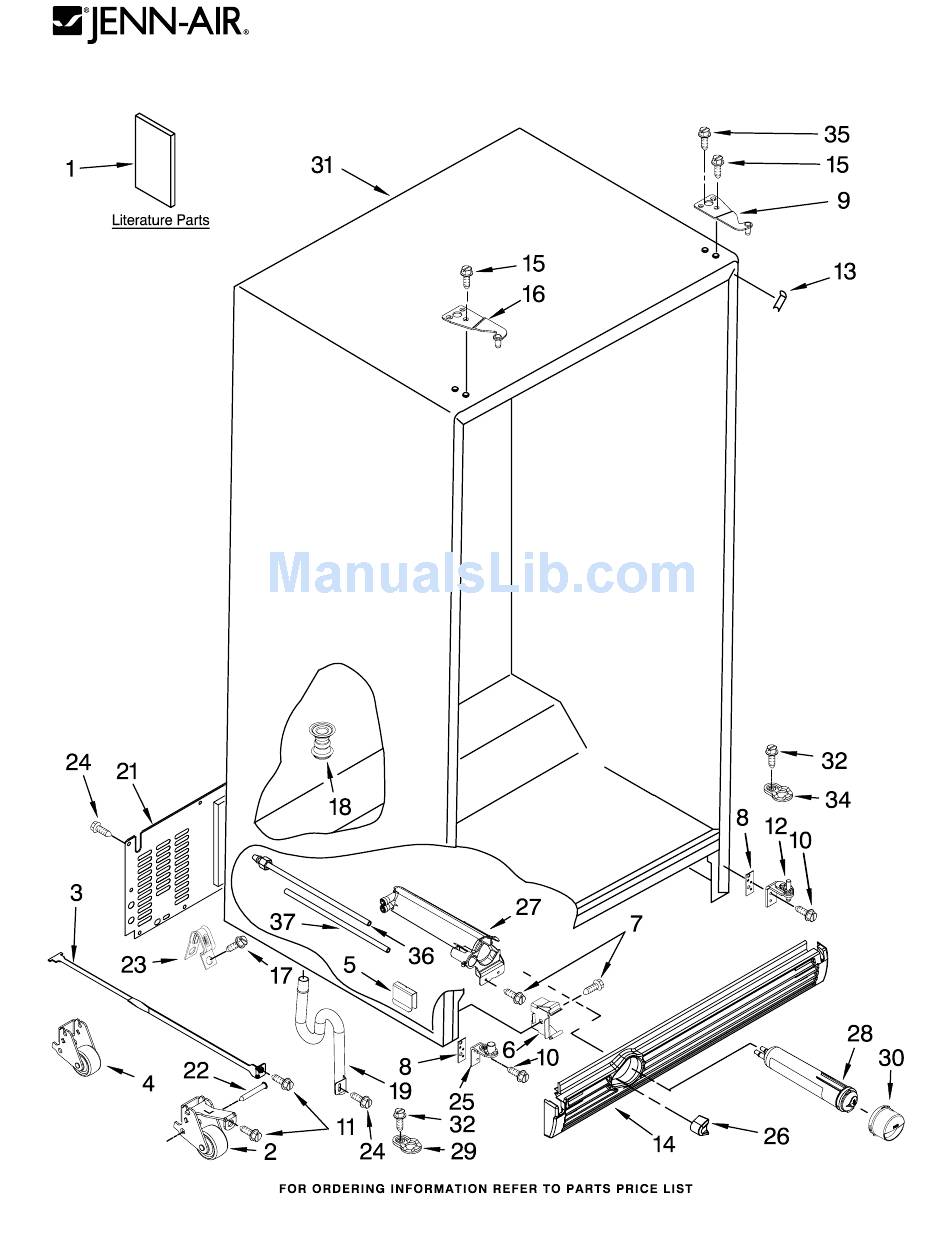

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: JCD2591WES00 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 3400113 Screw 2307152 Hinge Assembly, W10203274 Use & Care Guide 3400243 Screw Bottom−FC W10152832 Service & Wiring 2307179 Hinge Assembly, Button, Water Sheet Bottom−RC Filter 2318510 Installation...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw 9 W10162918 Slide, Door Control 2171846 Release Valve...
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION 1 W10163053 Shelf Assembly, Cantilever (3) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 6 W10163047 Snack Pan (Includes 30 &...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 6 FREEZER LINER PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2224053 Basket, Front 2196483 Stud Assembly 2223691 Basket, Deep (2) (Includes #3) 8 W10191952 Screw 2223500 Shelf Assembly, Cantilever (2) Shelf Track 2223787 Right Side 2223788 Left Side 2254615 Shelf, Fixed...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION 1 W10139482 Ice Bin 2 W10205004 Crusher Bin 3 W10140642 Auger 2258220 Washer 1119007 Spacer, Flat (4) 6 W10139321 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10173220SA Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 12945201 Stud, Handle Door Gasket, Magnetic 2326341 Apollo Grey Handle Assy 12850925 Stainless 2223879 Dairy Compartment 11 W10160454 Screw 2307048 Door Closer, Upper Cam...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 12 FREEZER DOOR PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10236446 Stainless Handle Assy 12850924 Stainless 12945201 Stud, Handle 4 W10160454 Screw 3400012 Screw 2223559K Shelf Bin (3) Door Gasket, Magnetic 2326340 Apollo Grey 2310226 Wire Assy, Door 2308091 Thimble, Top 2307050 Door Closer,...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 14 DISPENSER FRONT PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 5 W10184813 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4) 10 W10187441 Spigot 2305456 Seperator Assembly 2303843 Electronic Control (Core) Pad, Water...
  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) 2223986 Fan Grommet (2) 11 W10129813 Harness, Fan...
  • Page 16: Control Parts

    CONTROL PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION 1 W10205000 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10259852...
  • Page 17: Unit Parts

    UNIT PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 18 UNIT PARTS For Models: JCD2591WES00 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10142231 Screw 2188874 Fan, Motor Following Parts Not Illustrated 2 W10139483 Fan, Blade 2223398 Tray, Evaporator and Optional Parts Not Included 3 W10131059 Condenser 2224022 Heat Shield Assembly 27 W10177049 Drier...
  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: JCD2591WES00 (Stainless) W10259852...
  • Page 20 ICEMAKER PARTS For Models: JCD2591WES00 (Stainless) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 2313394 Shield, Water Valve 5 W10001260 Screw 2319734 Water Valve Asm 2208136 Tube Clip 2174358 Cover 9 W10141625 Screw 10 W10122527 Mold & Heater Assembly (Also Order 542638 2304969 Cup, Water Fill...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: JCD2591WES00 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, PRESSURIZED SPRAY ACCESSORIES (12 oz.) Previous Architect 799340 Black Series Handle Kit 350942 Primer, White 799344 White 8201803 White 350939 Black 8171358 Graphite 8201804 Biscuit...
