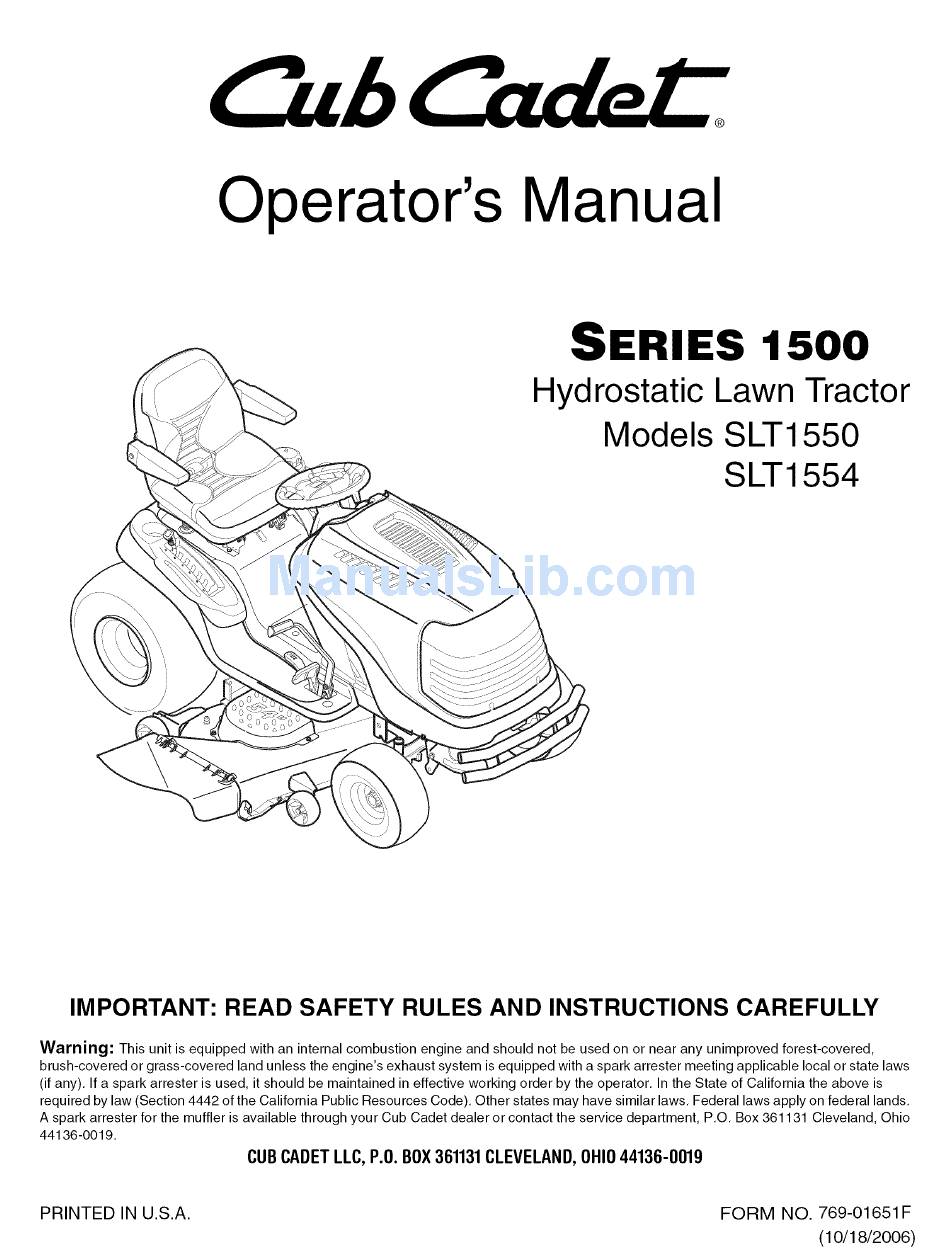

Operator's Manual
SERIES
1500
Hydrostatic
Models
Lawn Tractor
SLT1550
SLT1554
IMPORTANT:
READ SAFETY
RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion
engine and should not be used on or near any unimproved
forest-covered,
brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable
local or state laws
(if any), If a spark arrester is used, it should be maintained in effective working order by the operator, In the State of California the above is
required by law (Section 4442 of the California Public Resources Code), Other states may have similar laws, Federal laws apply on federal lands,
A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department,
P,O, Box 361131 Cleveland, Ohio
44136-0019,
CUBCADETLLC, P.O. BOX361131CLEVELAND, O HIO44136-0019
PRINTED IN U.S.A.
FORM
NO. 769-01651F
(10/18/2006)

Advertisement

Table of Contents
loading

Related Manuals for Cub Cadet SLT1550

Summary of Contents for Cub Cadet SLT1550

  • Page 1 (Section 4442 of the California Public Resources Code), Other states may have similar laws, Federal laws apply on federal lands, A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department,...

  • Page 2: Table Of Contents

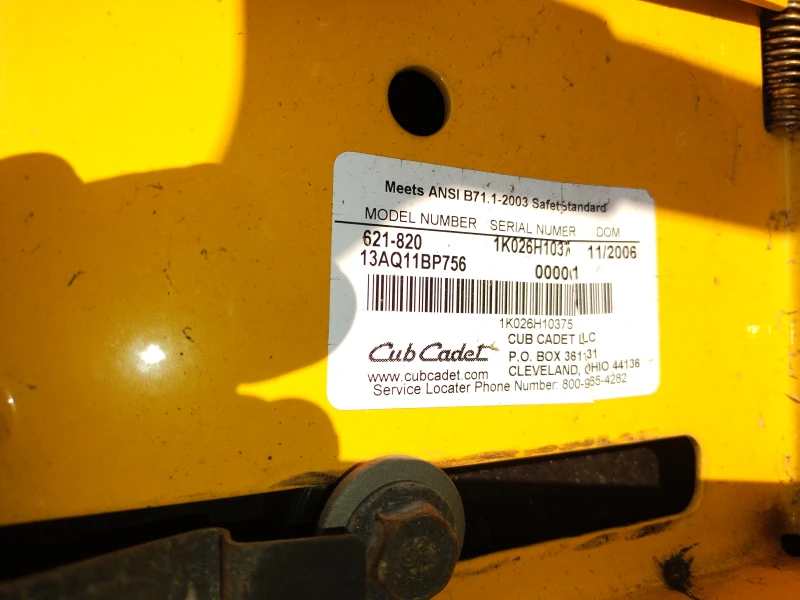

    A sample model plate is also illustrated below. You can locate the model plate by looking at the underside of the tractor's seat. This information will be necessary when contacting the Cub Cadet Care Networkor your Cub Cadet dealer. Copy the model number here:...
