¢40DEL NO.
917.372260
4.0 RESERVE POWER

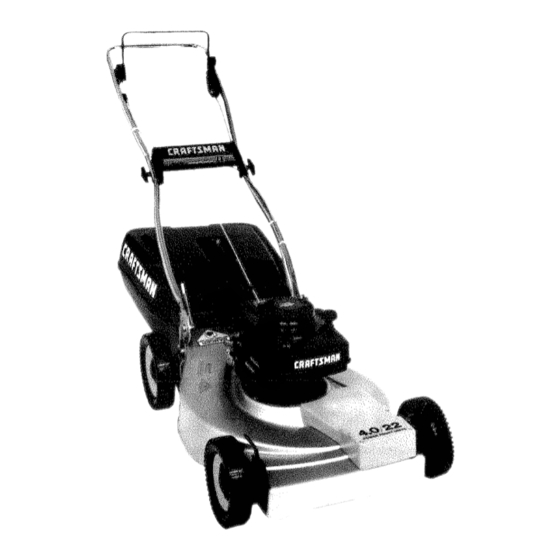

22" POWER-PROPELLED
LA WN M 0 WER
THIS MOWER
COMPLIES
WITH
CPSC REGULATIONS
EFFECT|VE
JUNE 30, 1982,
TO START
THE ENGLNE tT tS NECESSARY
TO DEPRESS
THE CONTROL
BAR WHEN
STANDING
BEHIND
THE MOWER,
BEFORE
PULLING
ON THE STARTER
ROPE,
FOR FURTHER
STARTING
DETAILS
SEE PAGE
8 OF THIS
MANUAL,
SEARS,
ROEBUCK
AND CO., CHICAGO,
IL 60684
U.S.A.
_ART NO.
87867
REV.
2 4!5/88
