LG W1943SB User Manual

LG W1943SB User Manual

Hide thumbs Also See for W1943SB:

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual

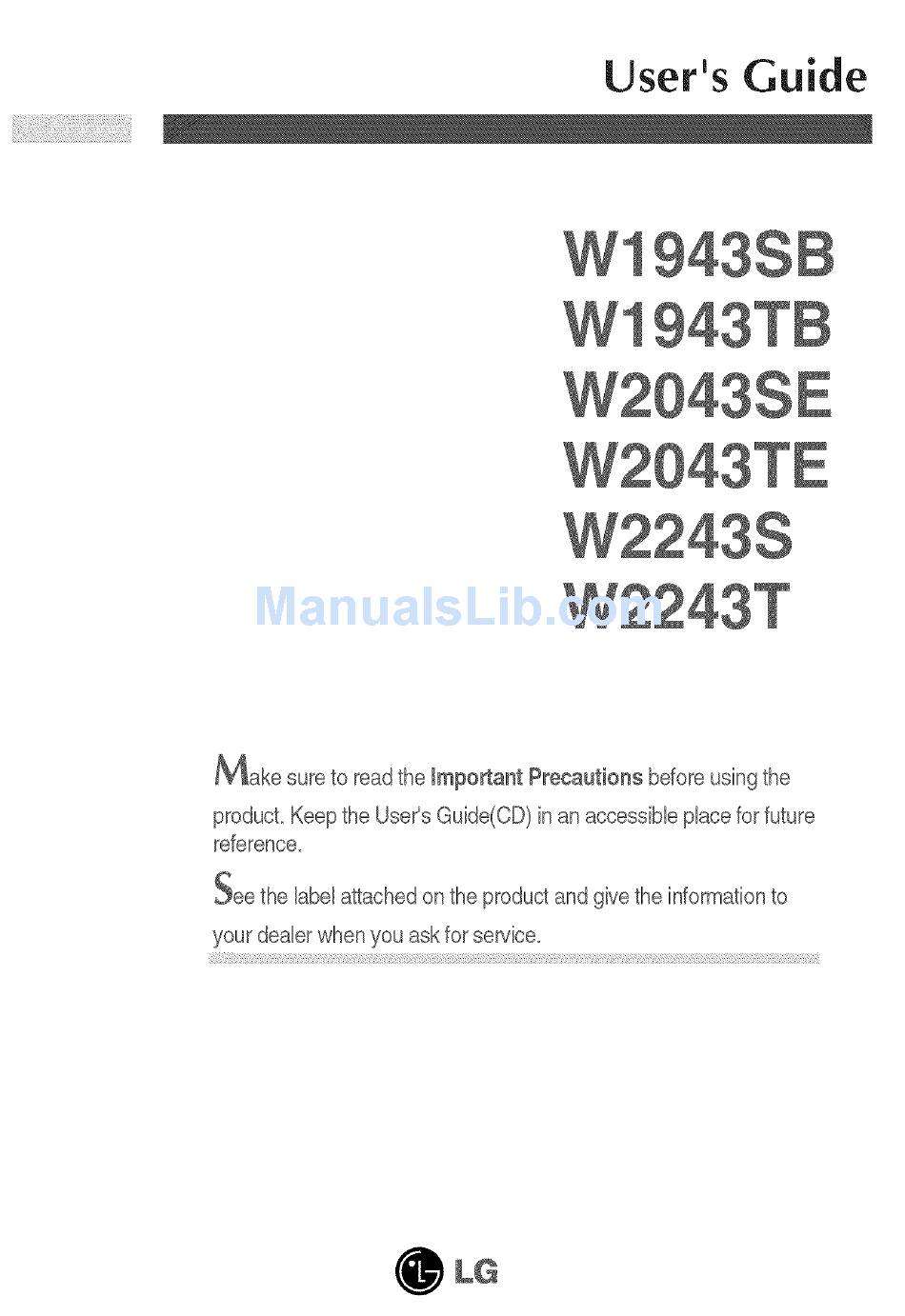

User's Guide
E
_V_akesureto read the [mpo_ant Precautions beforeusingthe
product.Keep the User'sGuide(CD)in an accessibleplacefor future
reference.
See the label attachedon the product and give the informationto
your dealer whenyou ask for seMce.
i

Advertisement

loading
Need help?

Need help?

Do you have a question about the W1943SB and is the answer not in the manual?

Questions and answers

Related Manuals for LG W1943SB

Summary of Contents for LG W1943SB

  • Page 1 User's Guide _V_akesureto read the [mpo_ant Precautions beforeusingthe product.Keep the User'sGuide(CD)in an accessibleplacefor future reference. See the label attachedon the product and give the informationto your dealer whenyou ask for seMce.
  • Page 2 This unit has been engineered and manufactured to ensure your personal safety_ however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servidng.
  • Page 3 On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage, Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool,...
  • Page 4 On Cleaning [] Unplug the display before cleaning the face of the display screen, [] Use a slightly damp (not wet) cloth, Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock, [] When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching, Do not clean with a wet cloth or spray water or other liquids directly onto the product, An electric shock may occur, (Do not use chemicals such as benzene, paint thinners or alcohol)
  • Page 5 !!! Thankfor seleding LG£ produds !!! [] Please make sure the following items are included with your monitor, if any items are missing, contact your dealer. Power Cord User's Guide/Cards (Dependingon the country) DVI-D Signal Cable 15-pin D-Sub Signal Cable...
  • Page 6 [] Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices are turned off. Connectingand Disassembling the stand 1, Place the monitor face down on the soft cloth. 2, Assemble the Stand Base into the Stand Body in the correct direction. Stand Stand Base Turn the Stand Base Lock through 90°...
  • Page 7 5, Turn the Stand Base Lock through 90 ° to separate the Stand Base from the Stand Body. <Unlocked> If you can't release the Stand Base even the Locking Knob is at a release position, Please push the indicated knob down and retry it. LockingKnob 6, Pull out the Stand Base to remove.

  • Page 8: Positioning Your Display

    [] Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display -After installation, adjust the angle as shown below. 1, Adjust the position of the panel in various ways for maximum comfort. [] Tilt Range "-5°-15 °...

  • Page 9: Connecting With The Pc

    Connecting with the PC 1, Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. 2, Connect signal input cable @ and power cord O in order, then tighten the screw of the signal cable.
  • Page 10 Connecting with the PC 1, Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. 2, Connect signal input cable @ and power cord @ in order, then tighten the screw of the signal cable.
  • Page 11 Front Pane_ Controls W1943TB/W2043TE/W2243T W1943SB/W2043SE/W2243S Button Use this button to enter 4:3 IN WIDE, PHOTO EFFECT menus. For more information,refer to page 14. MENU Button Use this button to enter or exit the On Screen Display. OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed.

  • Page 12: Auto Image Adjustment

    • & Buttons Use these buttons to select or adjust functions in the On Screen Display. Use this function to select optimal image conditions in JCENGINE • accordance with the surrounding environment (Brightness, Image type). For more information, refer to page 15. When two input signals are connected, you can select the SOURCE •...
  • Page 13 Screen Adjus men Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls.
  • Page 14 The following table indicates all the On Screen Display control, adjustment, and setting menus, • : Analog i nput o nly NORMAL GAUSSIAN BLUR SEPIA MONOCHROME MOVIE INTERNET USER NORMAL DEMO B qIGHTNESS CONTRAST GAMMA _iiii PRESET (sRGB/6500K/9300K) GREEN BLUE HORIZONTAL *VERTICAL *CLOCK...
  • Page 15 The following OSD screen will appear when you press the FUN button on the front of the monitor. [] MENU Exit [] • • : Move [] SET :Select 4:3 IN WIDE To select the image size of the screen. •...
  • Page 16 _,_The following OSD screen will appear when you press the ..f.ENGINE button on the front of the monitor.This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc). = MENU : Save & Exit Sub-menu [] •, •...
  • Page 17 You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 18 PICTURE BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA Set your own gamma value. : -50 / 0 / 50 On the monitor, high gamma values display whitish images and low gamma values display blackish images.
  • Page 19 TRACKING HORIZONTAL To move image left and right. VERTICAL To move image up and down. To minimize any vertical bars or CLOCK stripes visible on the screen background. The horizontal screen size will also change. To adjust the focus of the display. PHASE This item allows you to remove any horizontal noise and clear or sharpen...
  • Page 20 SETUP W1943SB/W2043SE!W2243S LANGUAGE To choose the language in which the control names are displayed. To adjust position of the OSD window POSITION on the screen. WHITE If the output of the video card is BALANCE different the required specifications, the color level may deteriorate due to video signal distortion.
  • Page 21 Check the following before calling for service. @is the power cord of the • Checkand see ifthe powercord isconnected display connected? properlyto the poweroutlet. Press the Powerbutton. @is the power indicator light on? @is the power on and the Adjust the brightnessand the contrast. power indicator red? @is the power indicator •...
  • Page 22 @Display Position is +Pressthe AUTO/SETbutton to automatically incorrect. adjustyour display imageto the idealsetting. tf the resultsare unsatisfactory,adjustthe image positionusingthe H position and V position icon in the on screen display. @On the screen +Pressthe AUTO/SET button to automatically adjustyour display imageto the idealsetting. background, vertical tf the resultsare unsatisfactory,decreasethe bars or stripes are...
  • Page 23 @The screen color is • Checkif the signal cableis properlyconnected mono or abnorrnal. and usea screwdriverto fastenif necessary. Make surethe video card is properlyinsertedin the slot. Setthe colorsetting higherthan 24 bits (truecolor) at Control Panel- Settings. @The screen blinks. Checkif the screen is set to interlacemode and if yes, change itto the recommendresolution.
  • Page 24 18.51 inches (47.01 cm} Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 47.01 cm 0.30 x 0.30 mm (Pixel pitch) Horizontal Freq. 30 - 61 kHz (Automatic) Vertical Freq. 56 -75 Hz (Automatic) Input Form Separate Sync. SOG (Sync On Green), Digital Signal Input 15 pin D-Sub Connector...
  • Page 25 18.51 inches (47.01 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 47.01 cm 0.30 x 0.30 mrn [Pixel pitch) Horizontal Freq. 30 - 61 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate Sync. SOG (Sync On Green) Signal Input 15 pin D-Sub Connector...
  • Page 26 20.0 inches/50.8 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 50.8 cm 0.2768 x 0.2766 mm (Pixel pitch) Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form SeDarate Sync. SOG (Sync On Green), Digital 15 pin D-Sub Connector Signal Input...
  • Page 27 20.0 inches (50.8 cm) Flat Panel Active matrix-TFT LCD AntFGlare coating Visible diagonal size : 50.8 cm 0.2766 x 0.2766 mm (Pixel pitch) Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate Sync. SOG (Sync On Green} Signal Input 15 pin D-Sub Connector...
  • Page 28 21.53 nches (54.686 cm) Flat Panel Active matrix-TFT LCD AntFGlare coating Visible diagonal size : 54.686 cm 0.248 x 0.248 mm (Pixel pitch) Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate Sync. SOG (Sync On Green], Digital Signal Input 15 pin D-Sub Connector...
  • Page 29 21.53 inches (54.686 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 54.686 cm 0.248 x 0.248 mm (Pixel pitch) Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate Sync. SOG (Sync On Green) Signal Input 15 pin D-Sub Connector...

  • Page 30: Preset Modes (Resolution)

    PresetModes (Resolution) W1943SB/W1943TB 720 x 400 31.468 640 x 480 31.469 VESA 640 x 480 37.500 VESA 800 x 600 37.879 VESA 800 x 600 46.875 832 x 624 49.725 VESA 1024 x 768 48.363 VESA 1024x 768 60,123 VESA 1360x 768 47.712 W2043SE/W2043TE...
  • Page 31 W2243S/W2243T 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 VESA 800 x 600 37.879 VESA 800 x 600 46.875 VESA 1024 x 768 48.363 VESA 1024 x 768 60,123 VESA 1152 x 864 67.500 VESA 1280 x 1024 63.981 VESA 1280 x 1024...
  • Page 32 This monitor satisfies the specifications of the Wall mount plate or the interchange device. 1, Place the monitor face down on the soft cloth. 2, Turn the Stand Base Lock through 90 ° to separate the Stand Base from the Stand Body.
  • Page 33 Wall mount plate. Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased. LG recommends that wall mounting be performed by a qualified professional installer. Kensington Security Slot Connected to a locking cable that can be purchased separately at most computer stores.
  • Page 34 D[gffa[[y yours oooooooo...
