Related Manuals for KitchenAid KIRD802XSS2
Summary of Contents for KitchenAid KIRD802XSS2

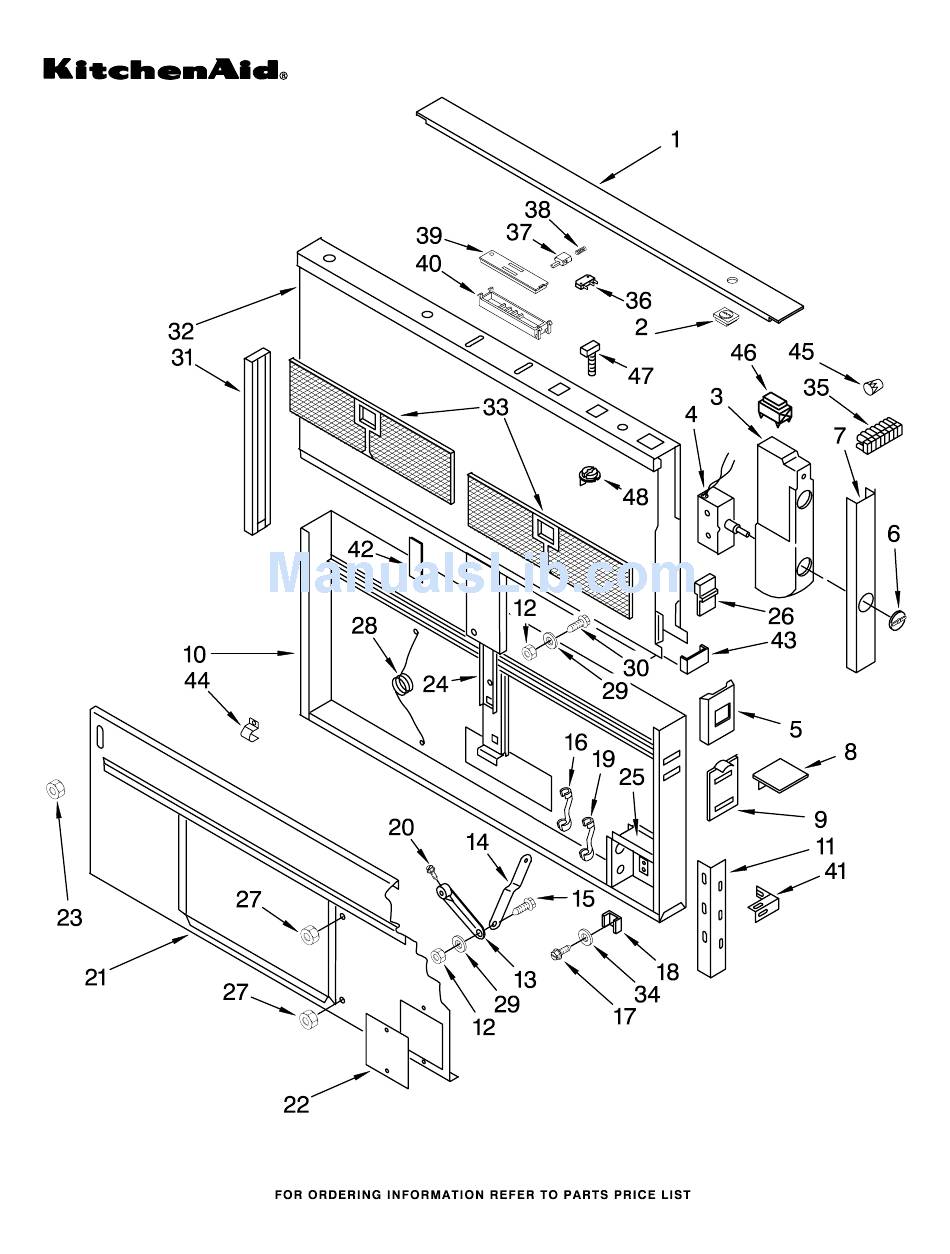

- Page 1 HOUSING AND CONTROL PARTS 30" AND 36" RETRACTABLE DOWN DRAFT For Models: KIRD802XSS2, KIRD862XSS2 VENT SYSTEM Part No. 4174506 (jcn) 3−95 Litho In U.S.A.
- Page 2 EXTERIOR VENTILATION PARTS For Models: KIRD802XSS2, KIRD862XSS2 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Power Unit 4173416 Impeller OPTIONAL PARTS NOT INCLUDED 4173456 Plate, Adaptor Complete (With Damper) Model KPED890T 4360205 Trim Kit−White Housing, 4173296 Roof Mounting Kit (KIRD802) (Non−Serviceable) (Dome cover...
- Page 3 HOUSING AND CONTROL PARTS For Models: KIRD802XSS2, KIRD862XSS2 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4360146 Nut 4360167 Spring (2) Cover, 4360147 Strain Relief 4360168 Cover, Switch (2) Controls (Top) 4360148 Screw 4360169 Housing, Switch (2) 4360130 KIRD802 Cover, Housing Support 4360131 KIRD862...
