CleanSweep
Source Expander Switch for your automotive sound system.
This product
This product has been designed and manufactured to exacting standards
This product has been designed and manufactured to exacting standards
in order to ensure years of musical enjoyment in your vehicle.
coverage, we highly recommend that you have your CL-SES installed by
an authorized JL Audio dealer. Your authorized dealer has the training,
expertise and installation equipment to ensure optimum performance
from this product without compromising your vehicle's functionality.
Due to the complexity of modern vehicle systems we do not recommend
self-installation unless you have extensive experience in
If you have any questions regarding the instructions in this
manual or any aspect of the product's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
source expander switch

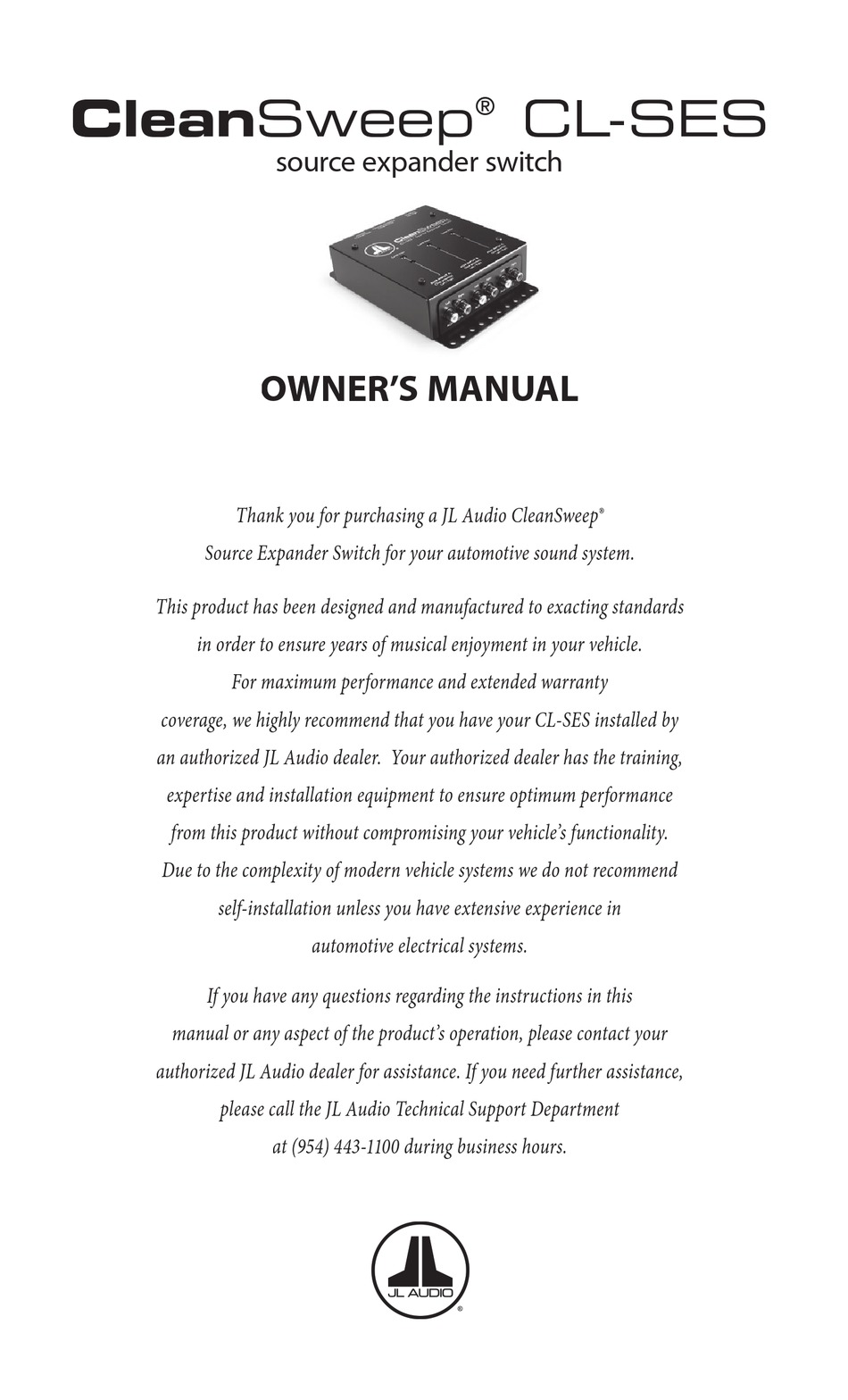

OWNER'S MANUAL
Thank you for purchasing a JL Audio CleanSwee ®
Thank you for purchasing a JL Audio CleanSweep
Thank you for purchasing a JL Audio CleanSweep
For maximum performance and extended warranty
automotive electrical systems.
at (954) 443-1100 during business hours.
CL-SES
L
L-SES
®
Advertisement
Table of Contents
Related Manuals for JL Audio CleanSweep CL_SES
Summary of Contents for JL Audio CleanSweep CL_SES
- Page 1 For maximum performance and extended warranty coverage, we highly recommend that you have your CL-SES installed by an authorized JL Audio dealer. Your authorized dealer has the training, expertise and installation equipment to ensure optimum performance from this product without compromising your vehicle’s functionality.
-
Page 2: Protect Your Hearing
Please limit your continuous exposure to high volume levels. While driving, operate your audio system in a manner that still allows you to hear necessary noises to operate your vehicle safely (horns, sirens, etc.). JL AUDIO CleanSweep ® CL-SES... -
Page 3: Installation Applications
• Do not mount this product in the engine compartment, under the vehicle, on the roof or in any other area that will expose it to the elements. JL AUDIO CleanSweep ® CL-SES... -
Page 4: Power Connections
This minimizes the possibility of noise in the system. A constant 12-volt connection is necessary for the CL-SES to “remember” the last selected source when used in the “manual” switching mode. JL AUDIO CleanSweep ® CL-SES... - Page 5 CHASSIS GR BLACK IGNITION / ACCESSOR IGNITION / ACCESSOR IGNITION / A CCESSORY CCESSOR MANUAL OVERRIDE PUSH BUTTON OEM INTERFACE PROCESSOR CE PROCESSOR CE PR HEADUNIT AUXILIARY INPUT UXILIARY INPUT UXILIAR AUDIO INTERCONNECT CABLE (not included) JL AUDIO CleanSweep ® CL-SES...
-
Page 6: Input Connections
“AUX INPUT C “ ” - Third Priority In manual mode, the CL-SES will “remember” the last AUX INPUT source selected when the vehicle is turned off and return to that source when the vehicle is restarted. JL AUDIO CleanSweep ® CL-SES... - Page 7 CL-SES, only use auxiliary inputs “B” & “C” to make your connections. Leave the RCA shorting-plugs that are shipped with your unit in “AUX INPUT A.” Use of these shorting plugs helps prevent noise and false-switching problems. JL AUDIO CleanSweep ® CL-SES...
- Page 8 These can also be adjusted to match the level of the CL-SES output to the head unit’s aux input so as to achieve equivalent audio level between the head unit’s sources and the auxiliary sources. JL AUDIO CleanSweep ® CL-SES...
-
Page 9: Parts List
THD + Noise: < 0.01% at 5.0 Vrms (20Hz - 20 kHz) Dimensions(LxWxH): 5.02 in. x 4.36 in. x 1.52 in. (128 mm x 111 mm x 39 mm) Due to ongoing product development, all specifications are subject to change without notice. JL AUDIO CleanSweep ® CL-SES... -
Page 10: Troubleshooting
“One source unit is much louder than the others.” Please use the level trim controls on that input to attenuate the level of the source that is too loud to match the other source units. JL AUDIO CleanSweep ® CL-SES... - Page 11 JL AUDIO CleanSweep ® CL-SES...
- Page 12 LIMITED WARRANTY - ELECTRONICS (USA) JL AUDIO warrants this product to be free of defects in materials and workmanship for a period of ninety (90) days from the original date of purchase. The warranty term is extended to two (2) years if installation is performed or approved by an authorized JL AUDIO dealer (proof of installation or approval required on purchase receipt).
