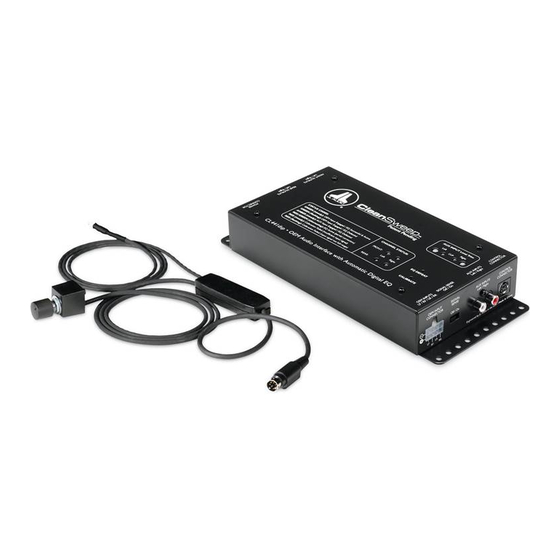

CleanSweep™ CL441dsp
OEM Interface / Processor

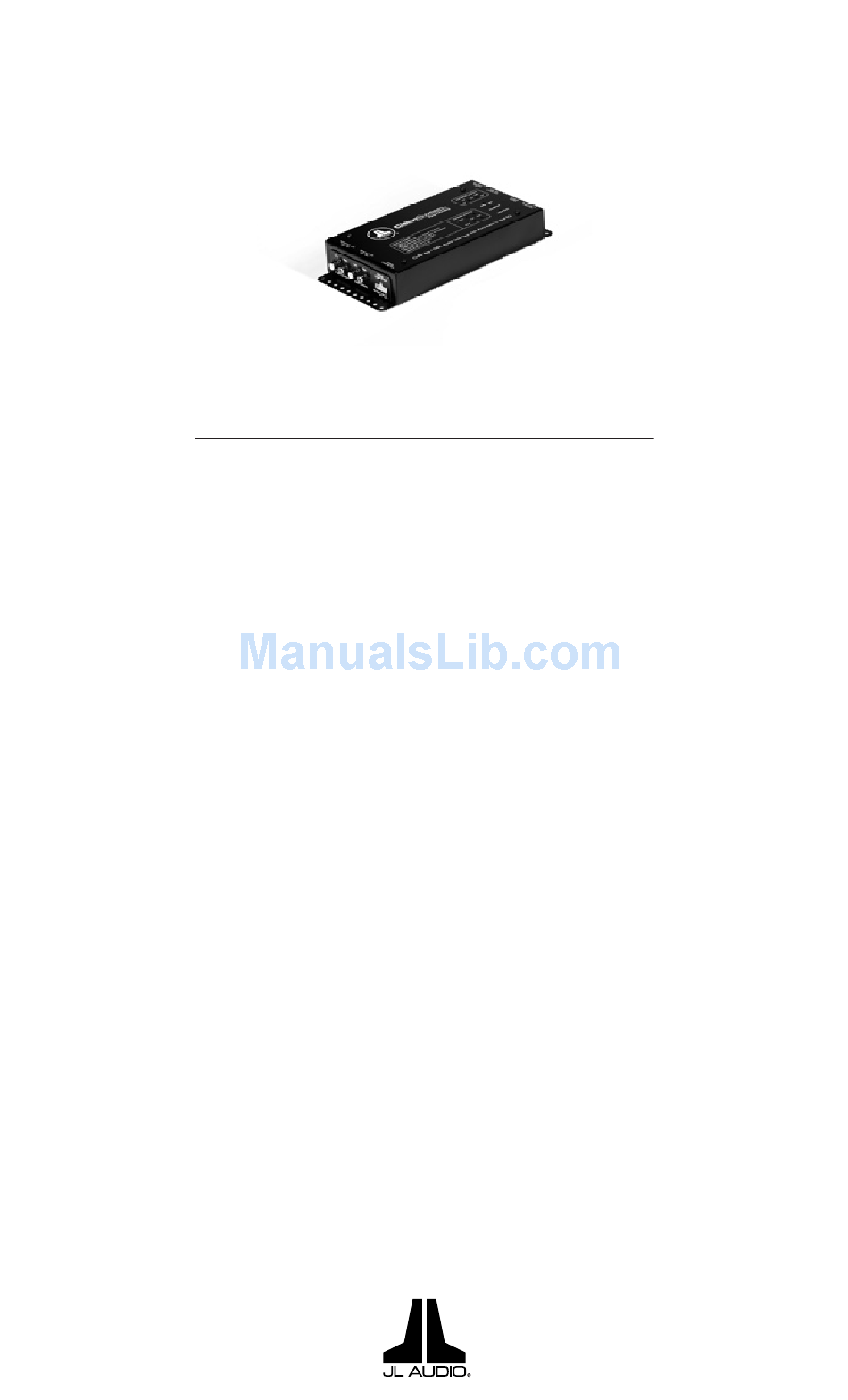

o w n e r ' s m a n u a l
Thank you for purchasing a JL Audio CleanSweep™
OEM interface / processor for your automotive sound system.
This product has been designed and manufactured to exacting
standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance and extended warranty
coverage, we highly recommend that you have your CL441dsp
installed by an authorized JL Audio dealer. Your authorized
dealer has the training, expertise and installation equipment to ensure
optimum performance from this product without compromising
your vehicle's functionality. Due to the complexity of modern vehicle
systems we do not recommend self-installation unless you have
extensive experience in automotive electrical systems.
If you have any questions regarding the instructions in this
manual or any aspect of the product's operation, please contact
your authorized JL Audio dealer for assistance. If you need further
assistance, please call the JL Audio Technical Support Department at
(954) 443-1100 during business hours (Eastern Time Zone).
Advertisement
Table of Contents
Summary of Contents for JL Audio ClenSweep CL441 dsp
- Page 1 If you have any questions regarding the instructions in this manual or any aspect of the product’s operation, please contact your authorized JL Audio dealer for assistance. If you need further assistance, please call the JL Audio Technical Support Department at...
-
Page 2: Installation Applications
• Do not mount this product in the engine compartment, under the vehicle, on the roof or in any other area that will expose it to the elements. JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... -
Page 3: Product Overview
12-volt trigger, if the OEM system the “Calibrate” button on the top of the provides one. CL441dsp processor. Approximately 20 seconds later, the processor is finished analyzing and equalizing the factory-installed source’s response and stores the corrections in non-volatile flash memory. JL AUDIO CleanSweep™ CL441dsp... -
Page 4: Power Connections
These are located next to the “Power Connector” and are clearly labeled for each channel. Think of them as your new head unit outputs. JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... - Page 5 OUTPUT AND POWER CONNECTION DIAGRAM JL AUDIO CleanSweep™ CL441dsp...
-
Page 6: Aux Input Connections
If only two-channels of full-range audio are available from the OEM system, the CL441dsp can be used with only two channels connected (and will only output two channels of audio). JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... - Page 7 INPUT AND CONTROL CONNECTION DIAGRAM JL AUDIO CleanSweep™ CL441dsp...
-
Page 8: Master Volume Control
Once the LED and Master Volume Control are mounted, connect the Master Volume Control harness to the “CONTROL CONNECTOR” port on the CL441dsp main processor. If the cable length is insufficient, use the supplied extension cable. JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... - Page 9 If you do not see steady green lights, refer to the “Channel Status Codes” section on Page 11 for troubleshooting. JL AUDIO CleanSweep™ CL441dsp...
- Page 10 (like OnStar®), navigation systems, and door chimes on some vehicles are examples of such functions. If these functions are important to your current driving situation, do not use the AUX input. JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp...
- Page 11 “EQ DEFEAT” error code only exists on one channel pair. button). To exit this mode manually, press the “EQ DEFEAT” button again. JL AUDIO CleanSweep™ CL441dsp...
-
Page 12: Parts List
(1) Black Knob for Master Volume Control (1) Silver Metallic Knob for Master Volume Control (1) Power connection harness with plug (1) OEM input connection harness with plug (4) sheet metal mounting screws (1) CleanSweep™ Calibration CD JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... -
Page 13: Specifications
DIMENSIONS: (LxWxH): 9.72 in. x 4.37 in. x 1.54 in. (247 mm x 111 mm x 39 mm) Due to ongoing product development, all specifications are subject to change without notice. U.S. and International Patents Pending JL AUDIO CleanSweep™ CL441dsp... -
Page 14: Installation Notes
INSTALLATION NOTES JL AUDIO CleanSweep™ CL441dsp JL AUDIO CleanSweep™ CL441dsp... - Page 15 INSTALLATION NOTES JL AUDIO CleanSweep™ CL441dsp...
- Page 16 LIMITED WARRANTY - ELECTRONICS (USA) JL AUDIO warrants this product to be free of defects in materials and workmanship for a period of ninety (90) days from the original date of purchase. The warranty term is extended to two (2) years if installation is performed or approved by an authorized JL AUDIO dealer (proof of installation or approval required on purchase receipt).
