JL AUDIO 13W3v3-2 / 13W3v3-4 / 13W3v3-8

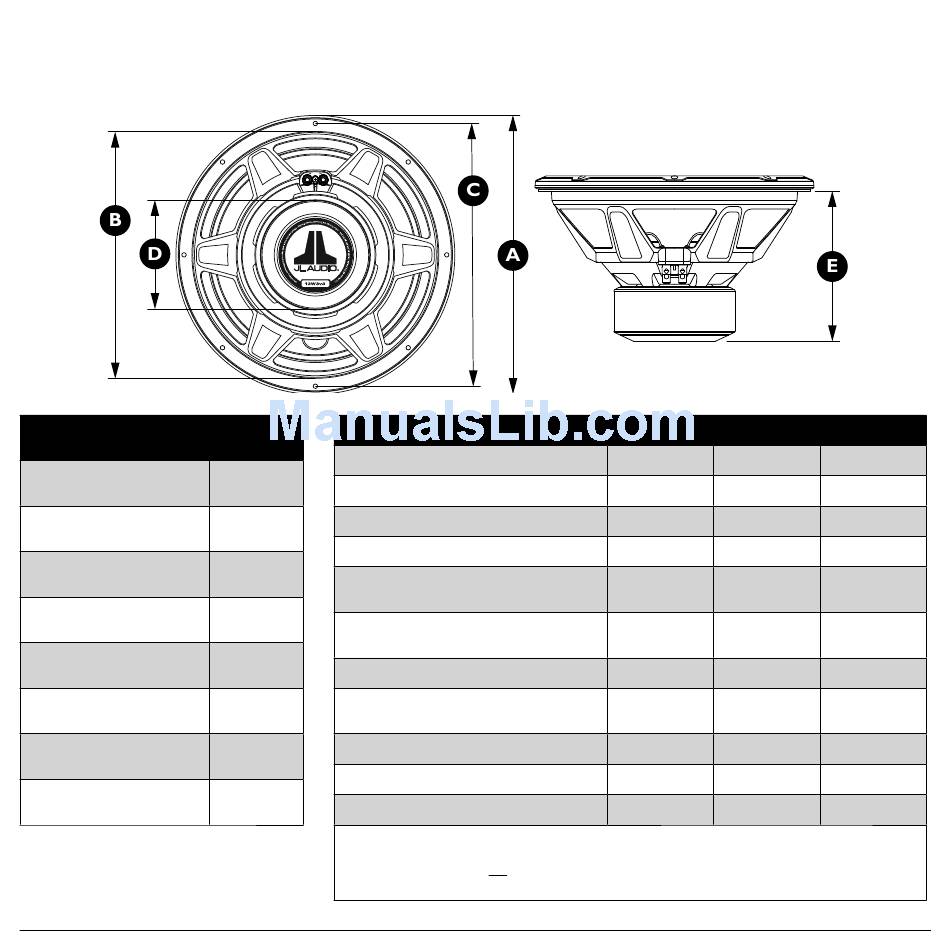

13W3v3 SUBWOOFER PHYSICAL
SPECIFICATIONS
Nominal Diameter:
Overall Diameter (A):
Mounting Hole Diameter (B):
Bolt Hole Circle (C):
Magnet Diameter (D):
Mounting Depth (E):
Net Weight:
Driver Displacement:
2
U.S. PATENTS: #5,734,734 #6,501,844 #6,219,431 #D480,709 Other U.S. & Foreign patents pending.
13.5 in.
343 mm
14.0 in.
356 mm
12.5625 in.
319 mm
13.2 in.
335 mm
5.79 in.
147 mm
7.63 in.
194 mm
17.75 lbs.
8.05 kg
0.096 ft³
2.72 litres
* Xmax specifications are derived via one-way voice coil overhang method with
no correction factors applied.
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer's output capability and should
not be used as a comparison to other subwoofers to determine which one is "louder" !
SUBWOOFER
Free Air Resonance (Fs): 24.70 Hz
Electrical "Q" (Qes): 0.544
Mechanical "Q" (Qms): 6.936
Total Speaker "Q" (Qts): 0.504
Equivalent Compliance (Vas):
One-way, Linear Excursion (Xmax)*:
Efficiency (1W/1m)**: 87.63 dB SPL
Effective Piston Area (Sd):
DC Resistance (Re): 1.659 ohm
Nominal Impedance: 2 ohm
Power Handling (continuous): 600W
JL AUDIO 13W3v3-2/13W3v3-4/13W3v3-8
13W3v3-2 13W3v3-4
23.66 Hz
0.465
6.774
0.435
4.635 ft³ 4.793 ft³
131.26 litres 135.74 litres
0.610 in. 0.610 in.
15.5 mm 15.5 mm
87.90 dB SPL
103.850 in² 103.850 in²
0.0670 m² 0.0670 m²
3.569 ohm
4 ohm
600W
13W3v3-8
24.39 Hz
0.549
6.310
0.505
4.600 ft³
130.27 litres
0.610 in.
15.5 mm
87.39 dB SPL
103.850 in²
0.0670 m²
7.717 ohm
8 ohm
600W
